SAFETY FENCE FOR ROBOTICS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 6, 2008
app pub date -
Sep 5, 2006
filing date -
Sep 5, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

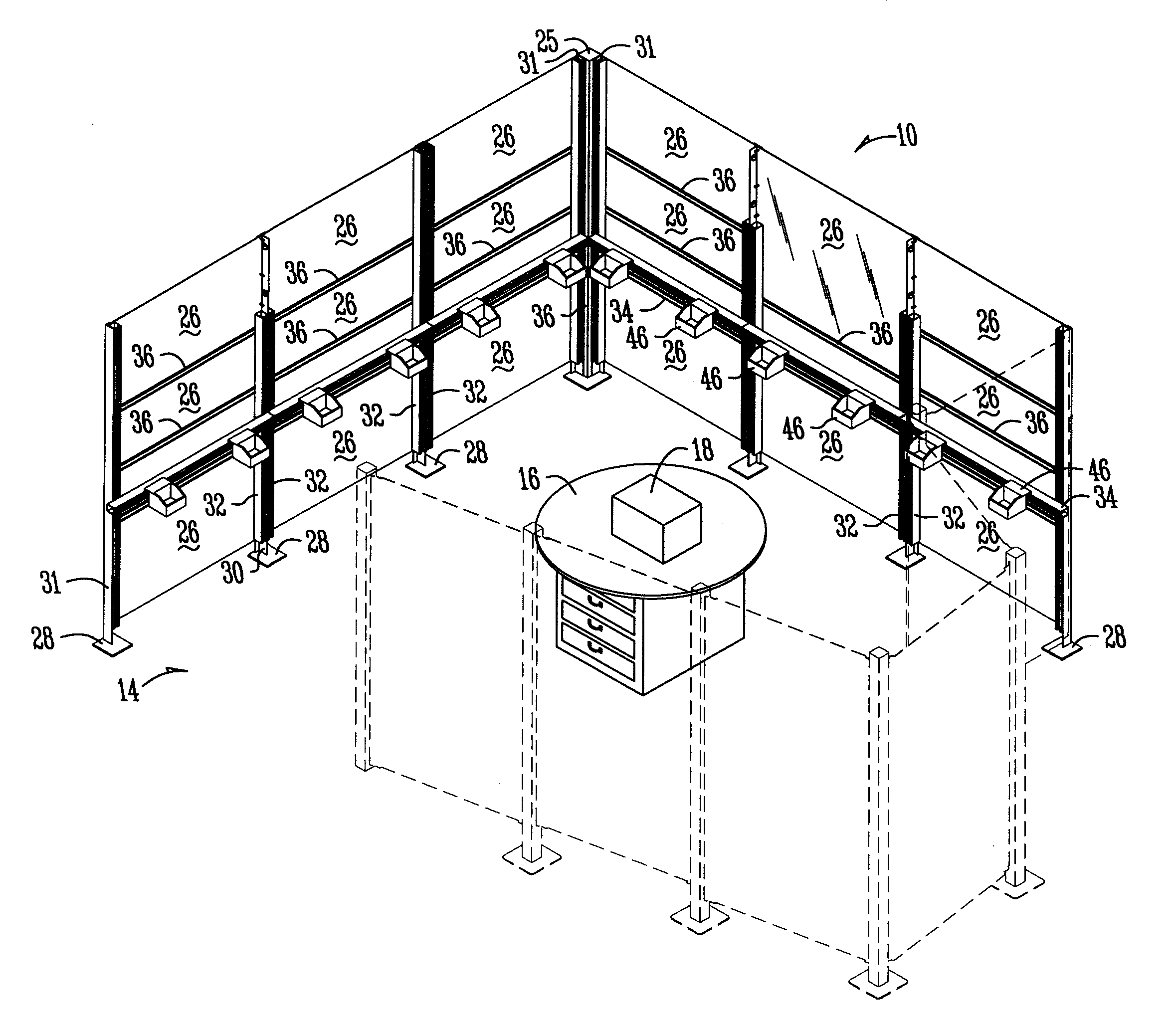

An improved safety fence for constructing a flexible workcell is provided with a fence end having at least one T-shaped post including a plurality of elongated support pins mounted along a first flange on the post and at least one cam lock mounted along a second perpendicular flange on the post for securing a panel member to the fence end. The fence can be quickly and easily assembled and disassembled, such that the workcell is portable and extremely flexible. The adjoining edges of the panel members are secured and sealed together using an H-shaped extrusion member. The fence includes stiffening ribs between posts to mount part bins and receive cabling, wiring, and tubing for work functions within the workcell.
First Claim
Other Claims data not available
