STEREOMICROSCOPE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 14, 2008
app pub date -
Aug 8, 2007
filing date -
Aug 9, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

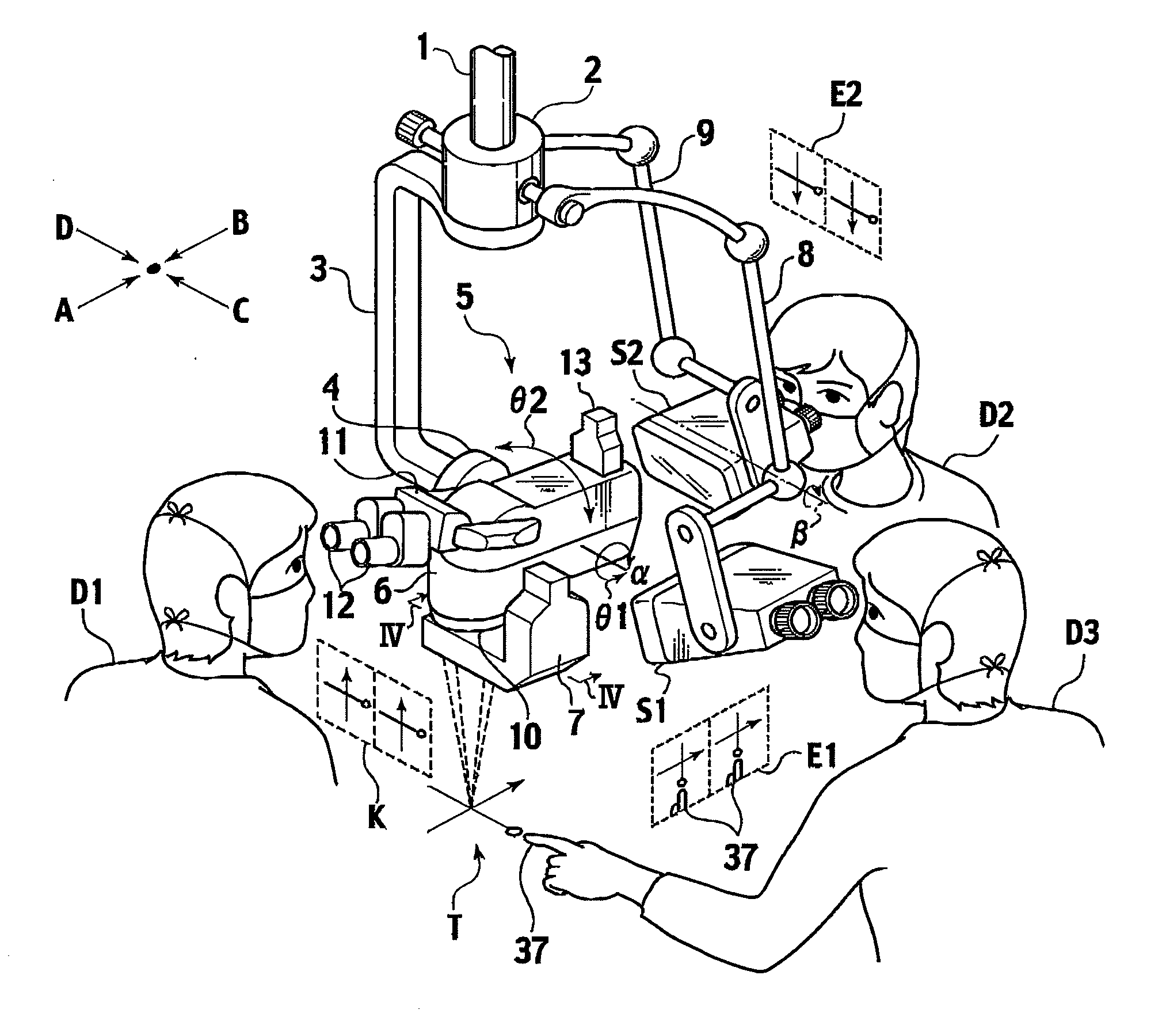

A stereomicroscope includes a microscope main body and a camera for assistant. The microscope main body includes therein an objective optical system, a zoom optical system and an eyepiece optical system. The camera for assistant is detachably mounted to the microscope main body. The microscope main body provides to a main operator a pair of optical images including a certain binocular disparity as viewed from an observation direction of the main operator. The camera for assistant provides to an assistant a pair of electron images including a certain binocular disparity as viewed from an observation direction of the assistant. The observation directions of the main operator and the assistant cross at a certain angle. The camera for assistant outputs the pair of electron images into a stereo viewer which is separated from the microscope main body.
First Claim
Other Claims data not available
