METHOD FOR CUTTING A TUBE SECTION INTO LENGTHS AS WELL AS TUBE SECTION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 24, 2008
app pub date -
Jul 11, 2007
filing date -
Jul 19, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

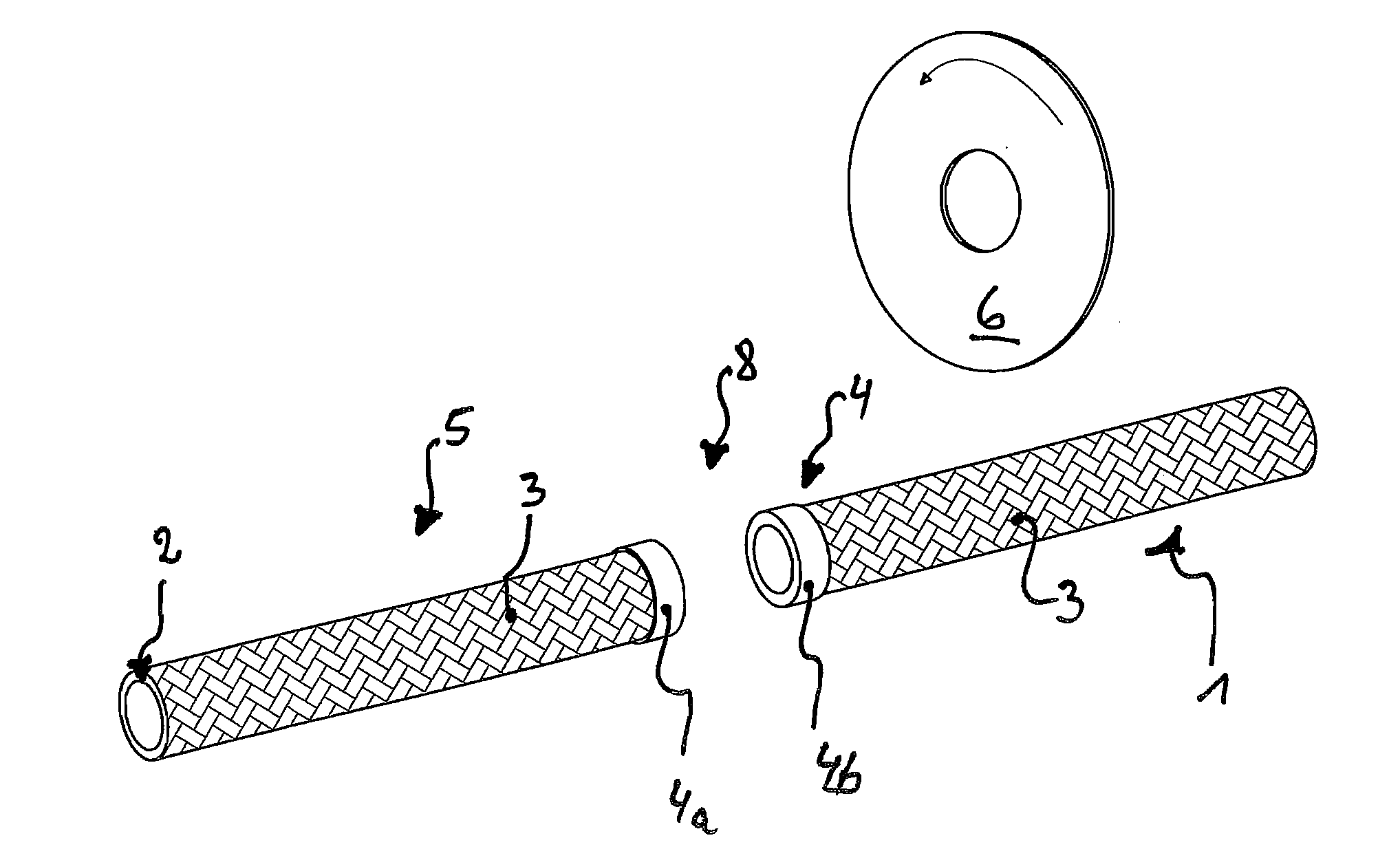

The invention relates to a method for sizing a tube section (5) of a tube (1), with the tube (1) including an inner tube (2) and an outer tube (3) covering the inner tube (2). The tube section (5) is separated with the help of a cutting tool (6) at a cutting site (8) in a cutting plane aligned perpendicular to a longitudinal extension of the tube (1). For the method according to the invention, the tube cover (3) of the tube (1) is wrapped by a tube fixation (4), for example an adhesive tape, which covers the intended cutting site, before the tube section (5) is separated from the tube (1) at the cutting site (8) with the help of a cutting tool (6). The tube fixation (4) does not only mark the intended cutting site but also counteracts a fraying of the tube cover (3) at the cutting site (8), comprising a metal and/or plastic web.
First Claim
Other Claims data not available
Family
