ROLLER SKATE ASSEMBLY WITH BRAKING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 20, 2007
app pub date -
Jun 8, 2007
filing date -
Jun 16, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

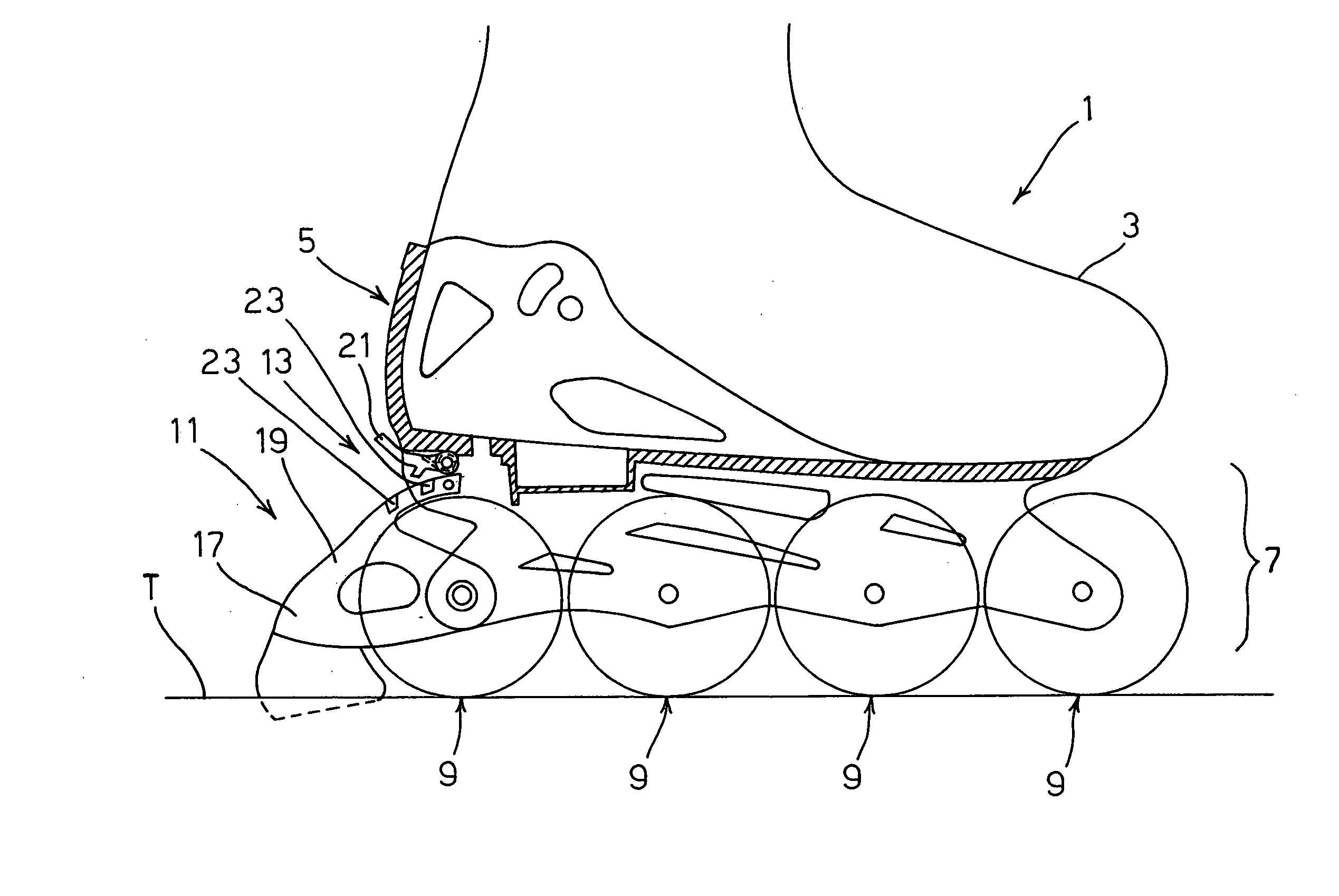

The skate assembly includes a bogie frame including a brake pad, a pad support and a wear compensation system. Such a system includes an articulation, enabling the pad support to be lifted relative to the rest of the frame, and a movable locking lever. During braking, the lever is fastened into the slots provided for fastening the lever. When the pad has worn out, the user can unlock the lever and rotate the support so as to bring again the pad close to the ground. In this way, notwithstanding the wear of the pad, the need for excessively tilting the skate for braking is avoided. The adjustment system is very simple from the manufacturing standpoint, and is easy and quick to lock.
First Claim
Other Claims data not available
