Method for the creation of panoramic tomographic images, and X-Ray image acquisition device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 6, 2007
app pub date -
Apr 5, 2007
filing date -
Apr 6, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

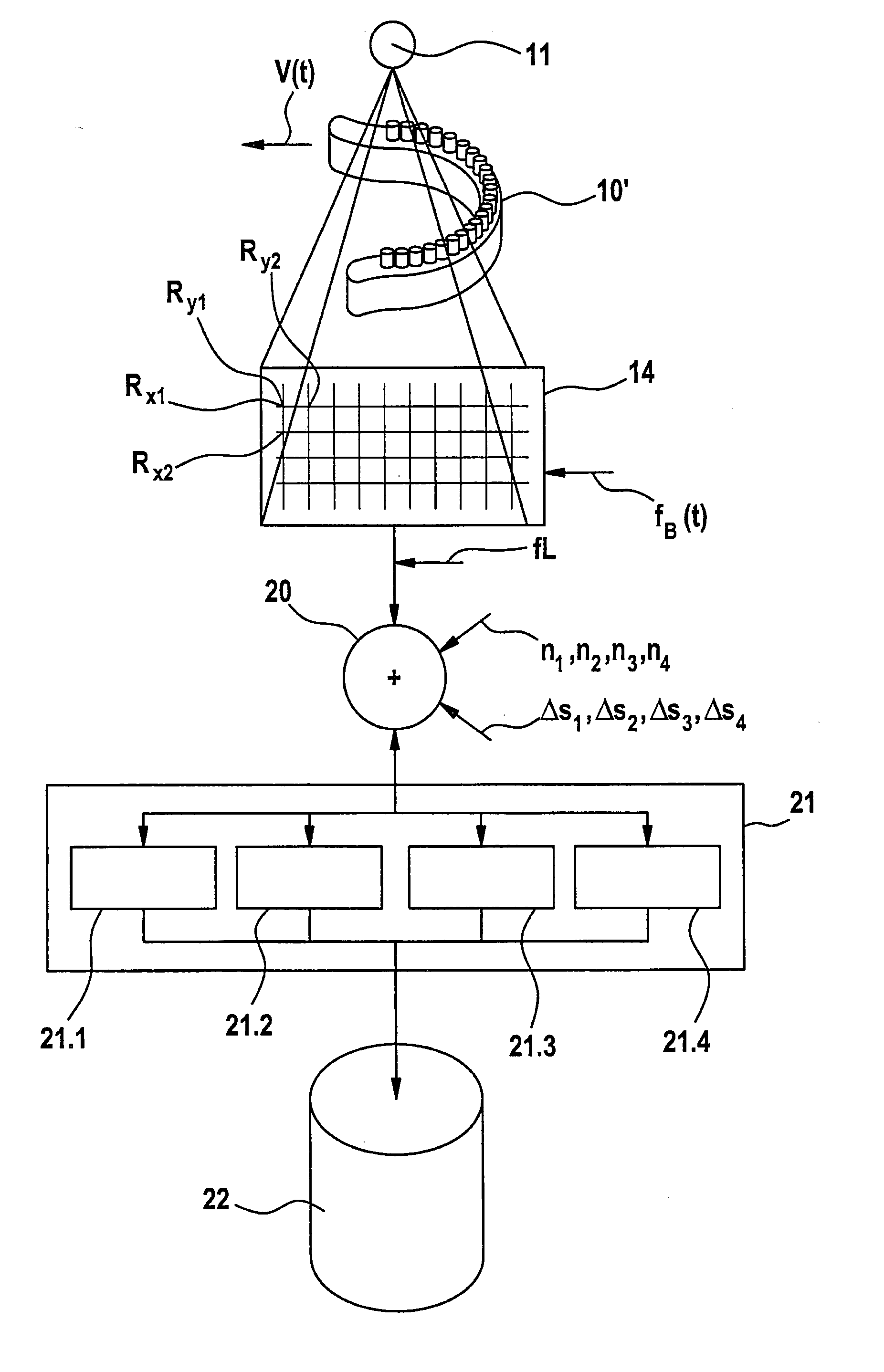

The invention relates to a method for the creation of a panoramic tomographic image of an object (10) by means of X-rays, in which a digital X-ray-sensitive image detector (14) is moved relatively to the object to be X-rayed (10) and image data of the object (10), for a first layer (15) of the object (10) are summated to a first storage area (21.1), wherein the summation is carried out after a predefined first time interval (.DELTA.t.sub.1) with a predefined first line offset (.DELTA.s.sub.1). Image data for a second layer (16) of the object (10) are summated to a second storage area (21.2), which summation is performed after a predefined second time interval (.DELTA.t.sub.2) with a predefined second line offset (.DELTA.s.sub.2). The invention further relates to a digital X-ray image acquisition device (1) for the creation of panoramic tomographic images of an object (10), comprising an X-ray-sensitive image detector (14), a first and second storage area (21.1, 21.2) for storing data, and a first and second linker (20.1, 20.2) for linking image data.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 18 Age
