Powder Coating System
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 22, 2007
app pub date -
Nov 18, 2004
filing date -
Nov 20, 2003
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

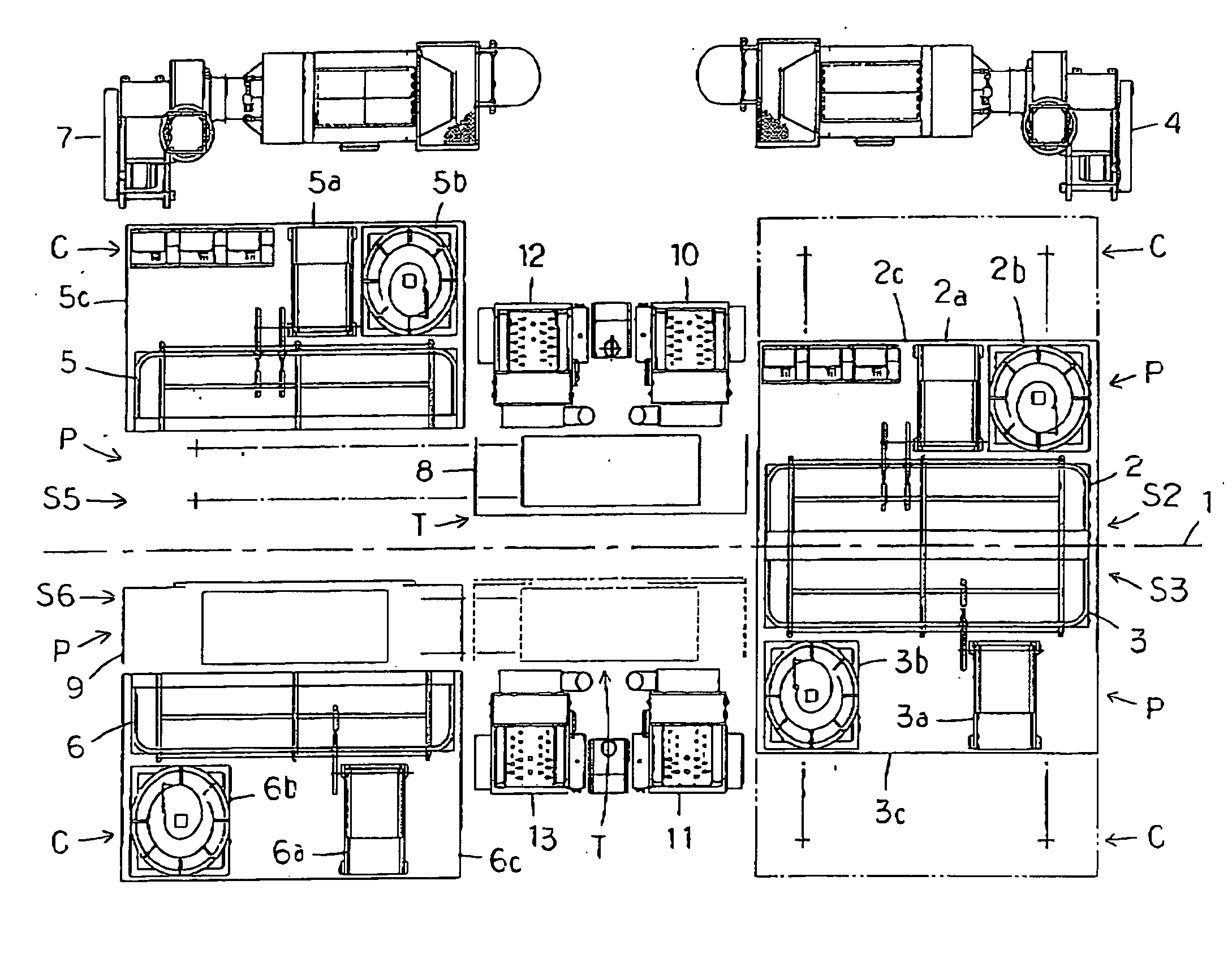

First divided booths 2 and 3 are moved to coating positions 2 to form a coating booth and an article to be coated carried by a carrying device is coated in the coating booth. Second divided booths 5 and 6 are retracted to cleaning positions C and cleaning booths 8 and 9 are moved from retracted positions T to operating positions S5 and S6 to cover the openings of the divided booths 5 and 6, and then cleaning is performed in this state. After the cleaning is completed, the cleaning booths 8 and 9 are returned to the retracted positions T, and the second divided booths 5 and 6 are moved to the coating positions P to form a second coating booth. After the coating by the first divided booths 2 and 3 is completed, the first divided booths 2 and 3 are retracted from the coating positions e to the cleaning positions C, the cleaning booths 8 and 9 are moved from the retracted positions T to the operating positions S2 and S3, and the cleaning is performed to ready for a next color change.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
NIHON PARKERIZING CO LTD | 15-1 NIHONBASHI 1-CHOME CHUO-KU TOKYO 103-0027 |
International Classification(s)

- 2004 Application Filing Year
- B05B Class
- 661 Applications Filed
- 281 Patents Issued To-Date
- 42.52 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Kumata, Mitsuyoshi | Tokyo, JP | 3 | 17 |
# of filed Patents : 3 Total Citations : 17 | |||
Nakamura, Akira | Tokyo, JP | 310 | 3171 |
# of filed Patents : 310 Total Citations : 3171 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- B05B Class
- 4.94 % this patent is cited more than
- 18 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.
