COMBINED VALVE, FILTER, AND REGULATOR IRRIGATION APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 29, 2007
filing date -
Oct 19, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

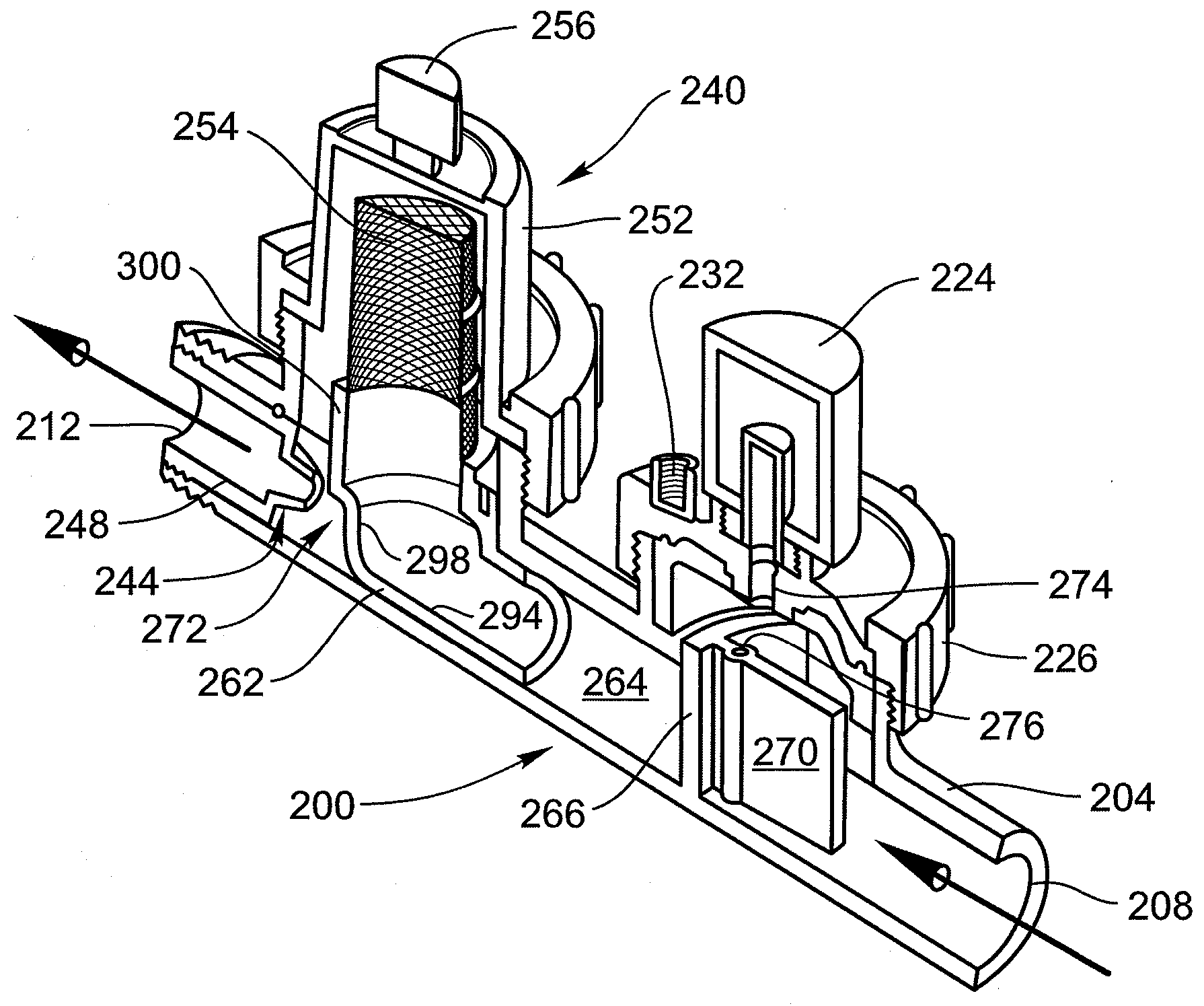

A singular combination irrigation apparatus may be used to combine the function of a regulator, valve, and filter into a singular combination, rather than merely connecting the three separate devices together. The irrigation apparatus may include a unitary manifold through which water may flow. This unitary manifold may include a valve-receiving portion and a filter-receiving portion. The valve-receiving portion is positioned upstream of the filter-receiving portion. The irrigation apparatus also includes a filter assembly secured to the filter-receiving portion. The irrigation apparatus further includes a valve secured to the valve-receiving portion. The manifold may also be manufactured or molded as a single, unitary piece.
First Claim
Other Claims data not available
