Selective reaction method for isolating metallic nitride fullerenes using amine chemistry
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 8, 2007
app pub date -
May 5, 2006
filing date -
May 5, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

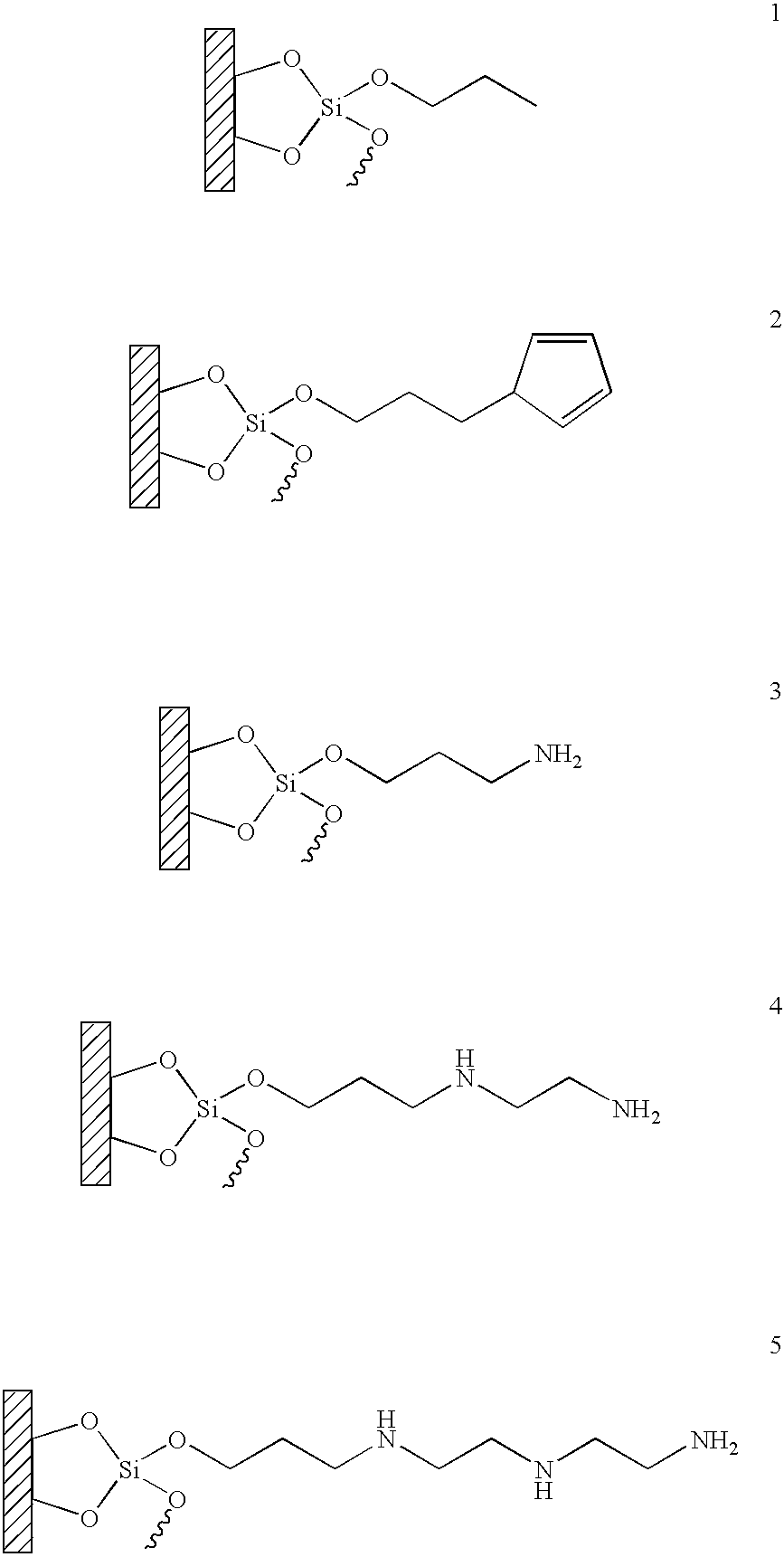

The present invention is directed to a novel method for isolating fullerenes. In a preferred embodiment, the process purifies metallic nitride fullerenes from non-metallic nitride fullerenes by mixing a solution containing metallic nitride fullerenes with a functionalized silica gel, allowing the mixture to react for an amount of time effective to immobilize non-metallic nitride fullerenes on said gel, and filtering the silica gel to obtain a filtrate containing purified metallic nitride fullerenes separated from other more abundant fullerenes like empty cage fullerenes and classical metallofullerenes. The mixture of fullerenes is added to the silica gel and stirred and filtered, thus separating the fullerenes/silica gel (top of filter) from the filtrate (bottom solution) containing only MNFs. In another embodiment, the process purifies C.sub.60 empty cage fullerenes from other empty cage fullerenes with a functionalized silica gel by mixing a solution containing C.sub.60 and other empty cage fullerenes with a functionalized silica gel, allowing the mixture to react for an amount of time effective to immobilize the non-C.sub.60 fullerenes on said gel, and filtering the silica gel to obtain a filtrate containing purified C.sub.60 fullerene separated from other empty cage. This newly developed 'Stir and Filter Approach' (SAFA) technique permits purified fullerene samples at ambient or reflux conditions.
First Claim
Other Claims data not available
