FURNITURE HINGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 1, 2007
app pub date -
Apr 19, 2007
filing date -
Apr 26, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

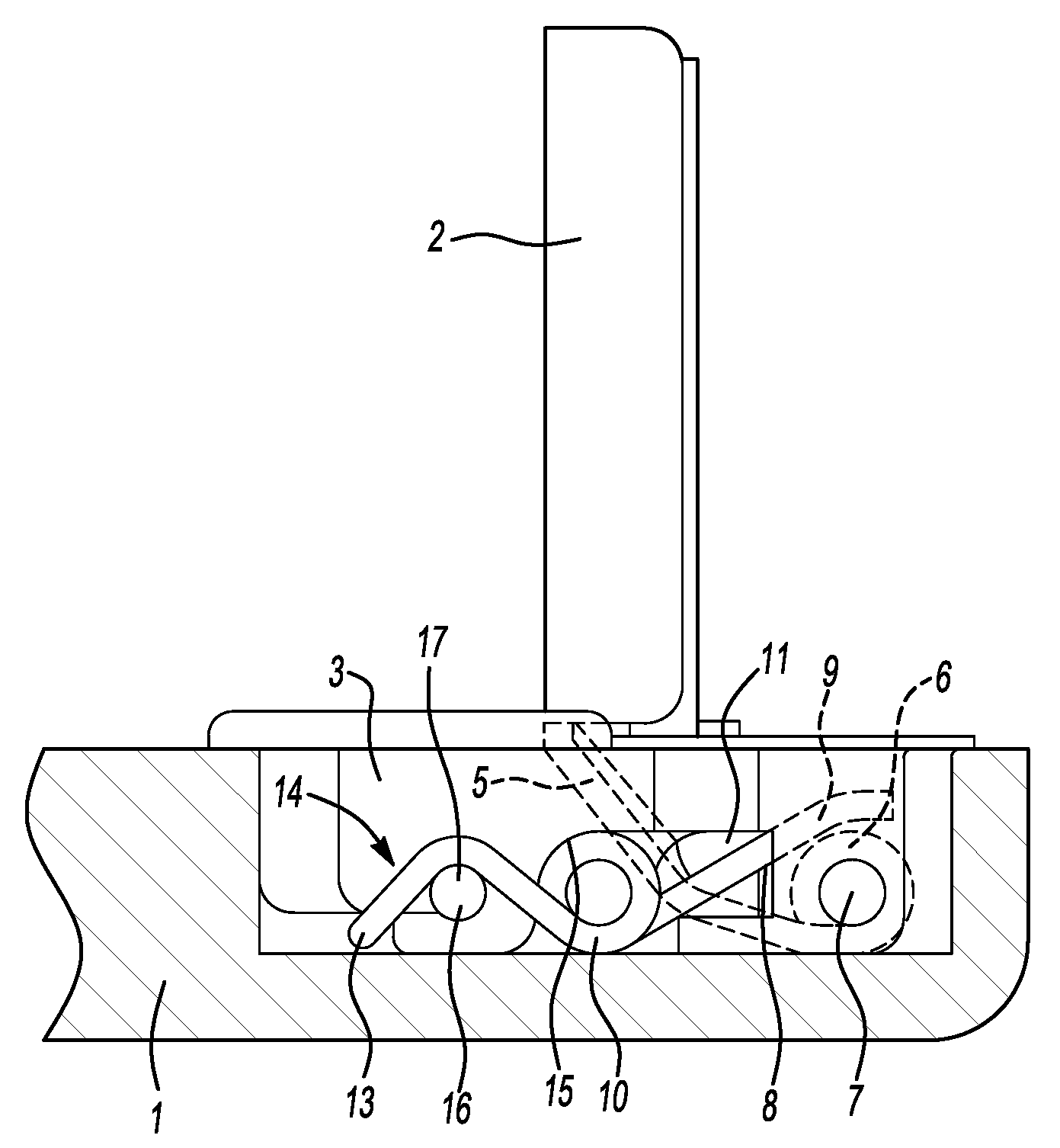

An example furniture hinge a door fitting including a recessed cup, a hinge pin, a carrier arm, and a hinge knuckle adjacent said hinge pin and pivotably attaching the carrier arm to an interior portion of said recessed cup. At least two spring legs extend from at least two spring coils and press against a cam on either side of the hinge knuckle. The spring legs have a first portion outside the recessed cup and a second portion supported by the recessed cup. A spring bow joins the spring legs and is positioned outside the recessed cup. A retaining pin extending from the recessed cup holds each of the spring legs, and a surface of said recessed cup supports the spring coils.
