Roller apparatus for sheet folding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 27, 2007
app pub date -
Mar 23, 2007
filing date -
Mar 24, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

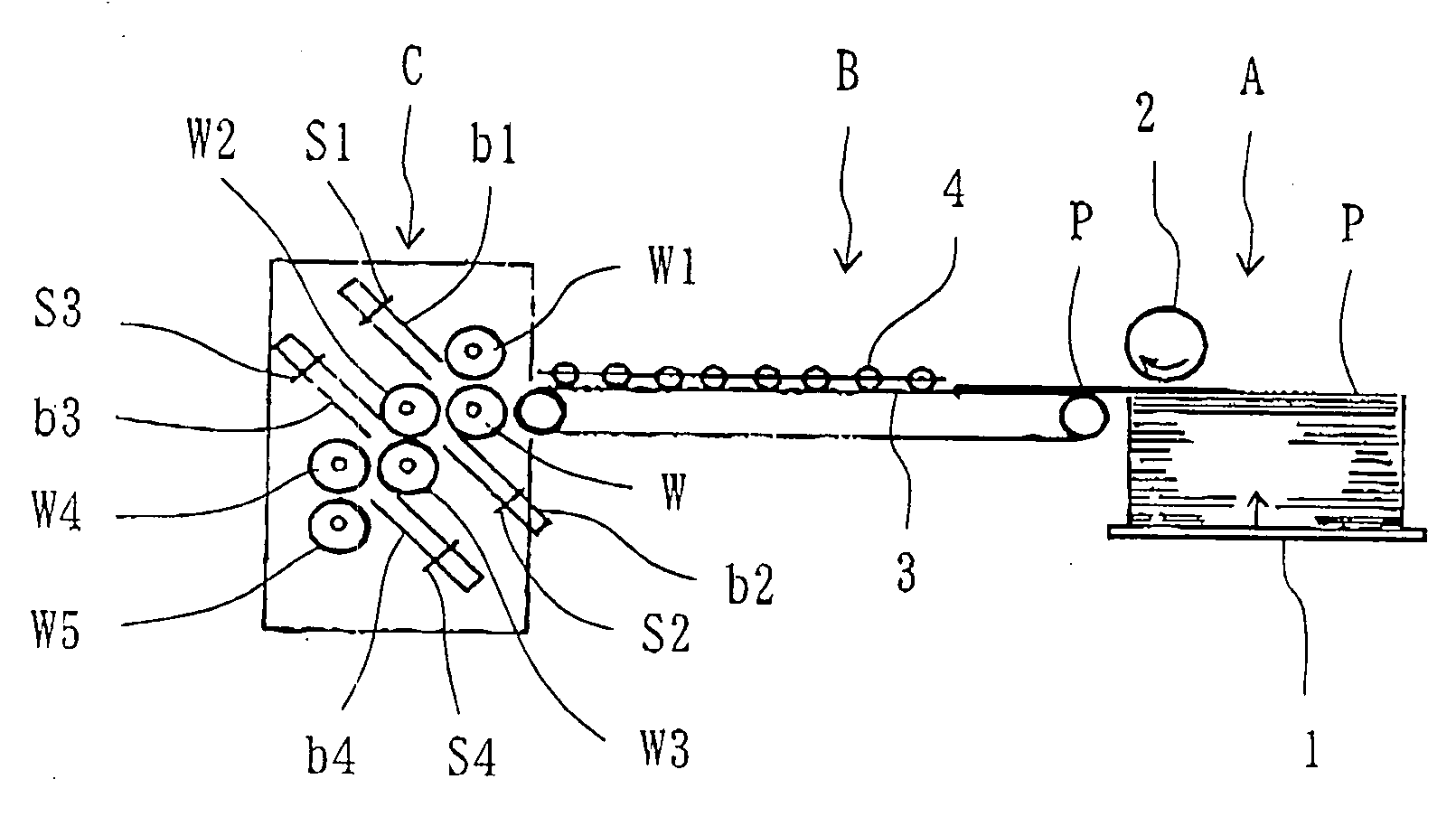

There are provided a pair of rollers (W, W1; W, W2; W2, W3; W3, W4) for taking a sheet in a buckle zones (b1-b4), and a pair of rollers (W, W2; W2, W3; W3, W4; W4, W5) for folding a portion of the sheet deflecting from the buckle zones (b1-b4). A rotating shaft of at least one of the rollers of each of the roller pairs is carried by one end of a lever (6). The lever (6) is arranged for swing around a supporting point (8), and the other end of the lever (6) is provided with a spring resiliently biasing the roller carried by the lever (6) in a direction in which the roller is pressed against the counter roller. One end of an adjustment rod (15a-15e) is brought into contact with the other end of the lever (6). The adjustment rod (15a-15e) is guided by a guide (14) in a direction of its axis. The other end of the adjustment rod (15a-15e) is provided with a pulse motor (M1-M5) moving the adjustment rod (15a-15e) through the guide (14). The pulse motor (M1-M5)is driven, whereby the adjustment rod (15a-15e) is moved so as to swing the lever (6), and the gap length between the opposed rollers is adjusted.
