Bound book having hardcover and method of making same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 20, 2007
app pub date -
Mar 6, 2006
filing date -
Mar 6, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

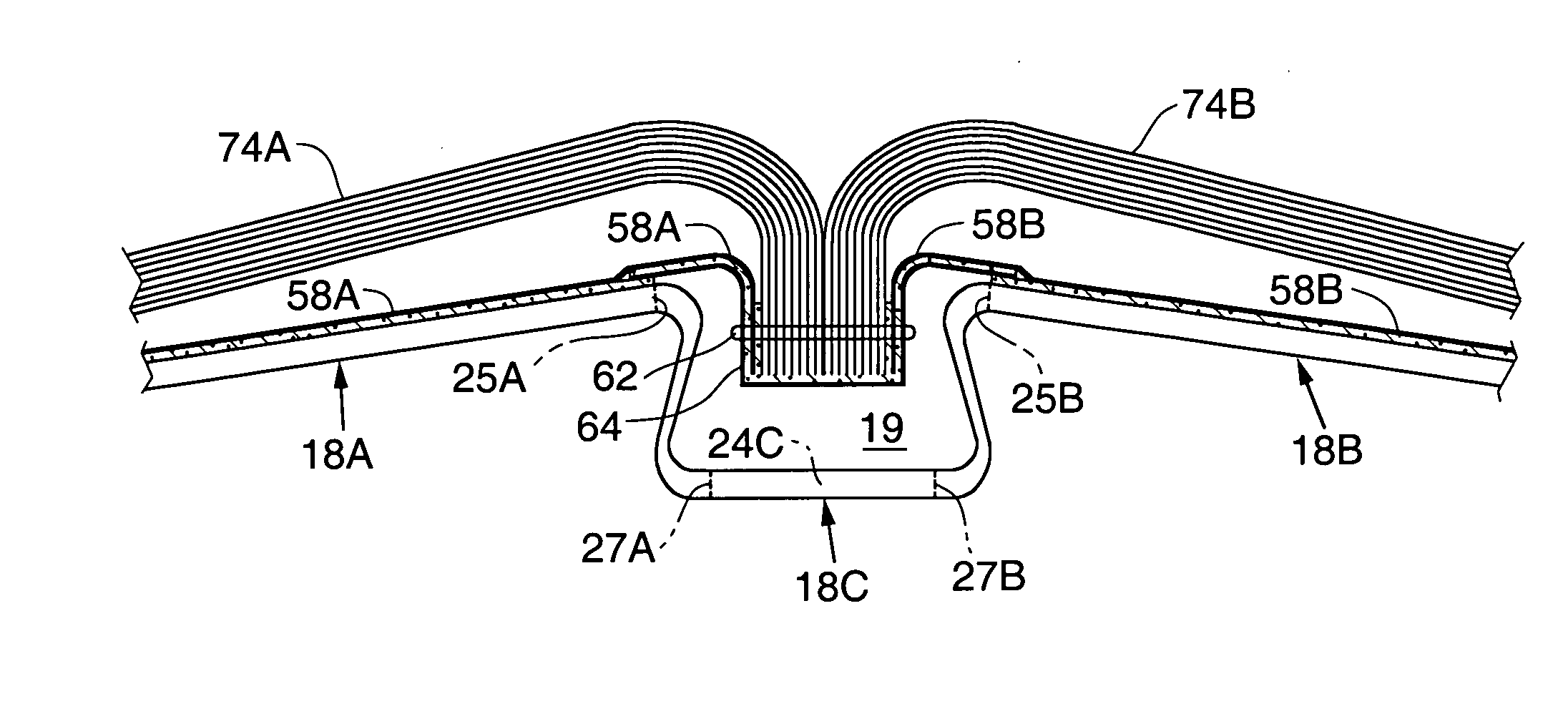

A stitched hardcover book and method of making same wherein the stitching is at least partly concealed. A stack of sheets to be bound is disposed intermediate first and second end leafs, with each of the end leafs including an attached reinforcing strip extending along an edge of the end leaf. The combined assembly is provided with stitching which extends through the stack and the reinforcing strips. The first and second end leafs are secured to an inner surface of respective first and second covers of a hardcover assembly, with the components of the hardcover book being configured such that when the first and second cover sections are positioned in a common plane, a bound end of the sheets of the stack is disposed on a first side of the common plane, with the sheets extending to an opposite second side of the common plane and with the stitching line being disposed on said first side of the plane. The reinforcing strips tend to ensure this configuration so that the stitching is substantially concealed from view.
First Claim
Other Claims data not available
