Lip retention structure of molded part in weather-strip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 13, 2007
app pub date -
Mar 8, 2007
filing date -
Mar 13, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

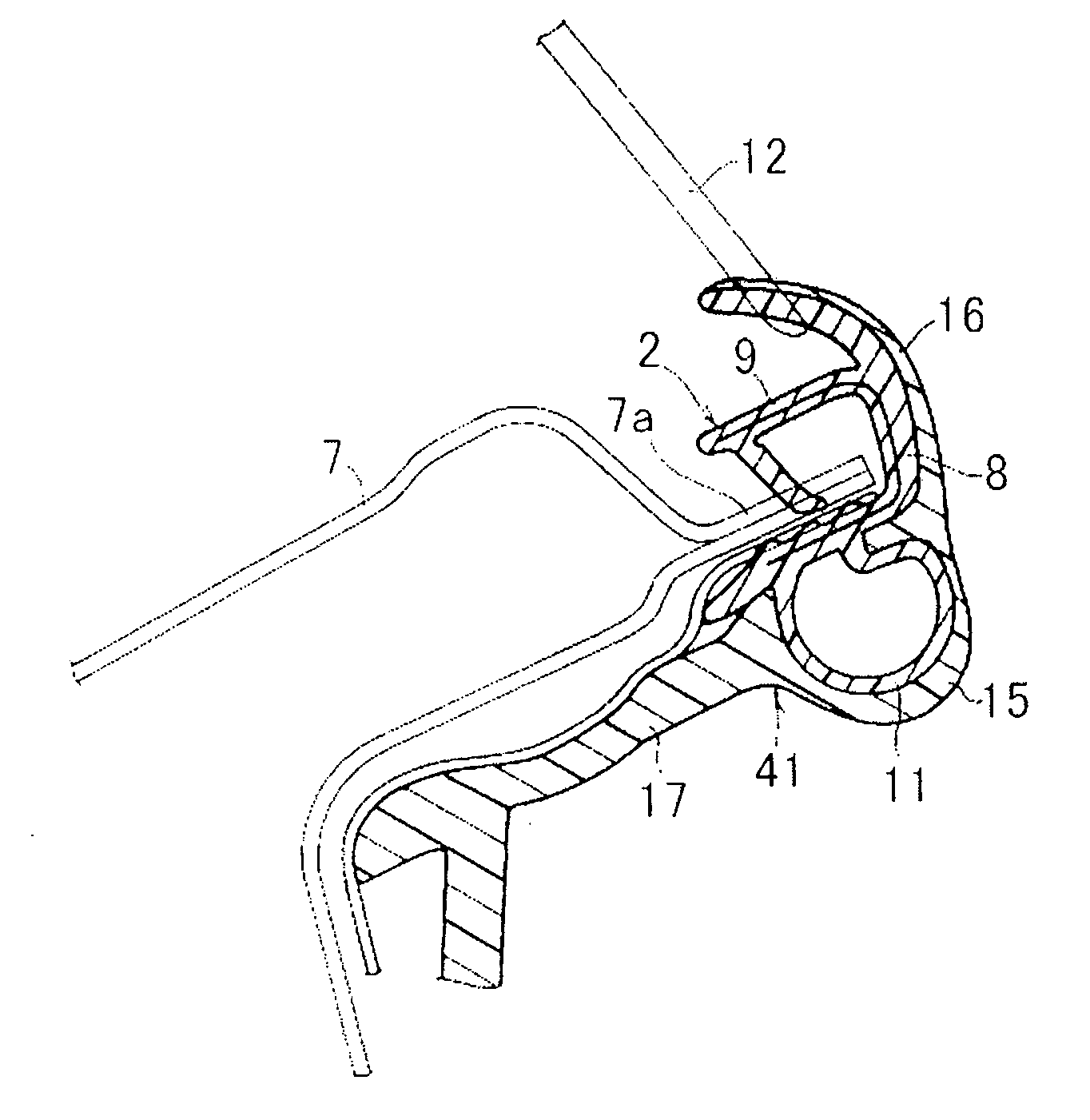

In a molded part composed of a seal, which is integrally formed at the lower end of a weather-strip mounted to a front pillar of an open-top car, and which covers the upper end of the seal of an inner seal mounted to the body at the lower side and joined, and a seal lip that makes flexible contact with an interior trim, a retainer with an L-shaped cross-section is integrally formed on the rear surface of the lip, and this retainer abuts the flange of the body panel; concurrently, it abuts the interior trim from the rear surface, whereby the lip base is supported, and when a door is closed and the seal of the molded part is compressed, floating of the end of the lip from the interior trim 12 is restricted.
First Claim
Other Claims data not available
