TIP FOR ORAL IRRIGATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 30, 2007
app pub date -
Feb 27, 2007
filing date -
Feb 27, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

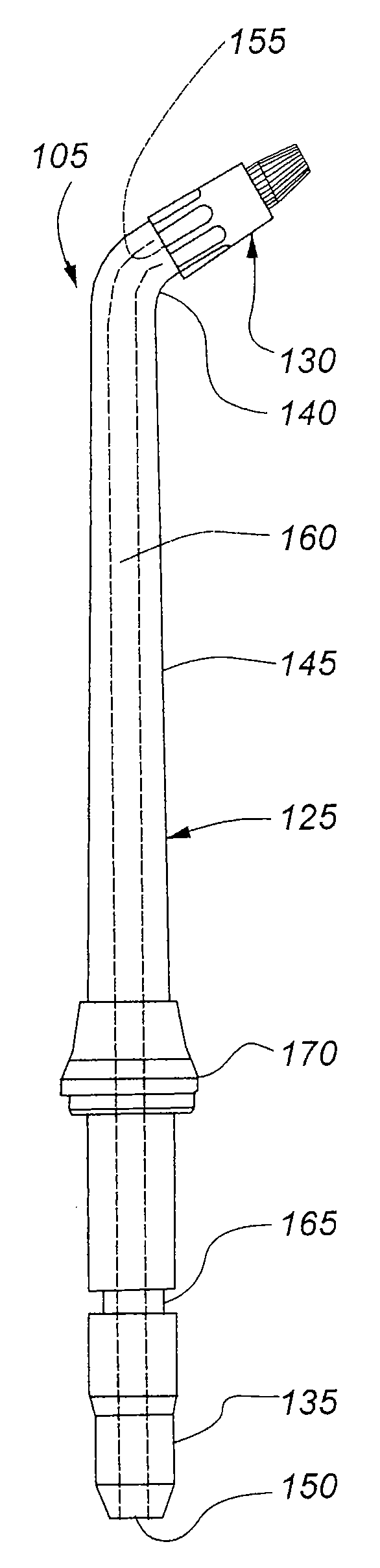

A oral irrigator tip for an oral irrigator. The oral irrigator tip may include a shaft portion with a base, an apex, and a transitional portion linking the base to the apex. The shaft portion may be straight or angled. The shaft portion may be hollow from the base to the apex to define a fluid passage, thus permitting fluid to flow along the shaft portion. A retaining feature may be formed on the shaft portion to facilitate retention of the oral irrigator tip by an oral irrigator. A connector may join a nozzle to the shaft portion. Attached to the connector may be a bristle element, which may include multiple individual bristles glued or otherwise affixed to the connector. The bristles may be arranged in a circular pattern; water may flow around the individual bristles or through the center of the bristles.
First Claim
Other Claims data not available
