FLIP-CHIP LED PACKAGE AND LED CHIP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 30, 2007
app pub date -
Feb 26, 2006
filing date -
Feb 26, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

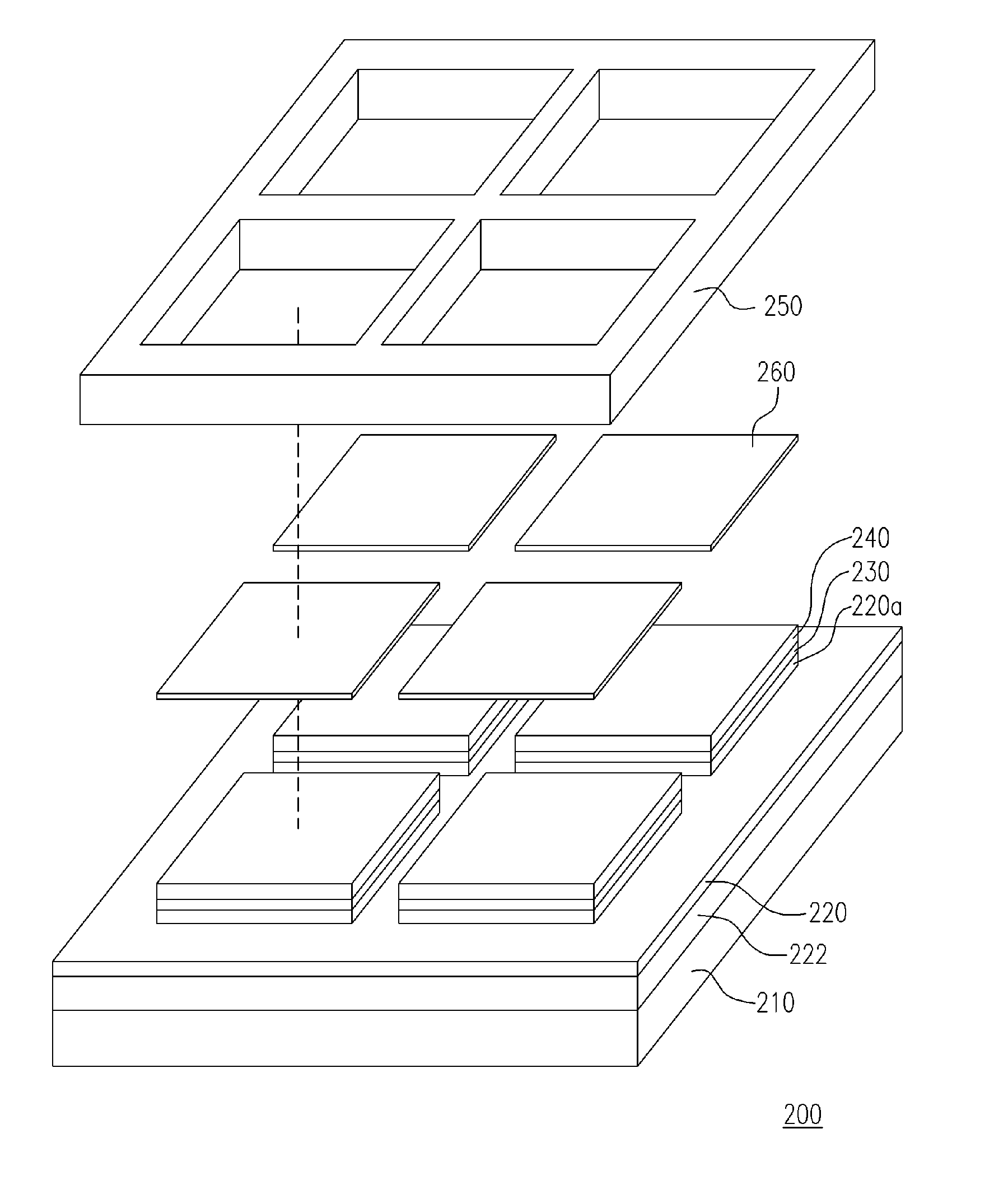

A light emitting diode (LED) chip mainly includes a substrate, a first type doped semiconductor layer, light-emitting layers, second type doped semiconductor layers, a first electrode and second electrodes. The first type doped semiconductor layer is disposed on the substrate and includes protrusions which is upward extended; the light-emitting layers are disposed on the corresponding protrusions respectively; the second type doped semiconductor layers are disposed on the corresponding light-emitting layers respectively; the first electrode is disposed on the first type doped semiconductor layer except the protrusions and electrically connected to the first type doped semiconductor layer; the second electrodes are disposed on the corresponding second type doped semiconductor layers respectively; and the first electrode is electrically insulated from the second electrodes.
