Racket handle of ergonomic character, a racket, and corresponding ranges of handles and of rackets
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 16, 2007
app pub date -
Feb 5, 2007
filing date -
Feb 6, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

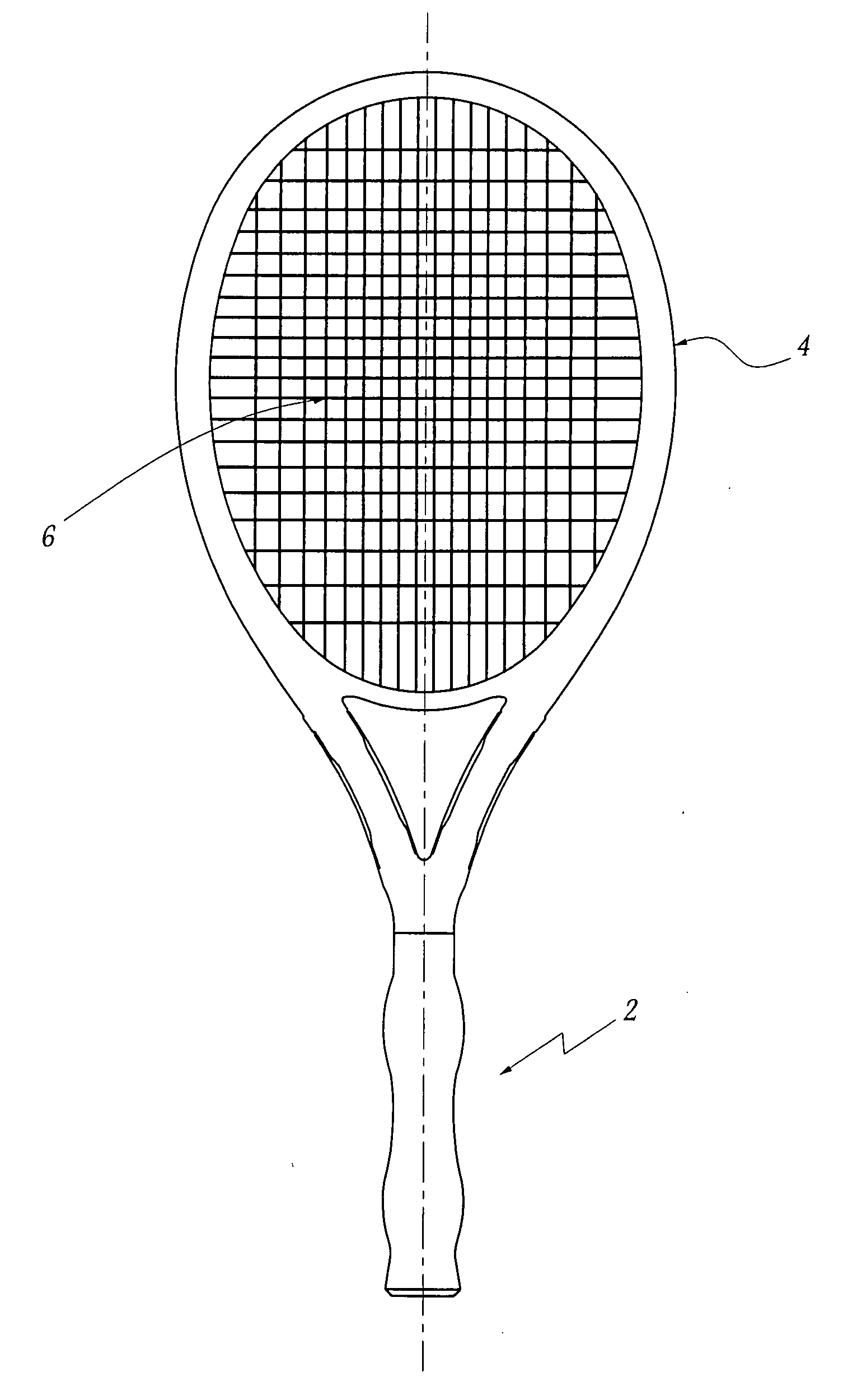

The handle (2) has at least a first bulb (10) defined by a first constriction (E.sub.1), a thickening (R.sub.1), and another constriction (E.sub.2), the first bulb presenting a section that is octagonal at all points, being defined by a rectangle truncated by four chamfers, the transverse dimensions of the first bulb increasing substantially continuously from each constriction (E.sub.1, E.sub.2) going towards the thickening (R.sub.1), the transverse dimensions of the bulb being as follows: A.sub.E1 lies in the range 31.25 mm to 33.25 mm; B.sub.E1 lies in the range 27 mm to 29 mm; C.sub.E1 lies in the range 8 mm to 14 mm; A.sub.R1 lies in the range 34.5 mm to 36.5 mm; B.sub.R1 lies in the range 30 mm to 32 mm; C.sub.R1 lies in the range 10 mm to 16 mm; A.sub.E2 lies in the range 30.5 mm to 32.5 mm; B.sub.E2 lies in the range 26.5 mm to 28.5 mm; and C.sub.E2 lies in the range 8 mm to 14 mm.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FR | B1 | FR2896996 | Feb 06, 2006 |
| EP | B1 | EP1815892 | Feb 05, 2007 |
| JP | A | JP2007209753 | Feb 06, 2007 |
| CN | B | CN101015736 | Feb 06, 2007 |
International Classification(s)
- 2007 Application Filing Year
- A63B Class
- 1329 Applications Filed
- 868 Patents Issued To-Date
- 65.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A63B Class
- 1.39 % this patent is cited more than
- 18 Age
