Servomechanical inker for a container decorator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 26, 2007
app pub date -
Jan 13, 2006
filing date -
Jan 13, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

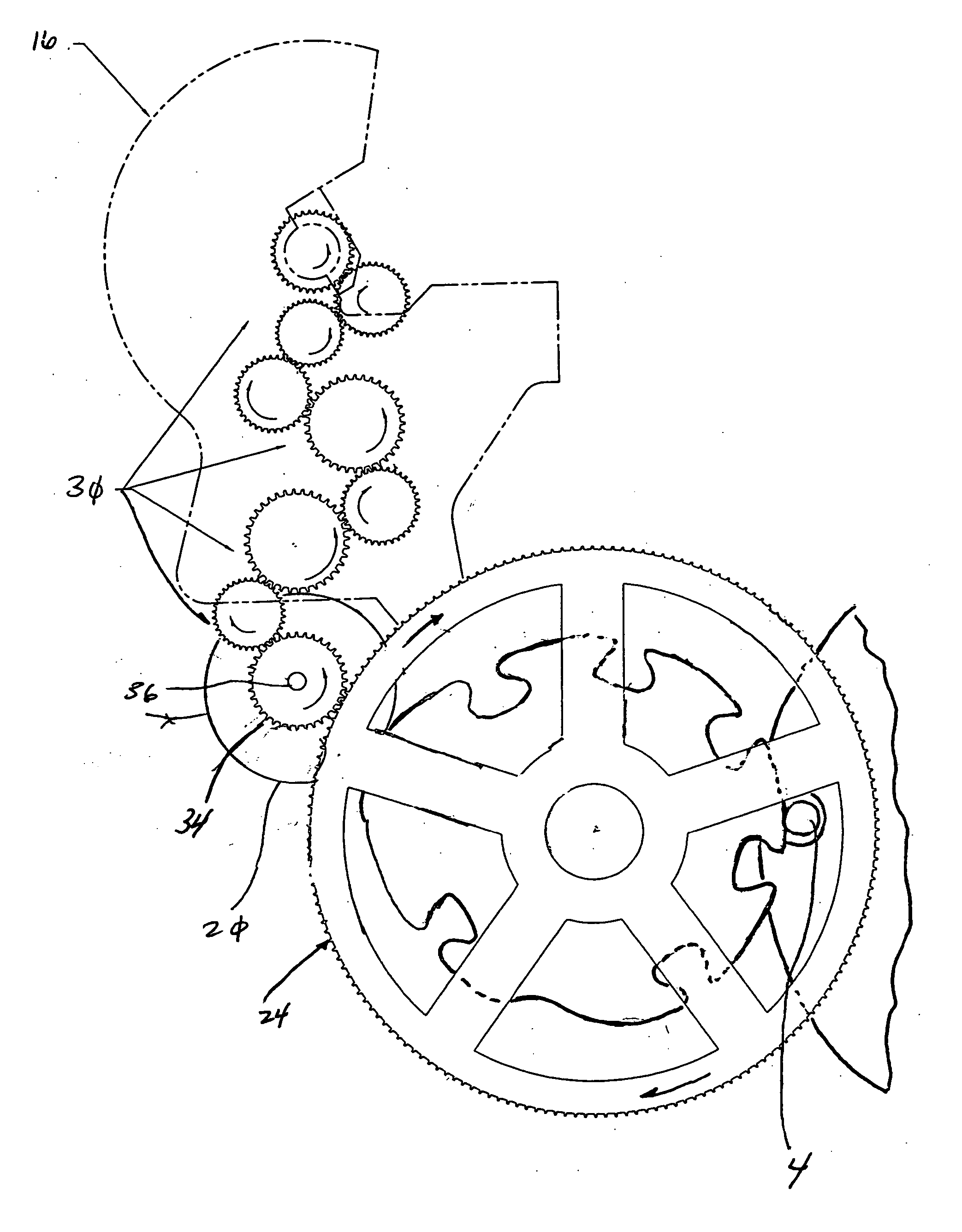

An improved inking apparatus is provided that omits the use of the bull gear generally known in the art. More specifically, bull gears have traditionally been used in inking apparatus to rotate pinion gears that rotate shafts interconnected to plate cylinders. Plate cylinders in turn apply ink to a blanket that ultimately applies indicia to a container such as a beverage can. The rotating shaft also communicates with a plurality of gears that operate the inking stations that transfer the ink onto the plate cylinder. One embodiment of the present invention omits the bull gear and the pinion gears and provides an electro-mechanical driver that rotates the shafts to allow a controller to monitor and individually control the timing of plate cylinder rotation and inker station gear rotation thereby increasing efficiency and maintenance personnel safety.
First Claim
Other Claims data not available
