In-wheel motor system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 19, 2007
app pub date -
Dec 22, 2004
filing date -
Dec 22, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

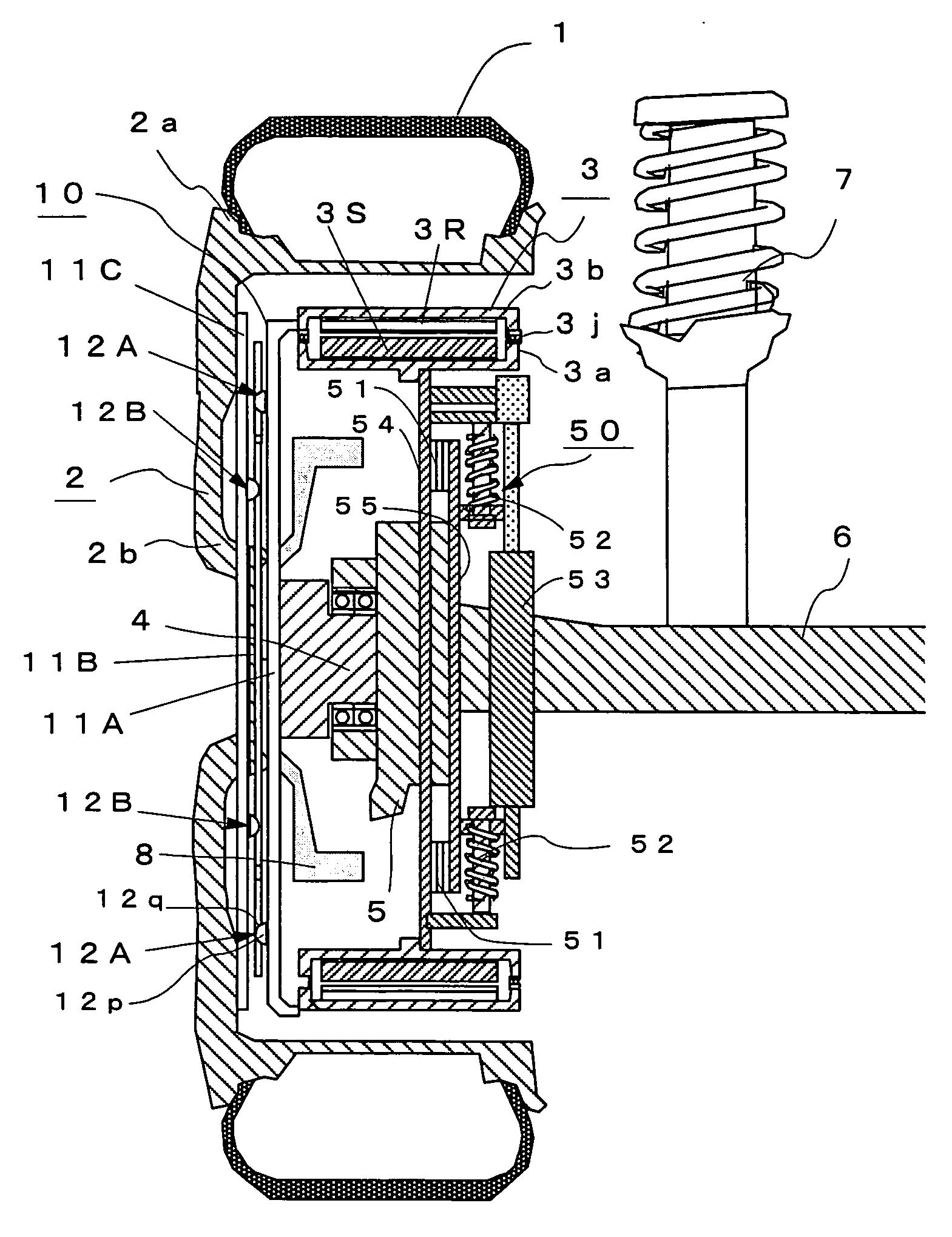

An in-wheel motor 3 and a wheel 2 or a hub 4 are interconnected by a flexible coupling 10 in which a motor-side plate 11A and an intermediate plate 11B are interconnected by a plurality of first slide members 12A, each comprising a roller member 12p moving along a stepped surface 12K formed on the intermediate plate 11B in such a manner that they can move in a predetermined direction (direction A) and the intermediate plate 11B and a wheel-side plate 11C are interconnected by a plurality of second slide members 12B having the same structure as the first slide member 12A in such a manner that they can move in a direction (direction B) orthogonal to the above direction A and which has a small number of parts and is easily assembled. Therefore, even when the motor shaft and the wheel shaft become eccentric to each other, the drive torque of the motor 3 can be transmitted to the wheel 2 without fail and the assembly work efficiency of the in-wheel motor can be enhanced.
