Air vent register
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 17, 2007
app pub date -
Nov 13, 2006
filing date -
Nov 14, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

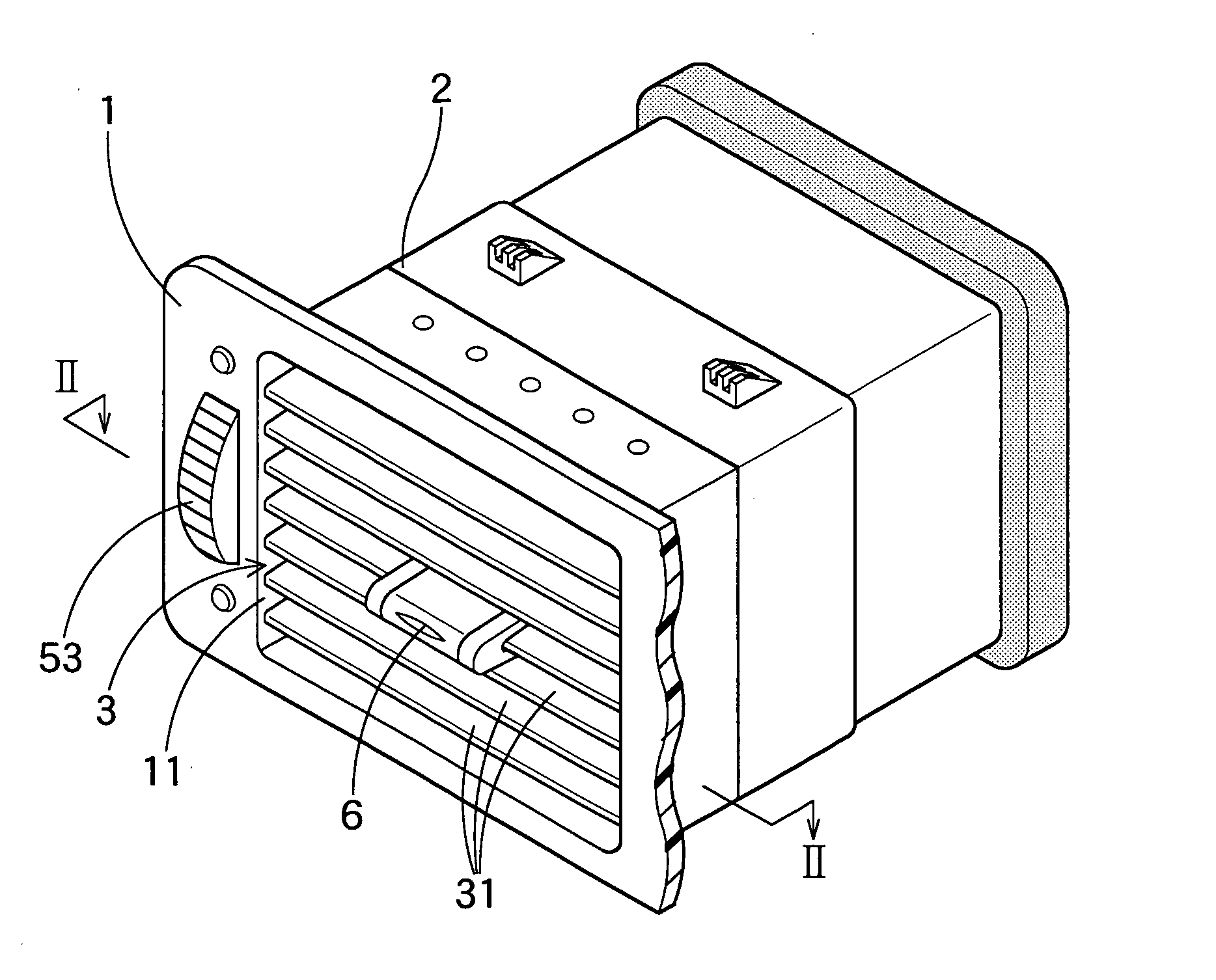

An air vent register includes a front movable louver structure having a plurality of fins disposed side by side for rotation, a rear movable louver structure disposed at a rear of the front movable louver structure, the rear louver structure having a plurality of fins for rotation arranged side by side and extending orthogonally to the fins of the front louver structure, an operation knob mounted around one of the fins of the front louver structure in a slidable manner, a link mechanism linking the operation knob and the rear louver structure for rotating the fins of the rear louver structure in accordance with a sliding movement of the operation knob, and a rubber-like elastic element arranged between the operation knob and the fin of front movable louver structure equipped with the operation knob in an abutting manner to the fin and the operation knob, the elastic element comprising a projection abutting against the fin and having a through hole for increasing a deformable amount of the projection.
First Claim
Other Claims data not available
