Ink cartridge for ink-jet printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 10, 2007
app pub date -
Nov 8, 2006
filing date -
Nov 9, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

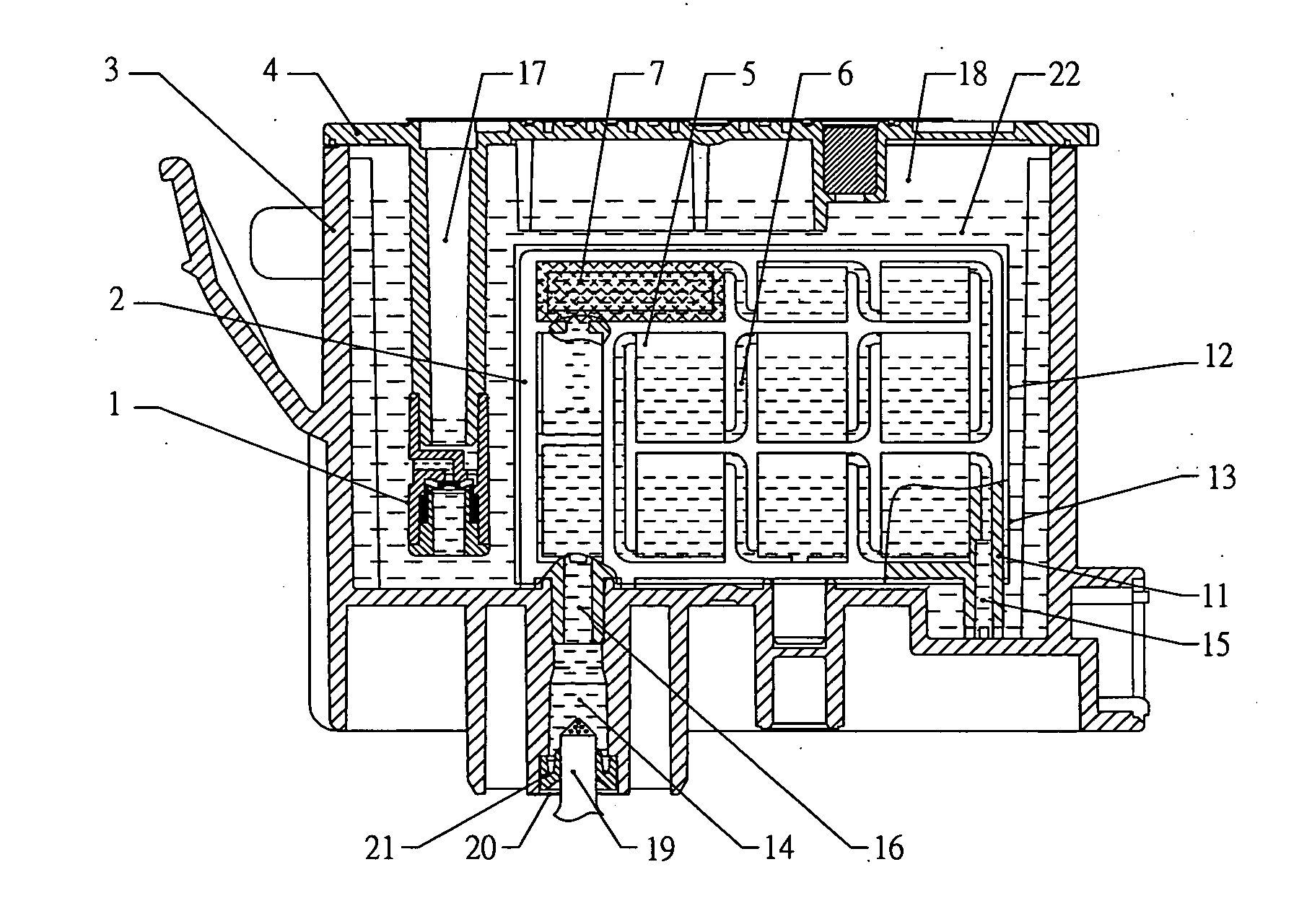

This invention relates to an ink cartridge for ink-jet printer, comprising mainly an ink storage chamber with two individually assembled parts: an ink supply adjusting valve and an air intake adjusting valve. Ink supply adjusting valve comprises a valve body, front and rear films and a filter mesh and in the valve body at least two ink chambers communicated by means of one or more ink channels are partitioned. The ink inlet of the ink supply adjusting valve is located at the lowest recessed portion of the ink chamber, while the ink outlet is connected to the ink supply port of the ink cartridge. The air intake adjusting valve, constructed of a valve core, a valve base and a valve cover, is connected to the inlet air vent of the ink storage chamber. The working pressure of the valve is adjusted by the resilient valve core.
First Claim
Other Claims data not available
