Atomization apparatus of a washing machine for washing a human cavity tissue
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 12, 2007
app pub date -
Oct 11, 2005
filing date -
Oct 11, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

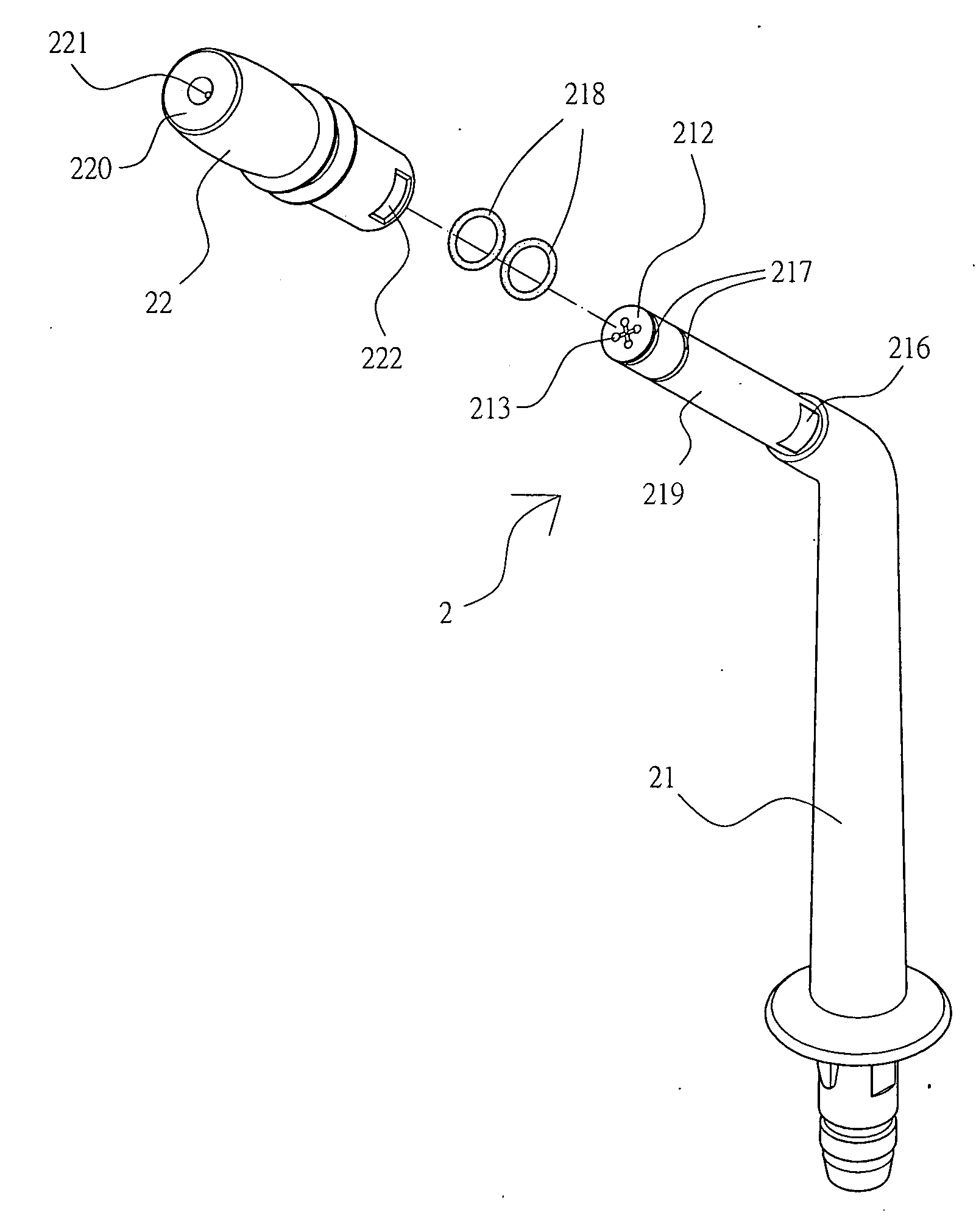

A spray element of an irrigator includes a support shank and a sleeve. The support shank has a hollow channel and an end wall having an inside formed with at least two water outlet holes and an outside formed with a gathering portion and at least two trenches each connected to a respective one of the water outlet holes and the gathering portion. The sleeve has an end wall rested on the end wall of the support shank and formed with a nozzle connected to the gathering portion. When the fluid flowing in each of the trenches impacts mutually, the fine spray is generated and ejected outwardly from the nozzle of the sleeve.
First Claim
Other Claims data not available
