Monolithic, side-pumped, passively Q-switched solid-state laser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 28, 2006
filing date -
Oct 4, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

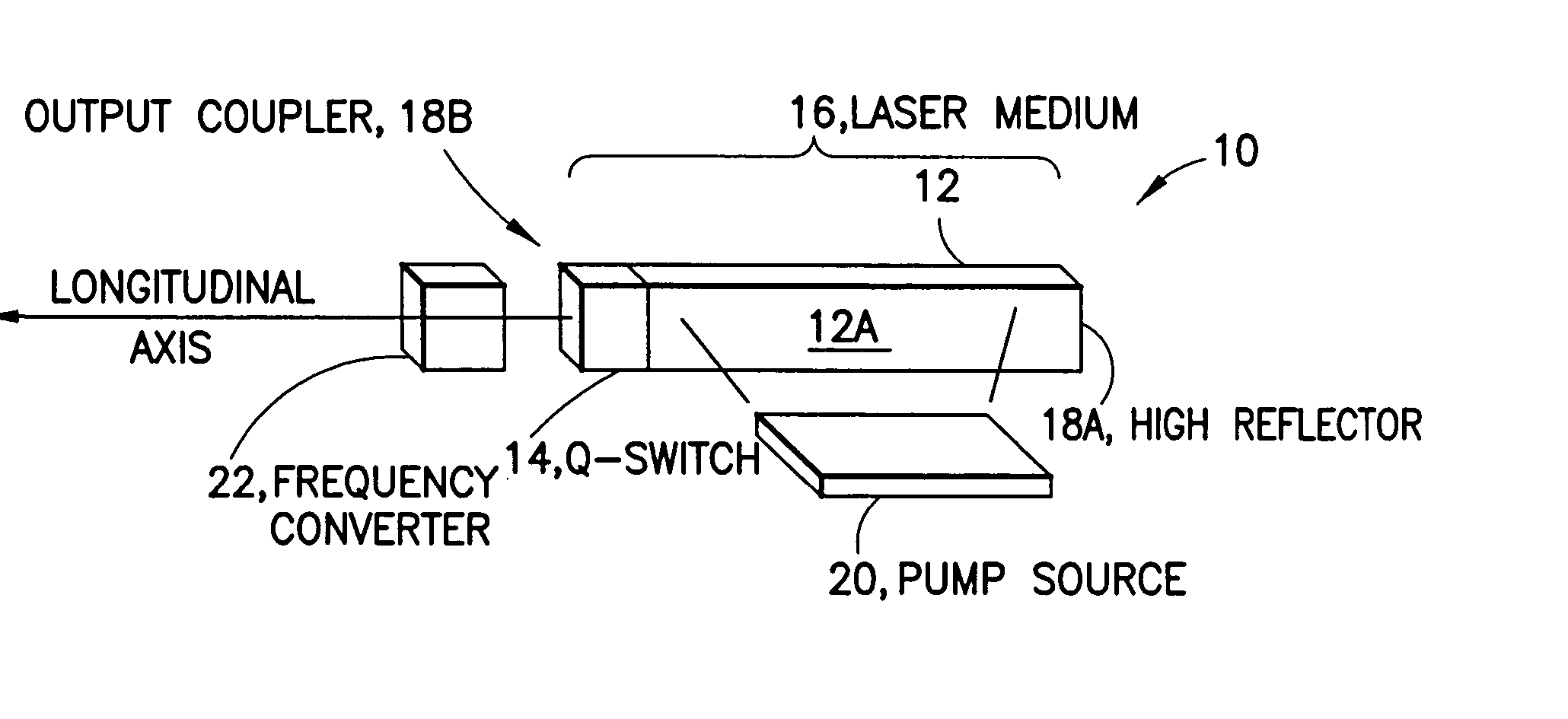

A monolithic, side pumped, passively Q-switched, solid-state laser (10) includes a laser resonator structure (16) that includes a laser gain medium (12) having an output face bonded to a passive Q-switch (14). The gain medium (12) has a side face (12A) for receiving pump light. The pump light is preferably generated by a laser diode array (20). In a further embodiment, a non-linear optical material (22), such as frequency doubling KTP, is optically coupled to an output face of the Q-switch for providing output wavelength conversion. A method is also disclosed for fabricating the monolithic, side pumped, passively Q-switched, solid-state laser. Techniques are included for providing compensation from thermal aberrations during operation of the laser.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- H01S Class
- 3.11 % this patent is cited more than
- 18 Age
