Abstract

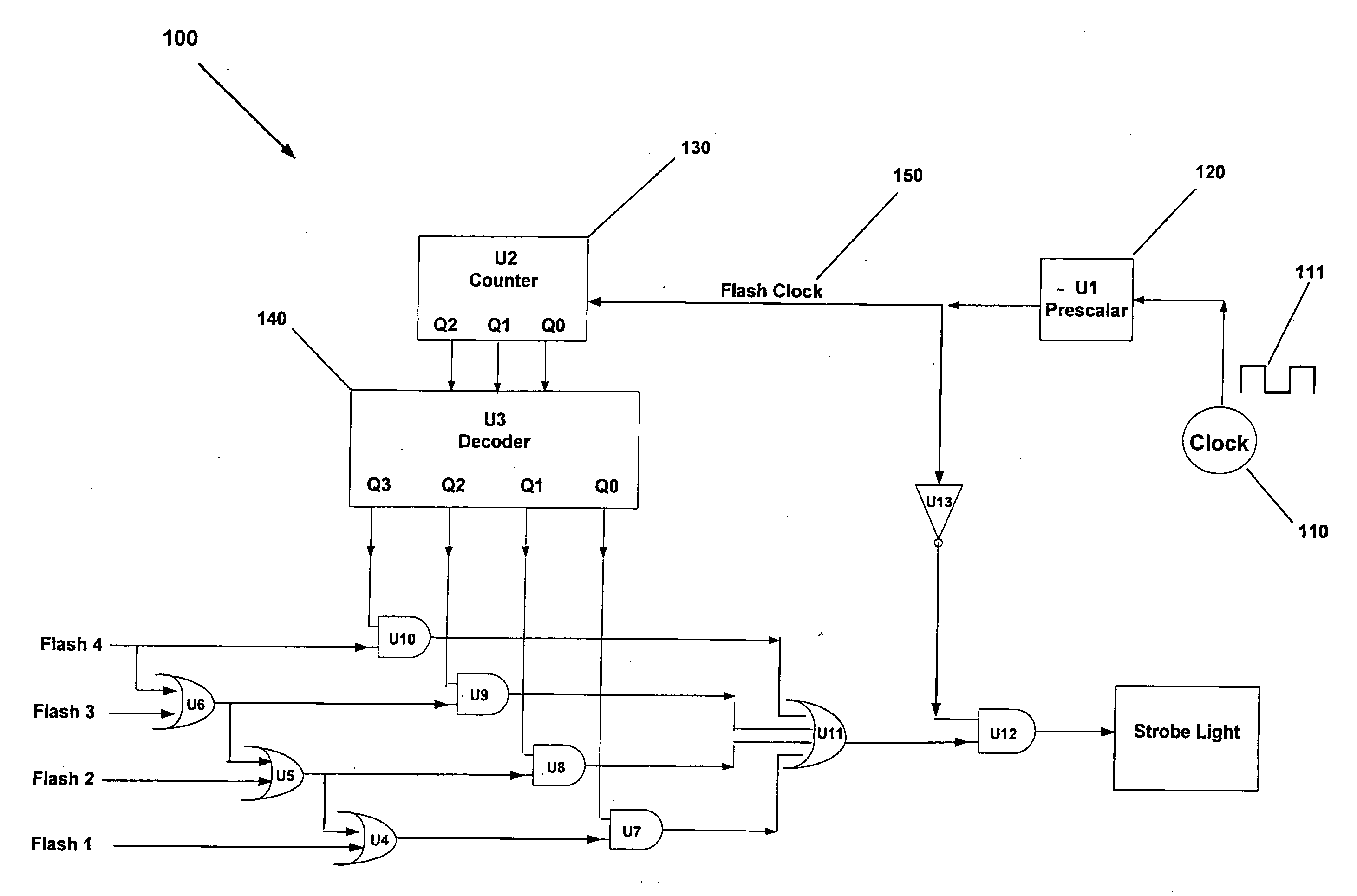

A high-intensity visual light indicates the operating status of outdoor equipment generally and agricultural equipment specifically. In one aspect, the indicator light provides long-distance visual diagnostic annunciation of the equipment's status using visual patterning indicative of the operating condition of the machine. Thus, the indicator light may provide information regarding a plurality of normal operating conditions for the equipment, beyond simply whether power is present or lacking. Additionally, in the event that the equipment is not working properly, the indicator light may provide information regarding the particular anomaly involved. The indicator light may be a single color, for example, white, that is capable of patterned flashing to indicate status. The high-intensity light may be, in a preferred embodiment, a xenon strobe. A logic circuit may be employed to create the desired flash sequence. The inputs to the circuit may be adapted to any signal specification, including any conventional electronic logic levels and relay or switch contacts or they may be driven by de-serialized digital communication signals to facilitate interfacing with a programmed digital computer or other device. The logical functions may be programmed into a digital computer. The flashing pattern may be augmented by the use of color, so that a combination of colors and flashing patterns indicate the equipment's status.
