One-piece cam and bolt housing for a deadbolt assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 8, 2007
app pub date -
Mar 3, 2006
filing date -
Sep 8, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

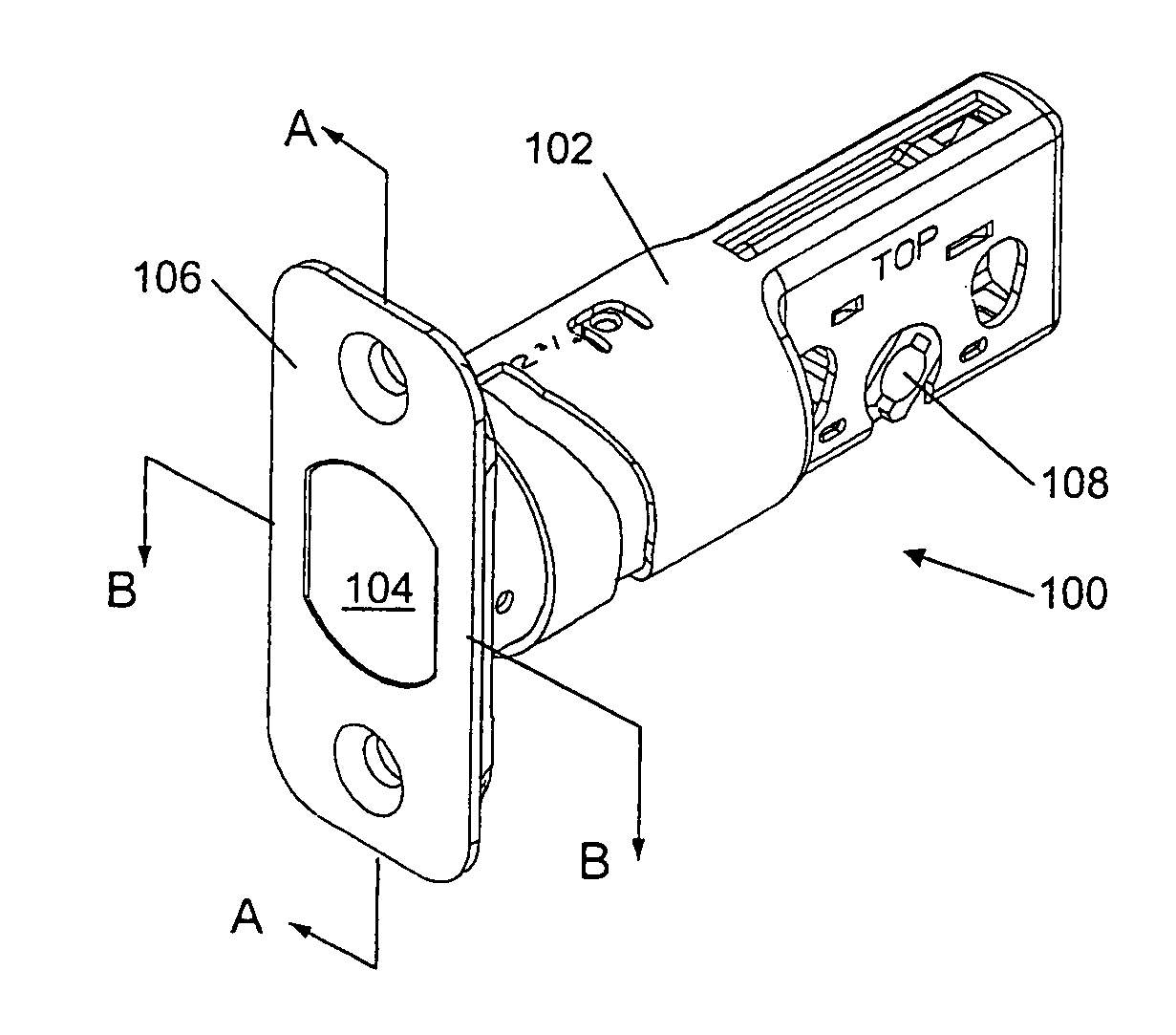

An adjustable backset deadbolt assembly providing operational and structural improvements. The deadbolt assembly can provide adjustability between a first backset dimension and a second backset dimension for allowing installation in doors conforming to various industry standards. The deadbolt assembly can provide adjustability between backset dimensions by relative rotation between the inner bolt housing and the outer housing. The inner bolt housing may be provided with a depressible snap finger to allow insertion of a protrusion thereon into a slot in the outer housing. In some embodiments, the slot is provided substantially helically through an angle of 360 degrees to provide common orientation of parts in each backset dimension. The outer housing may be provided to integrally form a cam housing and a bolt housing.
First Claim
Other Claims data not available
