Transport-optimized crane undercarriage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 1, 2007
app pub date -
Aug 29, 2006
filing date -
Aug 31, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

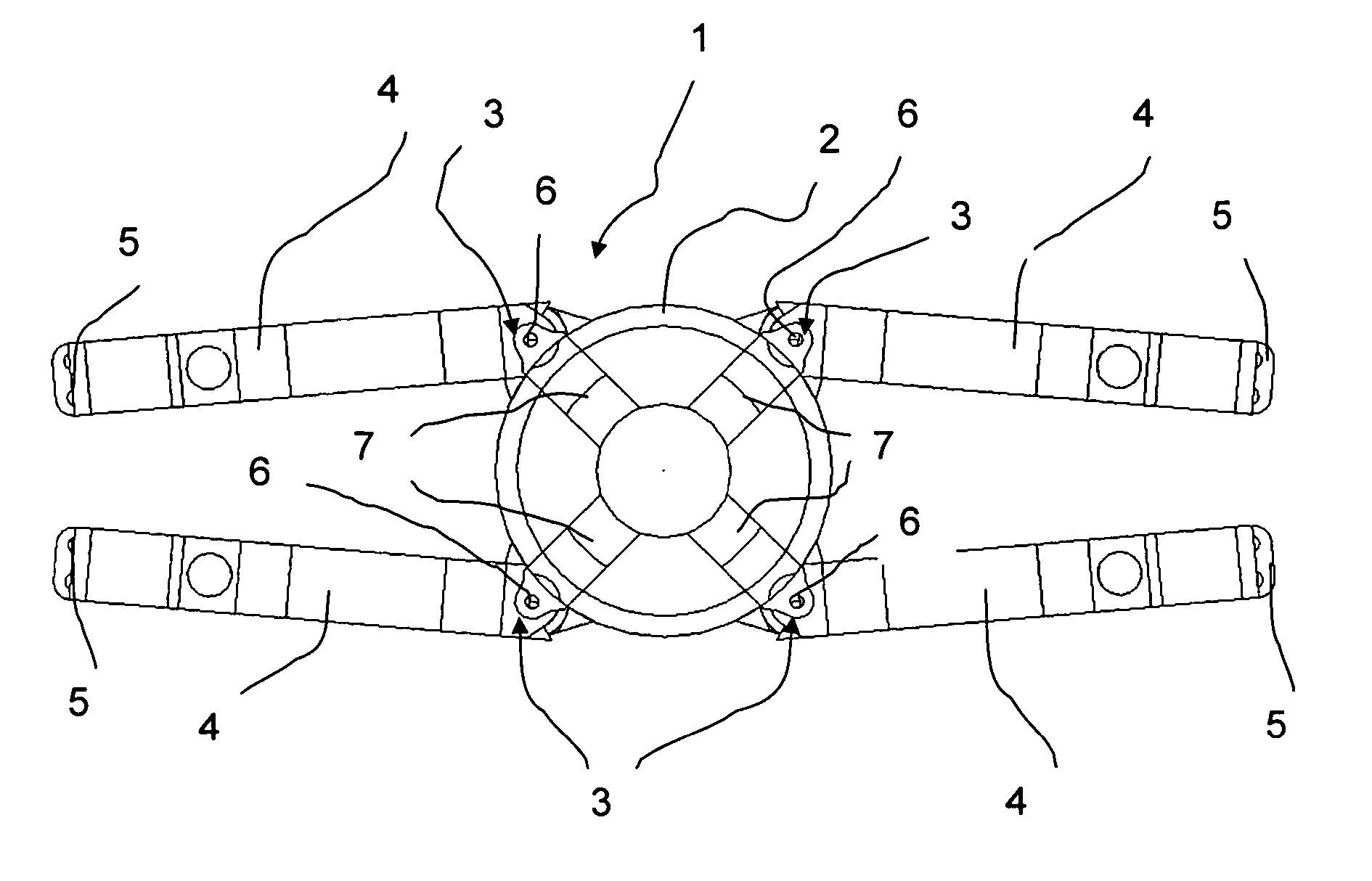

The invention concerns a crane undercarriage (1) that comprises a center section (2), which is constructed for removable mounting of a rotatable crane superstructure (40), and a plurality of outriggers (4), which are pivotably supported on the center section (2) for assuming a transport configuration and at least one operational configuration. The support elements (10; 20) necessary for the operation of the crane are attachable on the outriggers (4). In addition, the invention concerns a variable crane that comprises a crane undercarriage of the above-mentioned type and selectively a set of crawlers (10) or a set of floor jacks (20) is removably mountable on the crane undercarriage (1).
First Claim
Other Claims data not available
