Data cable with cross-twist cabled core
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 1, 2007
app pub date -
Jun 1, 2006
filing date -
Apr 22, 1997
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

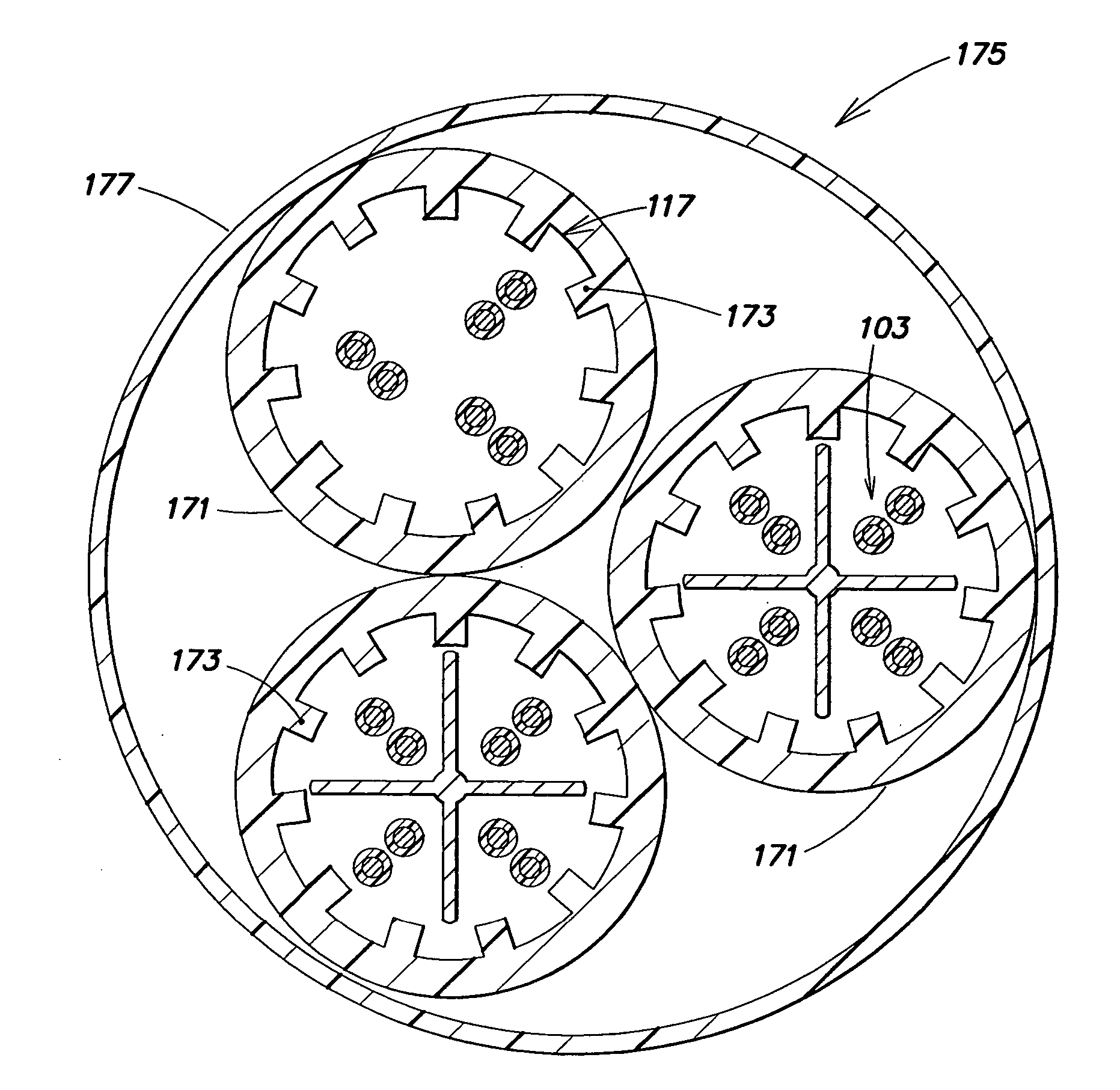

Cables including a plurality of twisted pairs of insulated conductors and a jacket surrounding the plurality of twisted pairs of insulated conductors, the jacket including a plurality of protrusions extending away from an inner circumferential surface of the jacket toward a center of the cable. The plurality of protrusions are configured so as to hold the plurality of twisted pairs away from the inner circumferential surface of the jacket, and may provide an air gap between the plurality of twisted pairs of insulated conductors and the inner circumferential surface of the jacket, thereby reducing susceptibility of the plurality of twisted pairs to alien near end crosstalk.
First Claim
Other Claims data not available
