Tubeless bicycle tire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 25, 2010
Issued Date -
N/A
app pub date -
Oct 25, 2006
filing date -
May 11, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

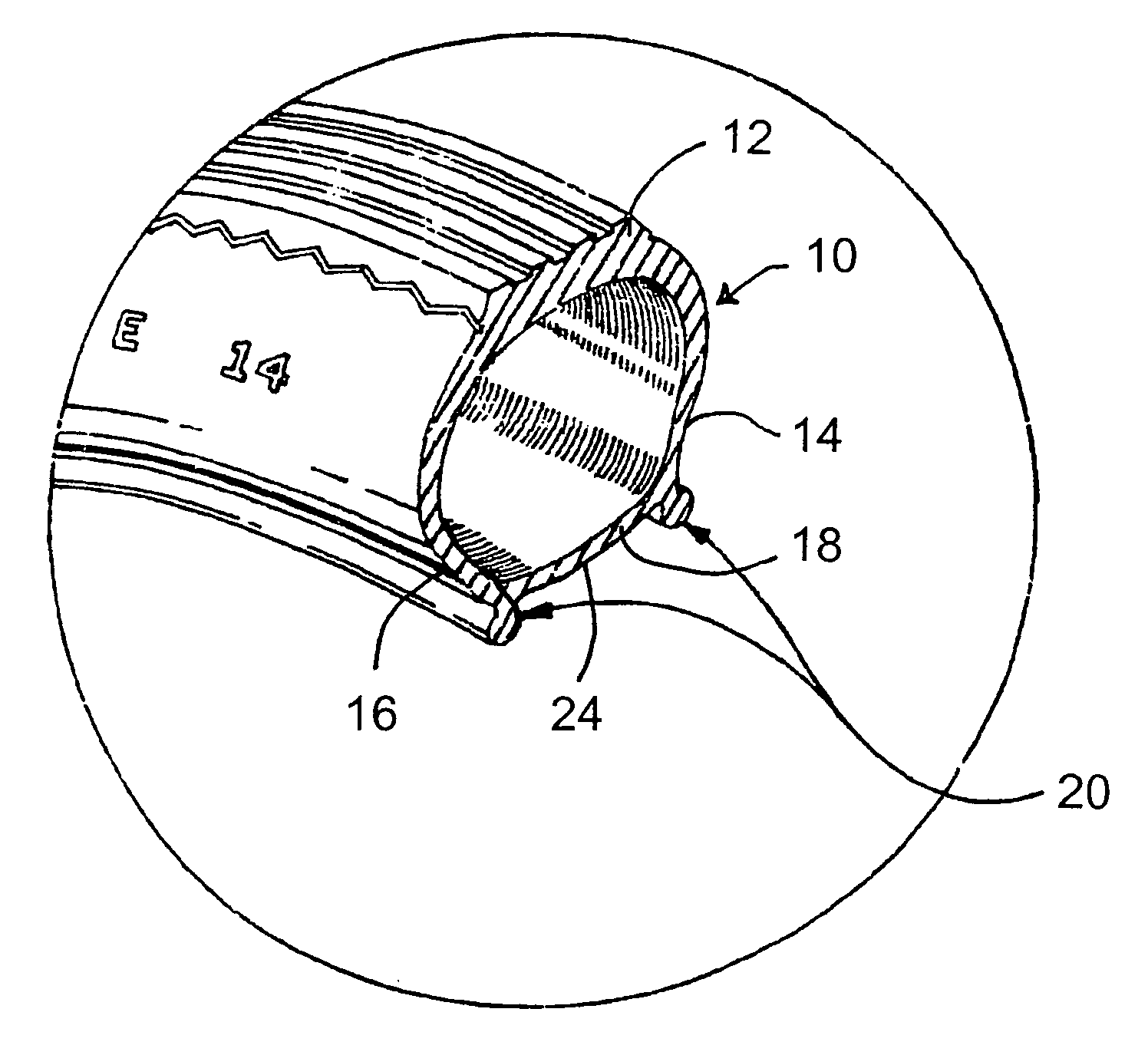

A tubeless tire includes a tread portion, two sidewalls, an interfacing material integrally formed between the two sidewalls of a pliable, flexible yet reliable material, two beads extending outwardly from the tire, delimiting a section formed by the interfacing material, and an air valve stem provided on the interfacing material. The thickness of the interfacing material is substantially the same as the thickness of the two sidewalls, and the beads project outwardly of an outer surface of the interfacing material. The beads are disposed in a position such that when the tire is mounted on a rim, the beads will fit within the rim, when the tire is inflated on the rim using the air valve stem, the interfacing material will expand, causing the beads to fit tightly within the rim, thus fixing the tire on the rim, and there is no sealing layer within the tire.
First Claim
Other Claims data not available
