COMPRESSOR, IN PARTICULAR LATERAL CHANNEL COMPRESSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 25, 2007
app pub date -
Dec 9, 2005
filing date -
Dec 15, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

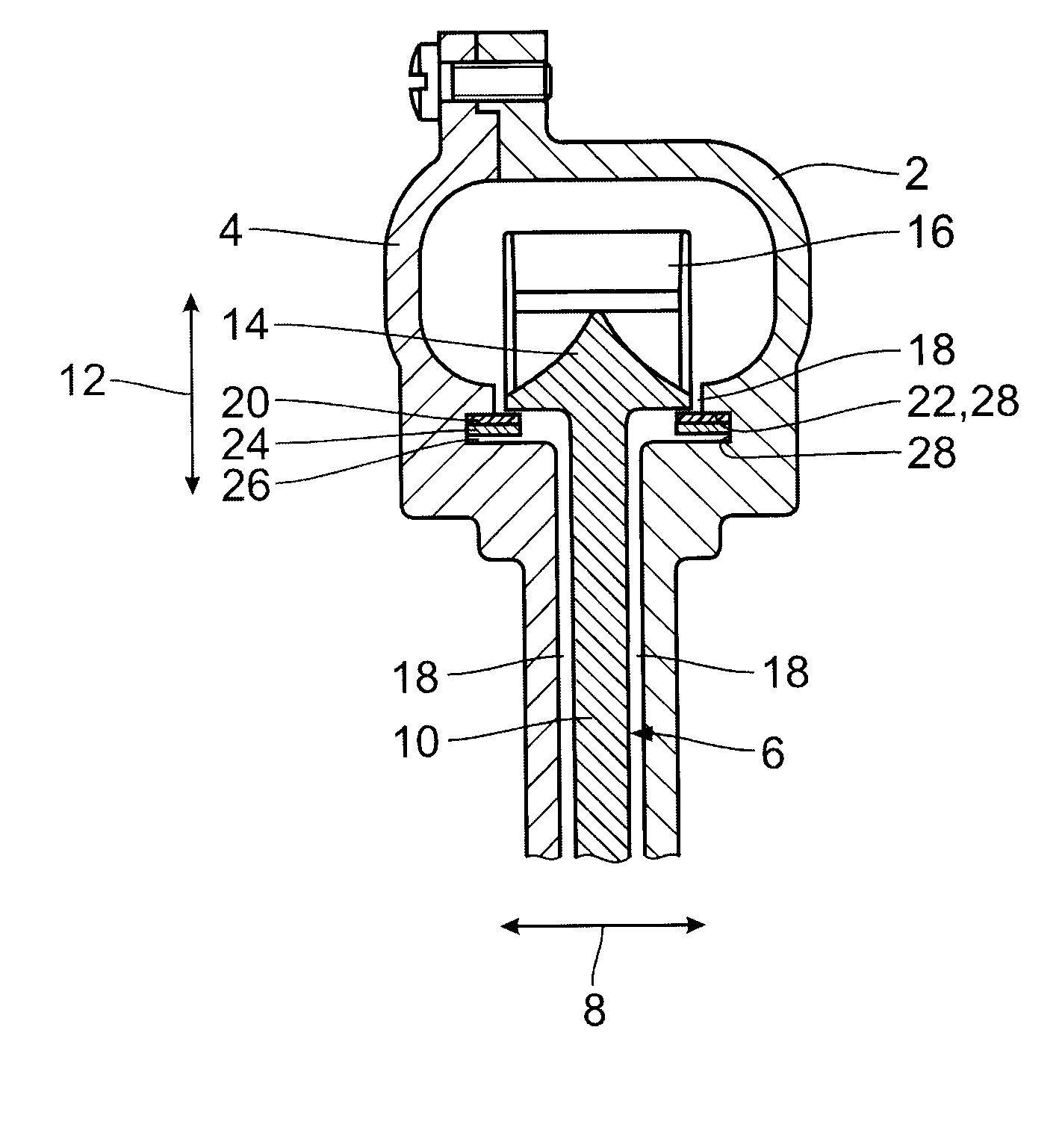

The compressor, in particular lateral channel compressor, comprises a casing member (2, 4) and an impeller (6) which is disposed therein rotatably about an axial axis of rotation and which is spaced from the casing member (2, 4) by a sealing gap (18). The sealing gap is sealed by means of a sealing arrangement which comprises an encircling sealing ring (20) and a spring element (34, 44, 46, 48) that forces the sealing ring (20) against a contact surface (22). The spring load that is applied by the spring element (34, 44, 46, 48) helps obtain automatic, dynamic adaptation to alternating spatial geometries during operation, for example upon temperature fluctuations, which ensures constantly good sealing effects.
First Claim
Other Claims data not available
