Wear tester
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 25, 2007
app pub date -
Jul 20, 2006
filing date -
Jul 22, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

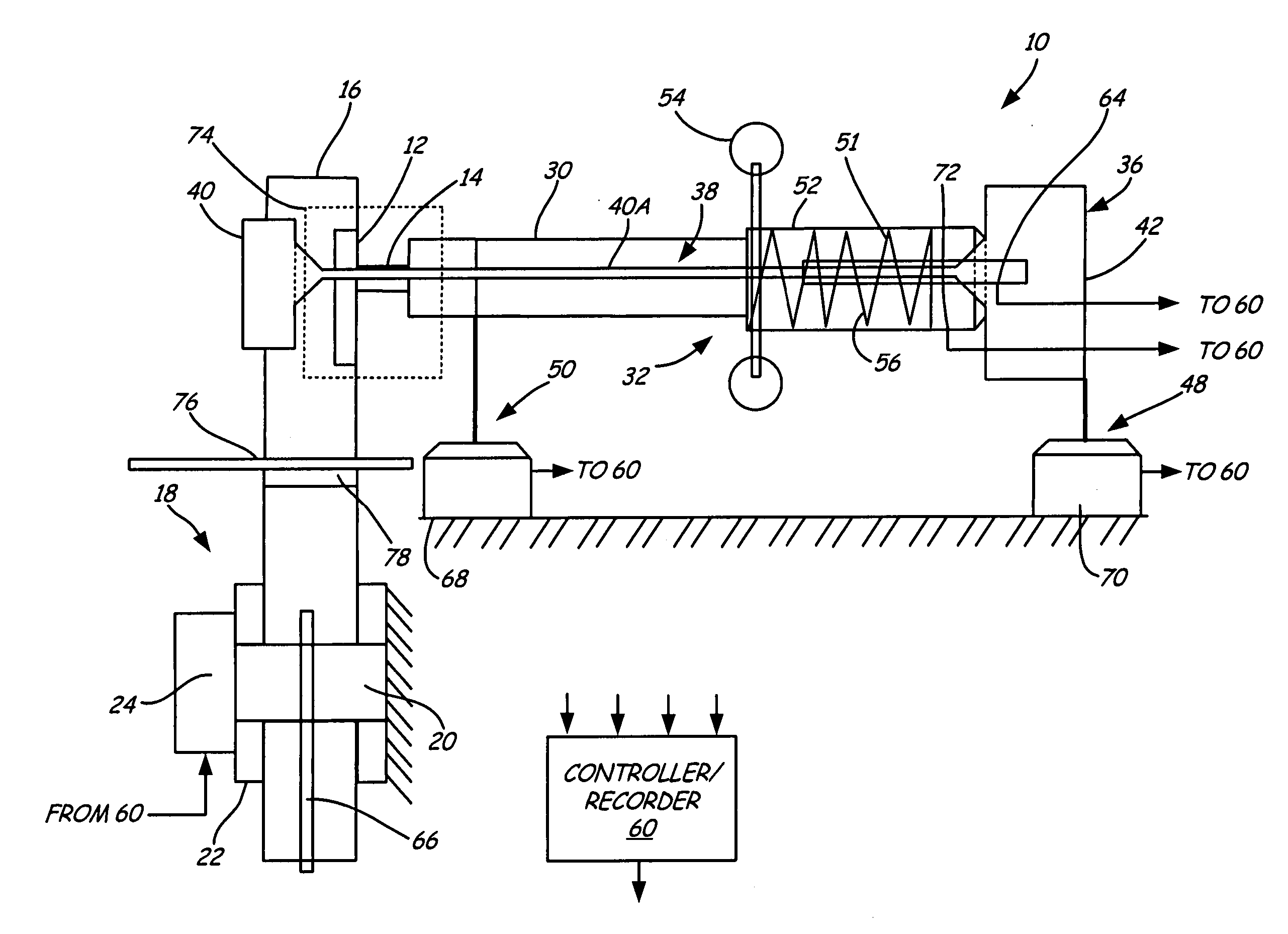

A test assembly structure having a first specimen support, a displacement mechanism joined to the first specimen support and a second specimen support. A loading assembly is joined to the second specimen support and configured so as to engage a specimen held by the second specimen support with a specimen held by the first specimen support. A self-reacting structure is joined to the loading assembly having a flexure substantially rigid in the direction of loading of the loading assembly and substantially compliant in the direction of displacement of the displacement mechanism. A second flexure can be configured to support the second specimen support and/or loading assembly on a base. The second flexure is substantially compliant in the direction of loading of the loading assembly and substantially rigid in the direction of displacement of the displacement mechanism.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G01N Class
- 4.17 % this patent is cited more than
- 18 Age
