Method for scan welding or marking through a waveguide and waveguide therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 4, 2007
app pub date -
Jun 29, 2005
filing date -
Jun 29, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

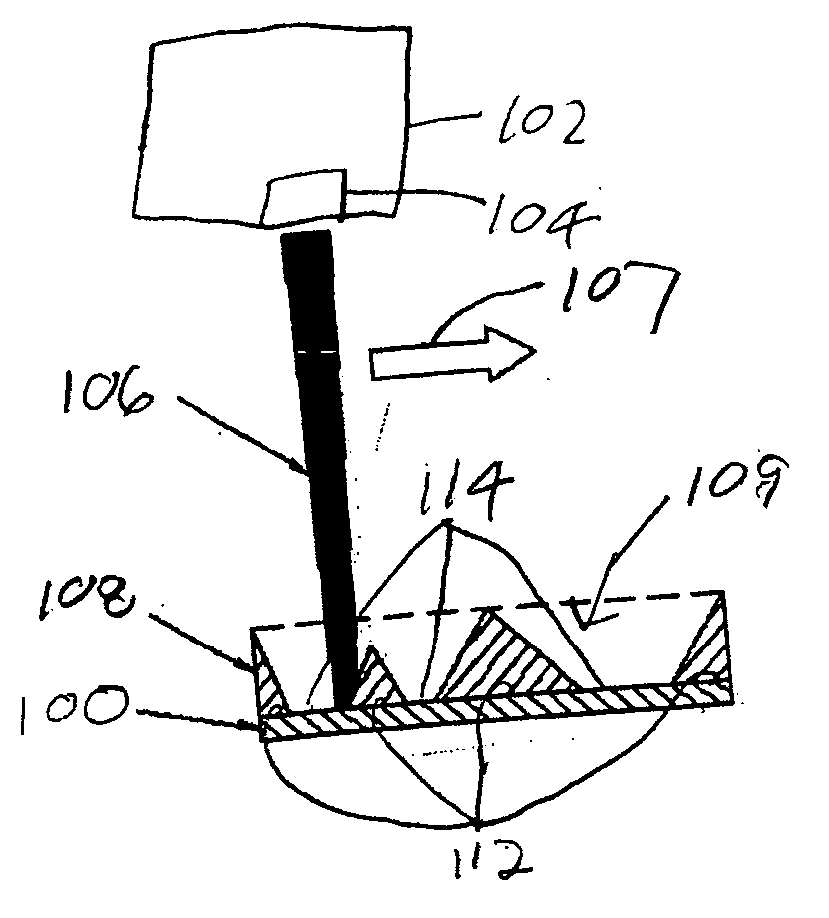

An optical scan system welds or marks a part by directing an optical beam onto the part at a sufficient energy density level to weld or mark it. A method of controlling a pattern where the part is to be exposed to the beam at the sufficient energy density level includes disposing a waveguide between the part and an optical source of the optical scan system to prevent areas of the part that are not to be welded or marked from being exposed to the beam at the sufficient energy density level to weld or mark them, allowing the areas to be welded or marked to be exposed to the beam at the sufficient energy level. In an aspect, the waveguide prevents the beam from being reflected in an undesired direction. In an aspect, the waveguide redirects the beam from the areas of the part that are not to be welded or marked to areas that are to be welded or marked to concentrate the energy on the areas to be welded or marked. In an aspect, a dissipative waveguide dissipates energy of the beam in the areas of the part that are not to be welded or marked so that those areas are not exposed to the beam at the sufficient energy density level.
