Tunable resonant cable trap
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 28, 2006
app pub date -
Jun 24, 2005
filing date -
Jun 24, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

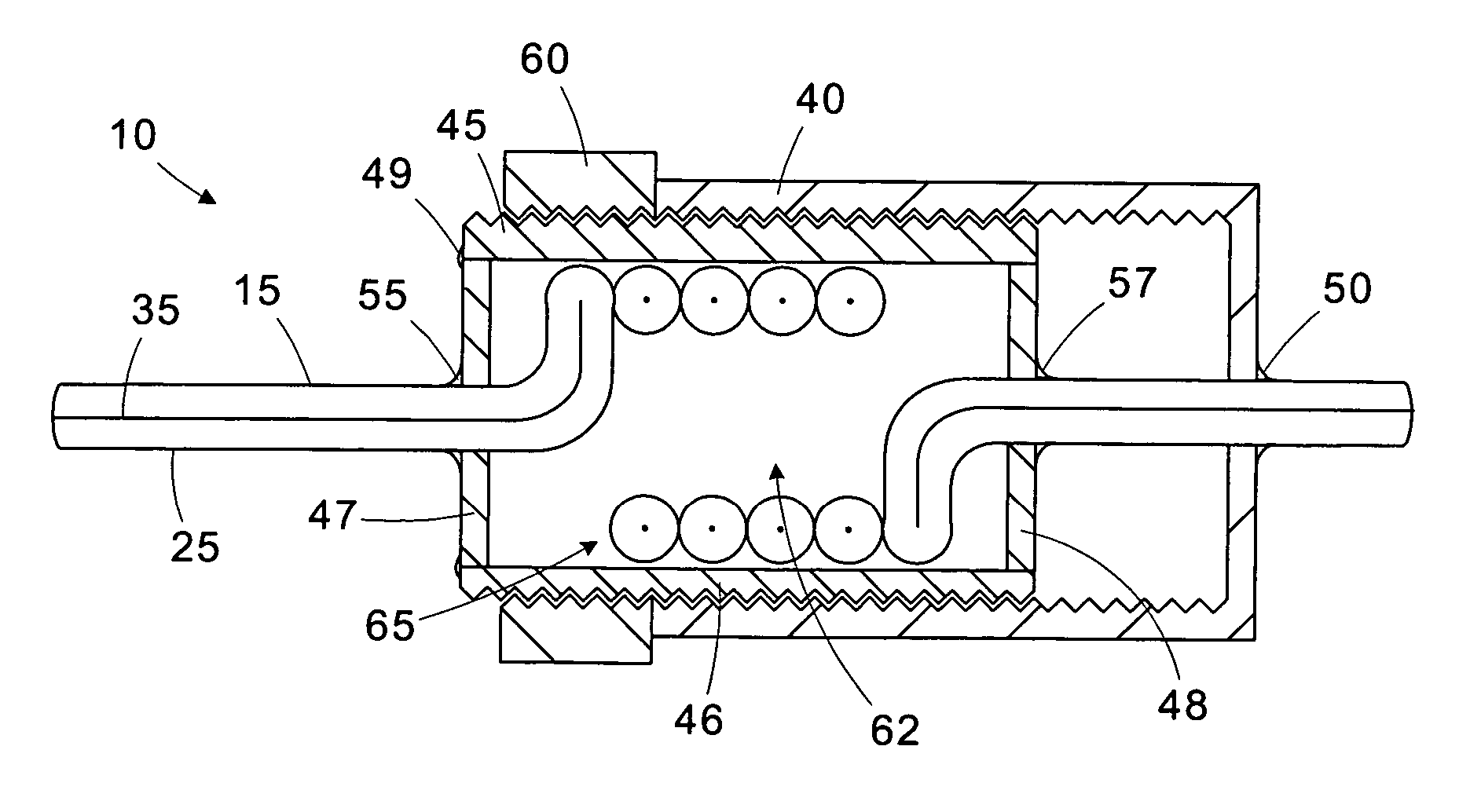

A resonant cable trap for use with a shielded cable having an outer shield surrounding at least one inner conductor includes first and second members and a coil defined in the outer shield. The first member has a first conductive surface coupled to the shield. The second member has a second conductive surface coupled to the shield and is disposed to overlap at least a portion of the first member. The first and second conductive surfaces define a capacitor. The capacitor is coupled to the shield in parallel with the coil. A method for tuning the resonant cable trap includes adjusting the amount of overlap between the first and second members to tune the resonant frequency of the resonant cable trap.
First Claim
Other Claims data not available
