MULTI-PLY ABSORBENT PAPER PRODUCT HAVING IMPRESSED PATTERN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 21, 2006
filing date -
Nov 1, 1999
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

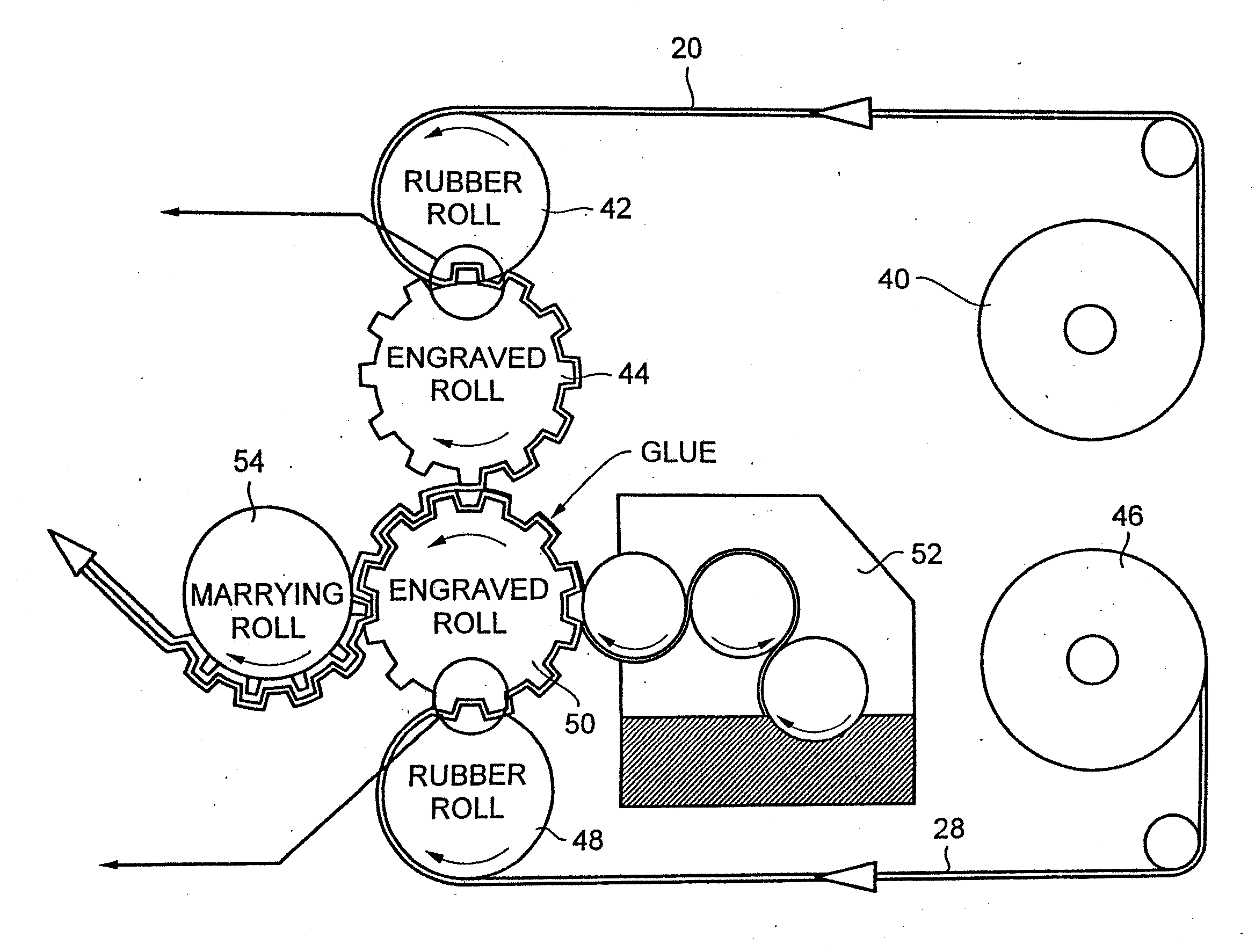

A multi-ply tissue includes a first cellulosic embossed ply having an emboss pattern applied over a portion of its surface and a second cellulosic embossed ply of tissue. The first ply is contact laminated to the second ply so that the primary adhesion between the plies of tissue is the result of contact between cellulosic fibers. The first and second plies contact one another in contact-areas, with the contact areas between the first and second plies defining compliant voids. The contact areas between the first ply and the second ply are elongated and/or rounded contact areas. A method of forming a multi-ply tissue involves conveying a base sheet through a nip between an impression roll and a pattern roll to produce an embossed base sheet having a back side possessing projections, applying adhesive to the back side of the embossed base sheet at spaced apart locations, and applying a flat backing sheet to the back side of the embossed base sheet so that the backing sheet adheres to the back side of the embossed base sheet at said spaced apart locations. A method of producing an embossed tissue involves successively conveying a base sheet through a nip between a first impression roll and a pattern roll, and conveying the base sheet through another nip between the pattern roll and a second impression roll, wherein the second impression roll is made of rubber having a lower hardness than the rubber from which the first impression roll is made.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
FORT JAMES CORPORATION | RICHMOND VIRGINIA 23219 |
International Classification(s)

- 2006 Application Filing Year
- B31F Class
- 89 Applications Filed
- 45 Patents Issued To-Date
- 50.57 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Kershaw, Thomas N | Neenah, WI | 48 | 2939 |
# of filed Patents : 48 Total Citations : 2939 | |||
Schulz, Galyn A | Greenville, WI | 117 | 5094 |
# of filed Patents : 117 Total Citations : 5094 | |||
Worry, Gary L | Appleton, WI | 22 | 1045 |
# of filed Patents : 22 Total Citations : 1045 | |||
Yeh, Kang C | Neenah, WI | 8 | 505 |
# of filed Patents : 8 Total Citations : 505 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 11 Citation Count
- B31F Class
- 62.22 % this patent is cited more than
- 19 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
