Lift-off door hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 7, 2006
app pub date -
Jun 6, 2005
filing date -
Jun 6, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

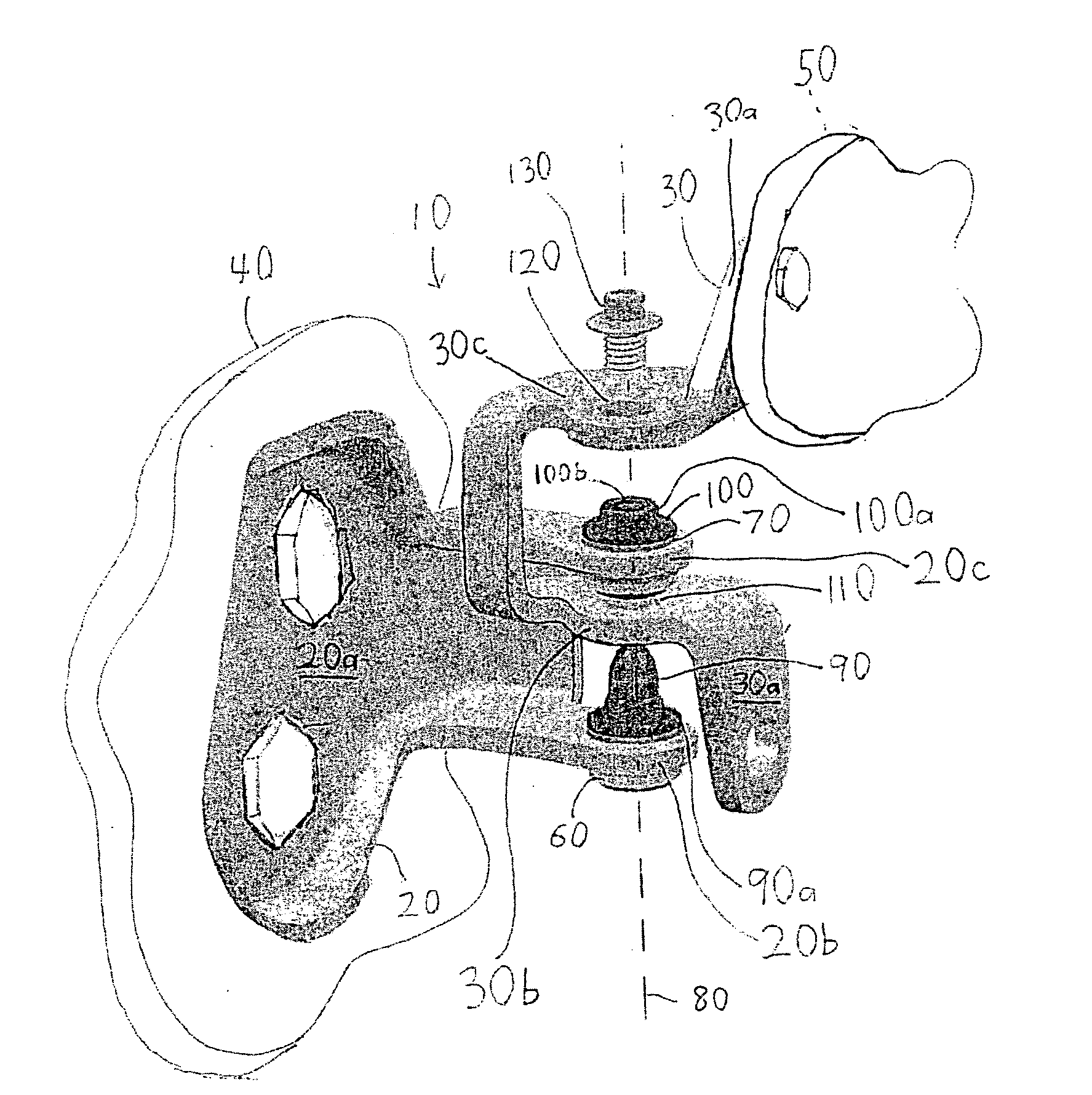

A separable, lift-off hinge for a vehicle door includes two separable brackets. Bushings mount to one of the brackets. Pins pivotally connect to the bushings to define the pivotal connection of the hinge. The pins removably mate with openings in the other bracket so that the brackets may be attached to each other and detached from each other by moving the brackets axially relative to each other. The pins and openings have complimentary non-circular cross-sections that prevent the pins from pivoting relative to the openings when the brackets are connected to each other. A fastener removably attaches to one of the pins to keep the brackets operatively connected to each other.
First Claim
Other Claims data not available
