Mold material processing device, method and apparatus for producing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 15, 2006
filing date -
May 24, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

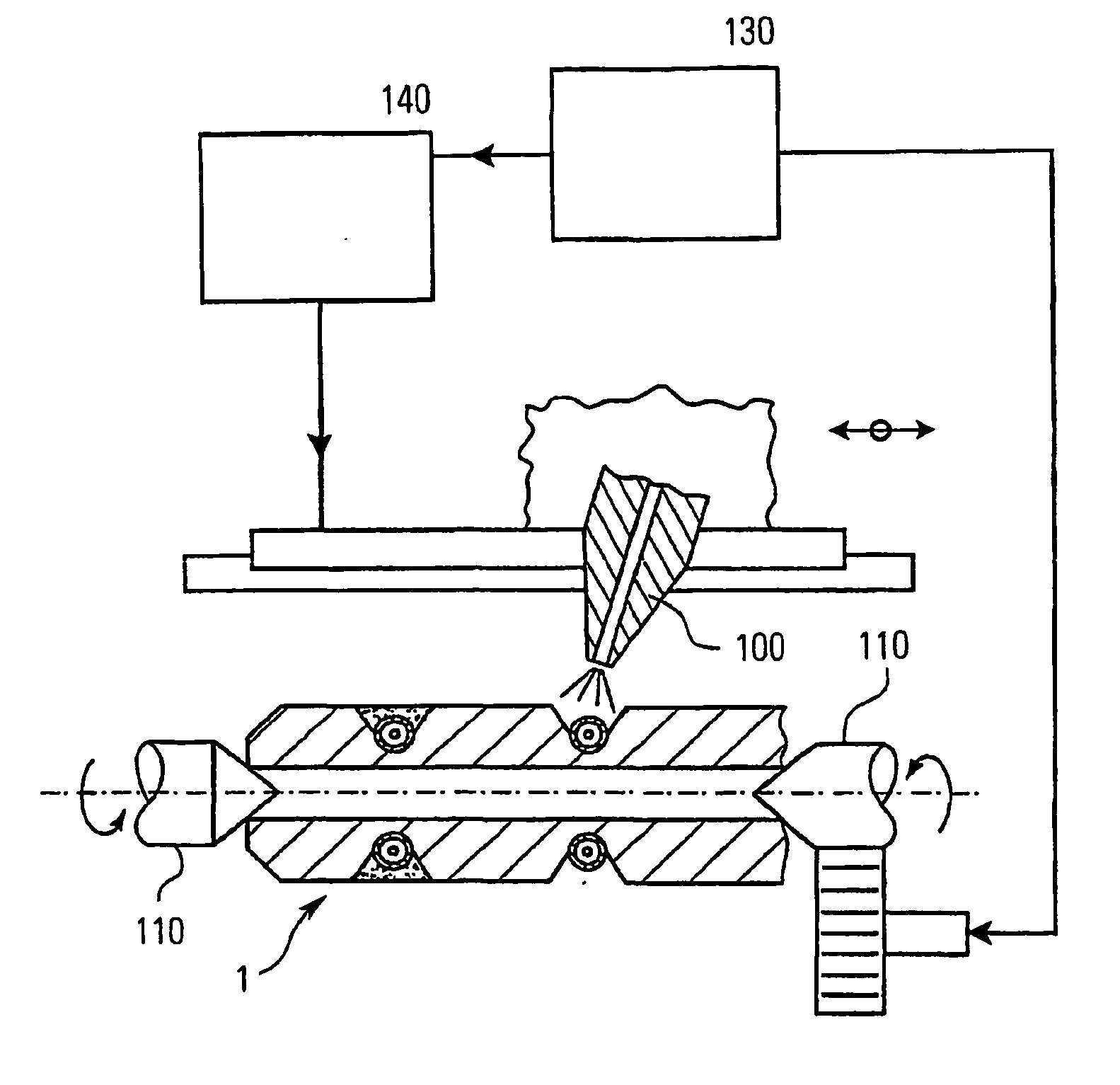

The invention relates to a molten material processing device having an elongated thermal element like a heating element, a thermocouple, a sensor, a heatpipe and a cooling pipe which is characterized in that the elongated thermal element is located in a recess provided in a surface of the molten material processing device, the recess, including a first portion and a second portion, has a cross-section which is larger than a cross-section of the thermal element, so as to provide a clear space between the thermal element and the surface of the processing device, the clear space which is limited by the first portion and the thermal element is filled by a thermally sprayed material and the second portion, which is adapted to the cross-section of the thermal element, partially surrounds and directly contacts same.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | A1 | DE10025588 | May 24, 2000 |
| WO | A1 | WO2002028615 | May 25, 2001 |
| CN | A | CN1430549 | May 25, 2001 |
| JP | A | JP2004510599 | May 25, 2001 |
| EP | A1 | EP1283768 | May 25, 2001 |
| AU | A1 | AU2001286167 | May 25, 2001 |
| US | B2 | US7044191 | Apr 11, 2003 |
International Classification(s)
- 2006 Application Filing Year
- B22D Class
- 238 Applications Filed
- 135 Patents Issued To-Date
- 56.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B22D Class
- 13.68 % this patent is cited more than
- 19 Age
