Apparatus for manufacture of cured in place liner with everted outer impermeable layer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 23, 2006
filing date -
Nov 7, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

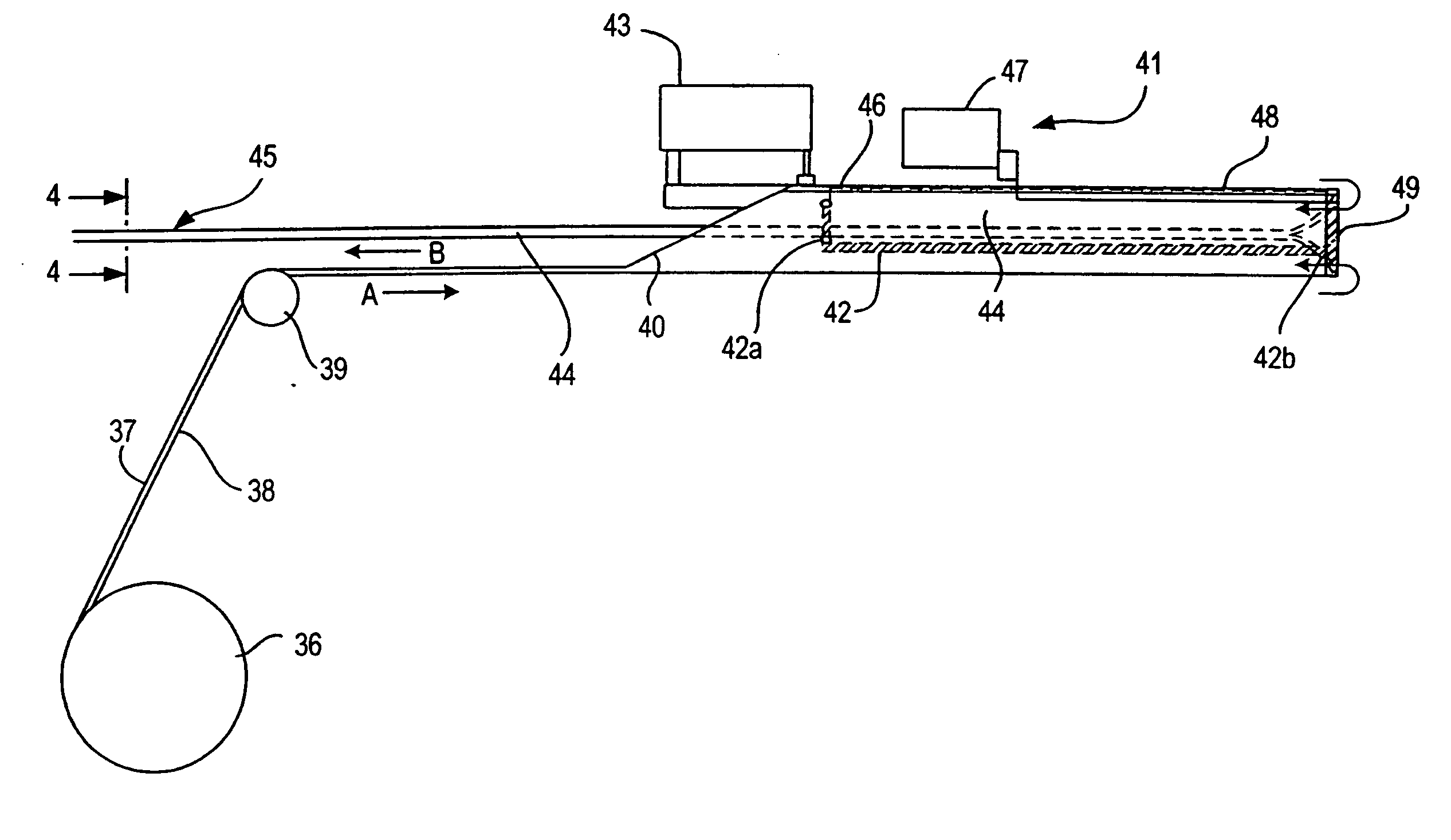

A resin impregnated cured in place liner having an everted outer impermeable coating is provided. A roll of a continuous length of resin impregnable material is formed into a tube. An impermeable film or wrapping is formed into a tube about a tubular former, sealed and continuously everted about the inner tubular member travelling in an opposite direction so that the everted wrapping envelopes the inner tubular member. Alternatively, the inner tubular member may be passed into a stuffer tube having an impermeable tube thereon that is everted onto the moving tubular member to encapsulate the inner tubular member. The inner tubular member may be passed through an open resin impregnation tank to impregnate the impregnable material prior to everting the outer layer thereon. The inner tubular member may have an inner layer of impermeable material bonded thereto. It may be formed into a tube with the impermeable layer on the outside and continuously everted to place the impermeable layer on the inside of the tube.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B29C Class
- 4.08 % this patent is cited more than
- 19 Age
