Platform balance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 6, 2006
filing date -
Dec 4, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

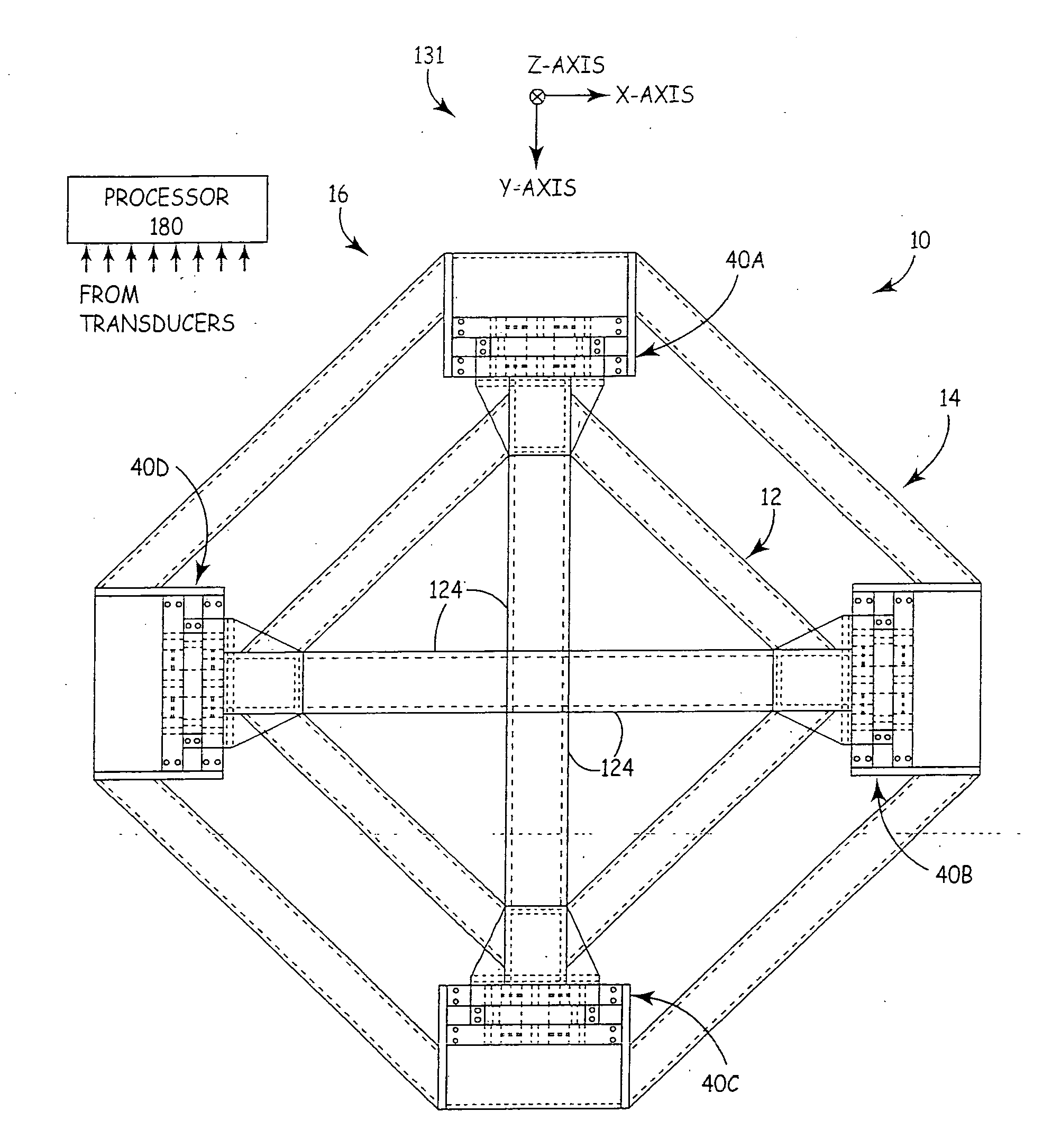

The present disclosure is directed to a platform balance that is suitable for transmitting forces and moments in a plurality of directions. The platform balance is adapted to support a test specimen, such as a large vehicle, in a test environment such as a wind tunnel. The platform balance includes a frame support and at least three spaced-apart transducers coupled to the frame support. Each of the transducers is sensitive about two orthogonal sensed axes. The transducers cooperate to provide signals indicative of forces and moments with respect to at least two orthogonal axes. Each transducer includes a transducer body having a support coupled to a sensor body along an axis of compliance. The sensor body is adapted to deflect about the two orthogonal sensed axes where the sensed axes are mutually orthogonal to the axis of compliance.
First Claim
Other Claims data not available
