Optical apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2006
Grant Date -
Aug 10, 2006
app pub date -
Nov 11, 2002
filing date -
Nov 16, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

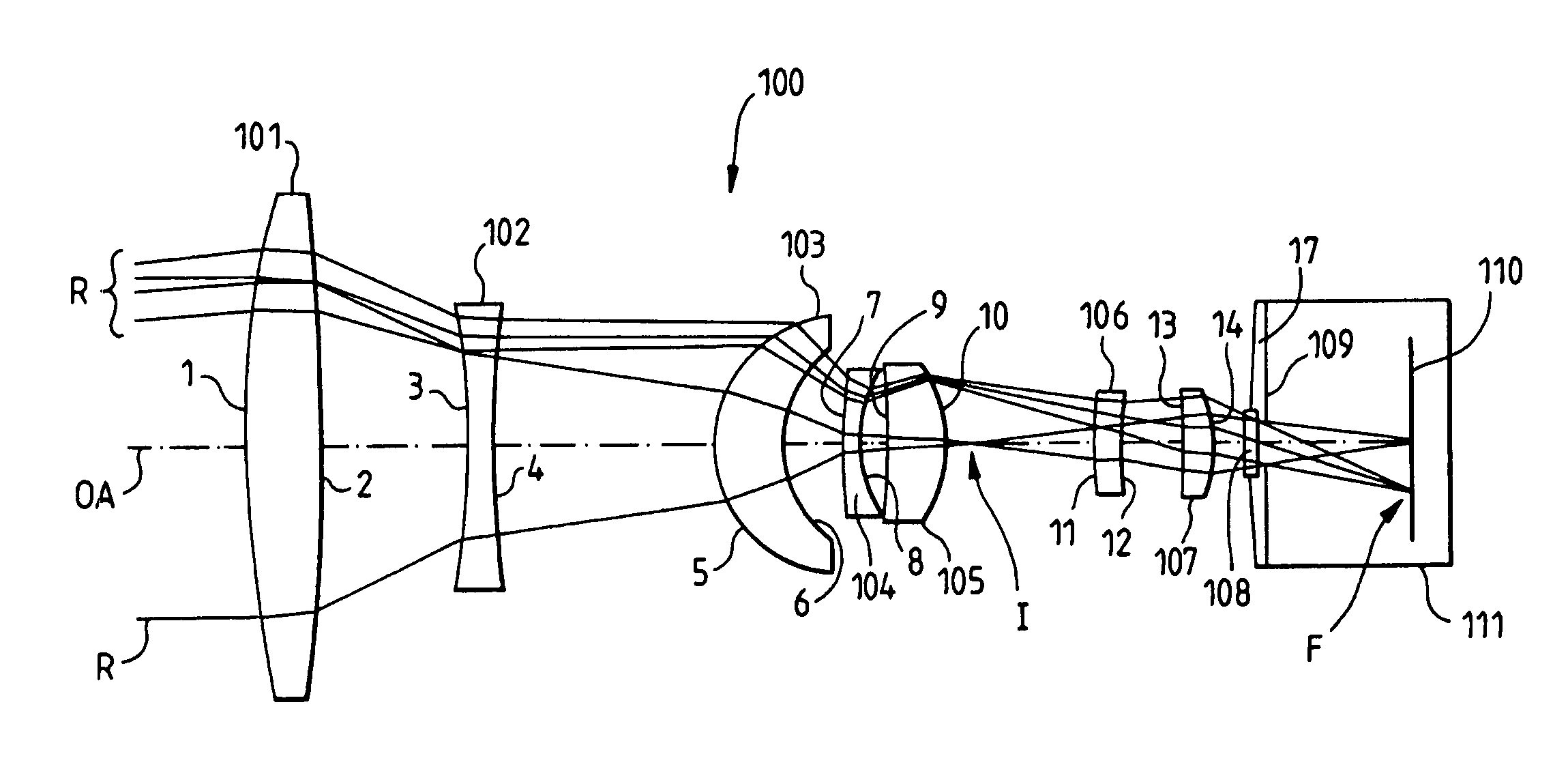

The present invention provides an optical apparatus including an objective lens system for focusing optical radiation from a scene or object into an intermediate image and has at least one lens element which imposes a substantial degree of negative distortion on the intermediate image. The invention also provides a second lens system for focusing optical radiation from the intermediate image into a final image and an aperture stop for limiting the optical radiation forming the final image. The aperture stop is located between the final image region in which the final image is formed or to be formed and the lens element of the second lens system most distant from the final image region.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G02B Class
- 1.76 % this patent is cited more than
- 19 Age
