Method for identifying a plurality of transponders located in a space by a reader having several antennae
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 27, 2006
app pub date -
Sep 26, 2003
filing date -
Oct 2, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

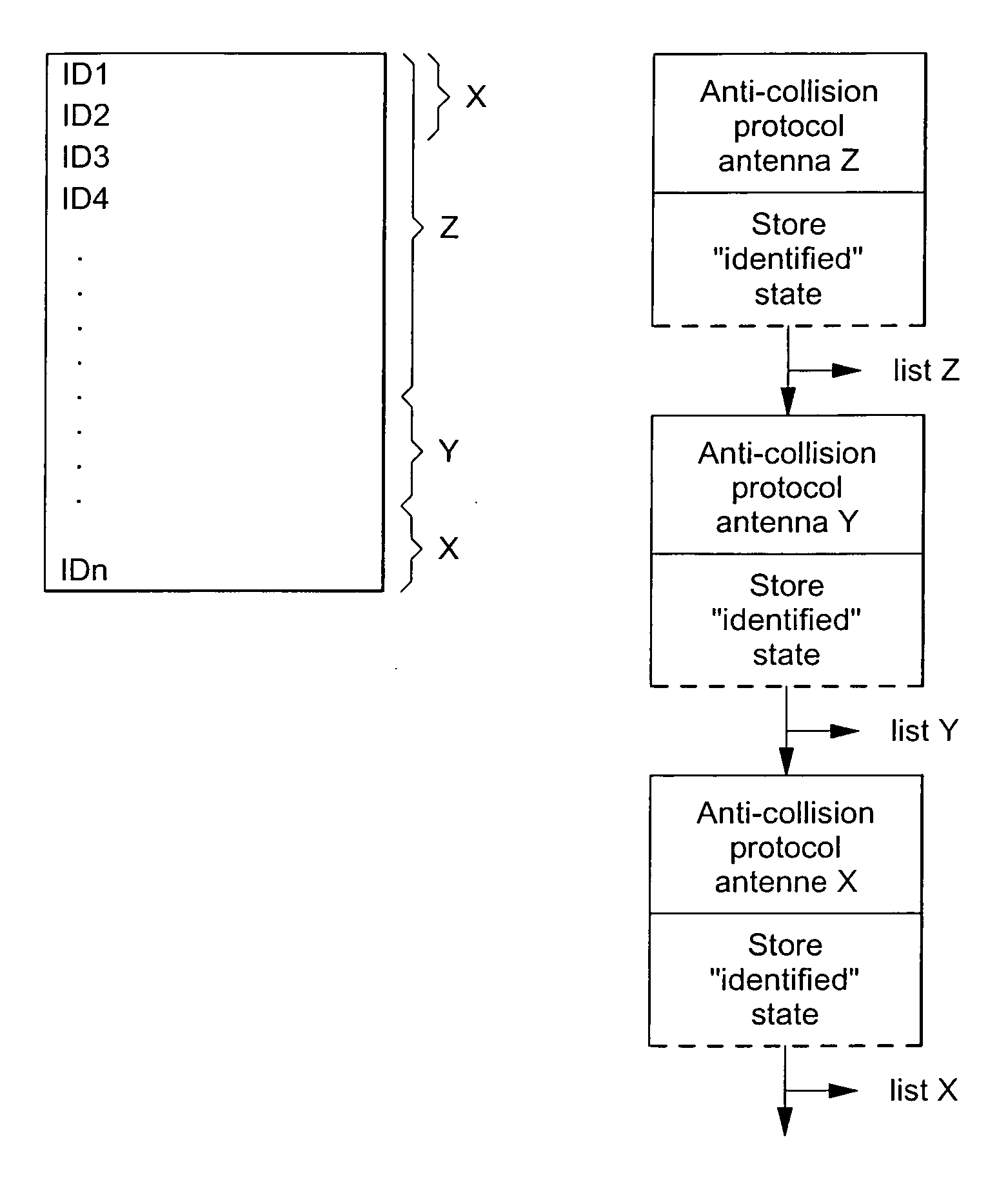

The invention concerns a method for identifying a plurality of passive transponders 6 using a reader comprising several antennae whose detection fields do not merge spatially and/or temporally, said transponders comprising an analogue 34 or digital 52 memory for storing binary information for a certain time interval in the absence of any reader feeding fields. For each antenna, the method sequentially implements an anti-collision protocol during which each identified transponder is set in a 'silent' mode. The method provides for this information to be stored in said memory of each transponder for a time interval including at least the switching period between a first antenna and a second antenna of the reader. This prevents detection of the same transponders by several antennae, which makes the identification method quicker and more efficient.
First Claim
Other Claims data not available
