Microliter scale solid phase extraction devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 27, 2006
app pub date -
Jan 26, 2005
filing date -
Jan 26, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

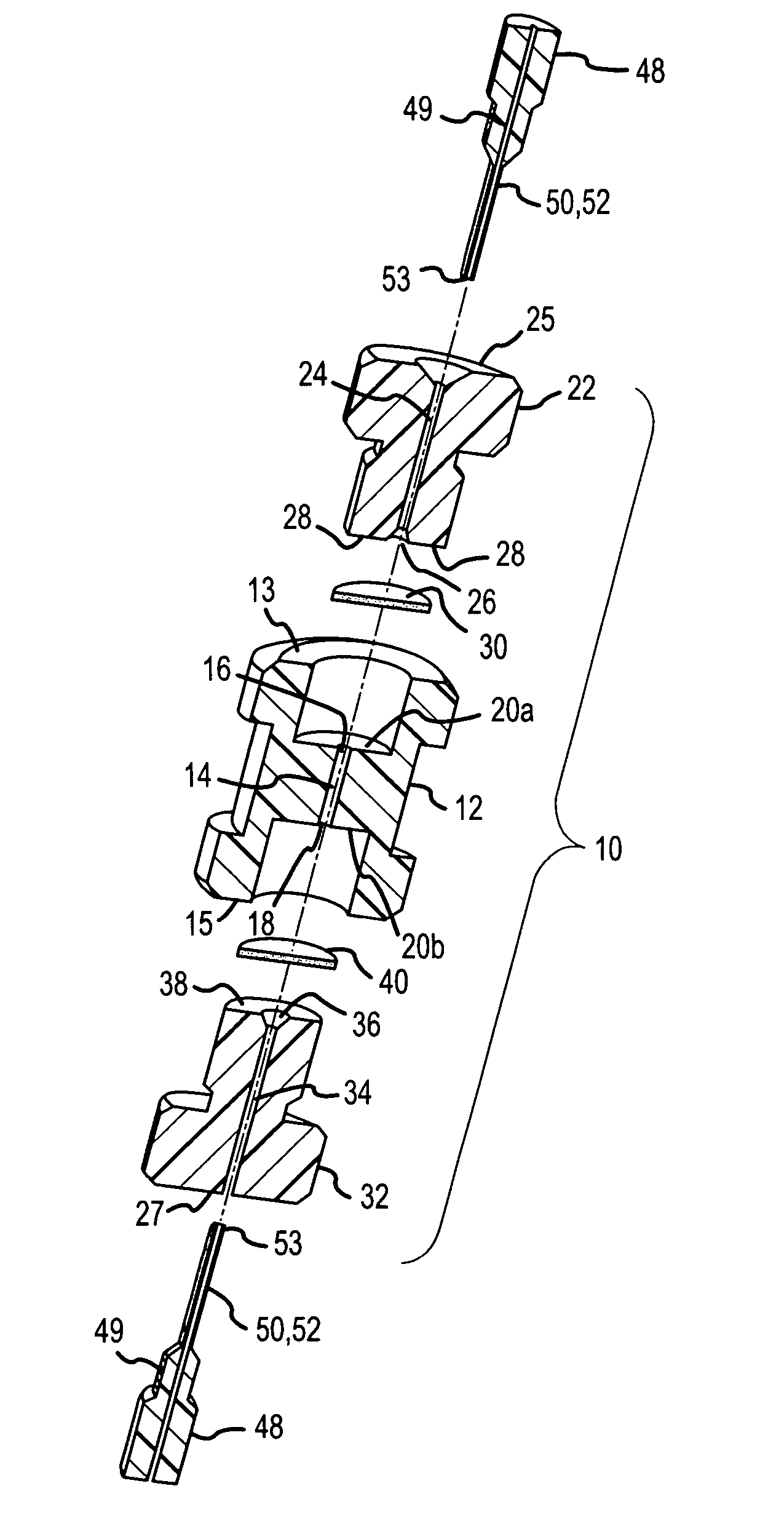

Microliter scale solid phase extraction devices for preparing analytes in microliter volumes are disclosed. A re-useable device is provided in cartridge form that includes a central containment member with a containment bore that holds as little as 1 to 5 .mu.l or less of a solid phase material that binds the analyte. The containment bore is enclosed on either side by a porous membrane that has an inner portion exposed for fluid flow and a peripheral portion that is sealed against fluid flow. The seal is formed by engaging the periphery of the porous membranes between sealing surfaces of the central containment member and corresponding sealing surfaces on first and second conduit assemblies that comprise the remainder of the cartridge. A non-reuseable device is provided in 'chip' form, which includes a porous filter sandwiched between top and bottom wafers each having a plurality corresponding input and output conduits for a plurality of samples.
First Claim
Other Claims data not available
