Papermachine clothing with wear-resistant weave
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 27, 2006
app pub date -
Sep 18, 2003
filing date -
Sep 18, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

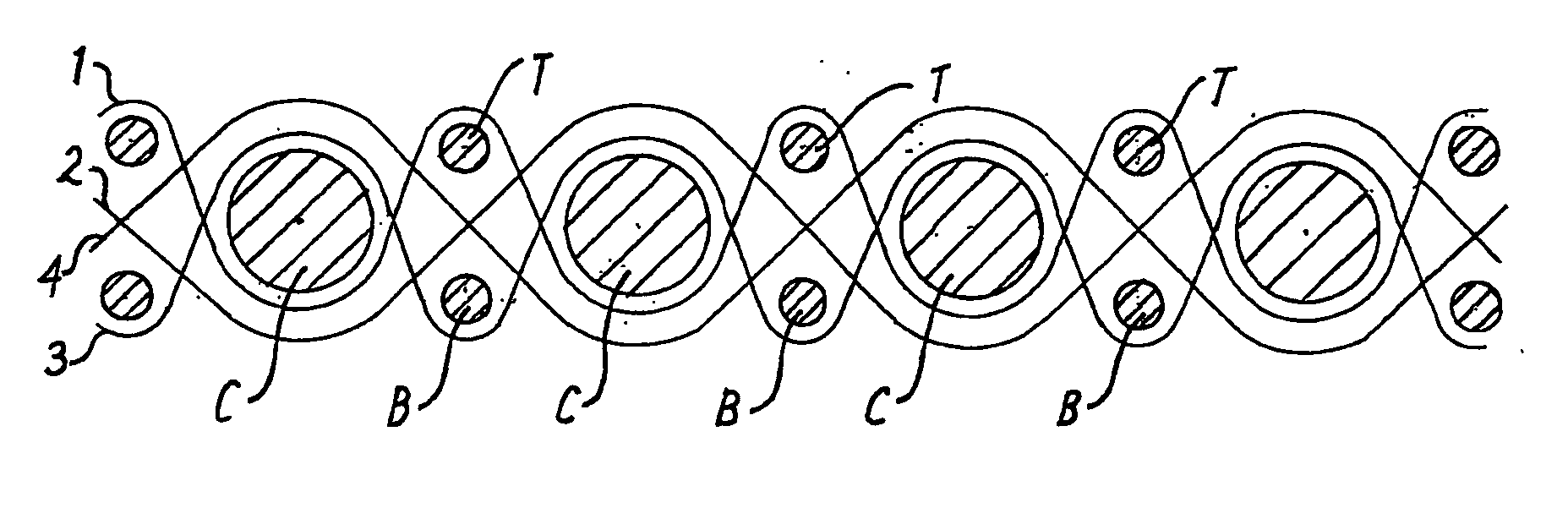

Papermachine clothing having machine direction (MD) yarns and cross-machine direction (CD) yarns interwoven in a repeat pattern, wherein the CD yarns are provided in two systems. The first CD yarn system has upper and lower yarns. The second CD yarn system has a single yarn. The first and second CD systems are provided alternatively throughout the fabric. The MD yarns are also provided in two systems, the first MD yarn system extending in between the upper and lower yarns of the first CD yarn system and over the single yarn of the second CD yarn system. Individual yarns of the second MD yarn system extend over one of the upper of lower yarns of the first CD yarn system and the single yarn of the second CD yarn system. Two adjacent machine direction yarns from different MD yarn systems extend as a pair over the same CD yarn of the second CD yarn system with one of the pair of MD yarns extending above the other of the pair such that the other yarn is protected from abrasion.
First Claim
Other Claims data not available
