RF front-end matching circuits for a transceiver module with T/R switch integrated in a transceiver chip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 22, 2006
app pub date -
Oct 28, 2005
filing date -
Dec 22, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

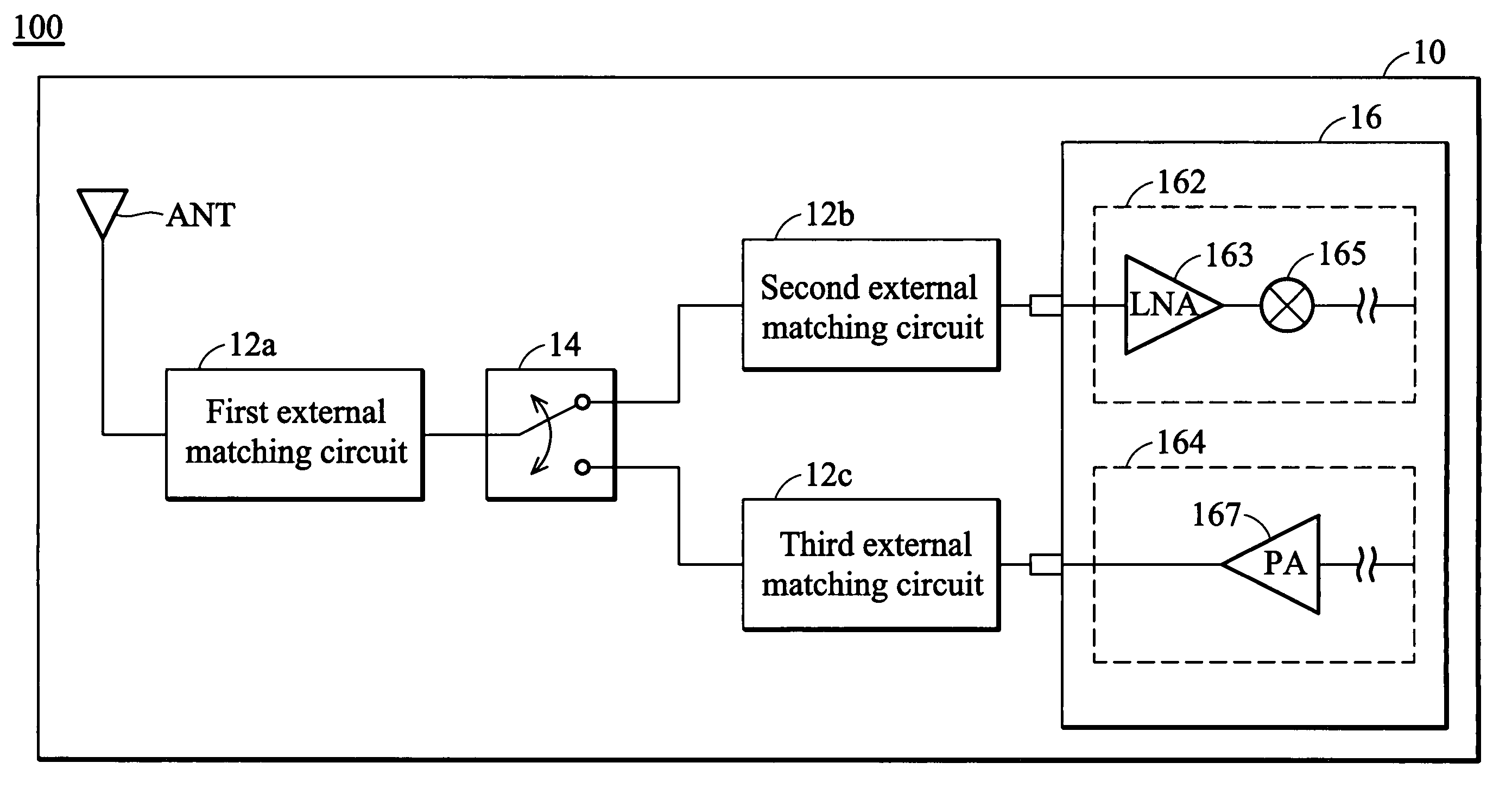

Radio frequency front-end matching circuits suitable for a transceiver module with TR switch integrated in a transceiver chip. The radio frequency front-end transceiver module comprises a radio frequency (RF) front-end device, a transmit/receive (TR) switch, a transmitter, a receiver and an internal matching circuit, in which the TR switch, the receiver, the transmitter and the matching circuit are integrated in one chip. The internal matching circuit is disposed at the first signal transmission path or the second signal transmission path selectively. The internal matching circuit is connected between the TR switch and the receiver when disposed at the first signal transmission path (receiving path) or between the TR switch and the transmitter when disposed at the second signal transmission path (transmitting path), such that the RF front-end device is impedance matched to both the receiver and the transmitter.
