Resin impregnation tower for cured in place liner

Number of patents in Portfolio can not be more than 2000

United States of America Patent

SERIAL NO

11354720

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

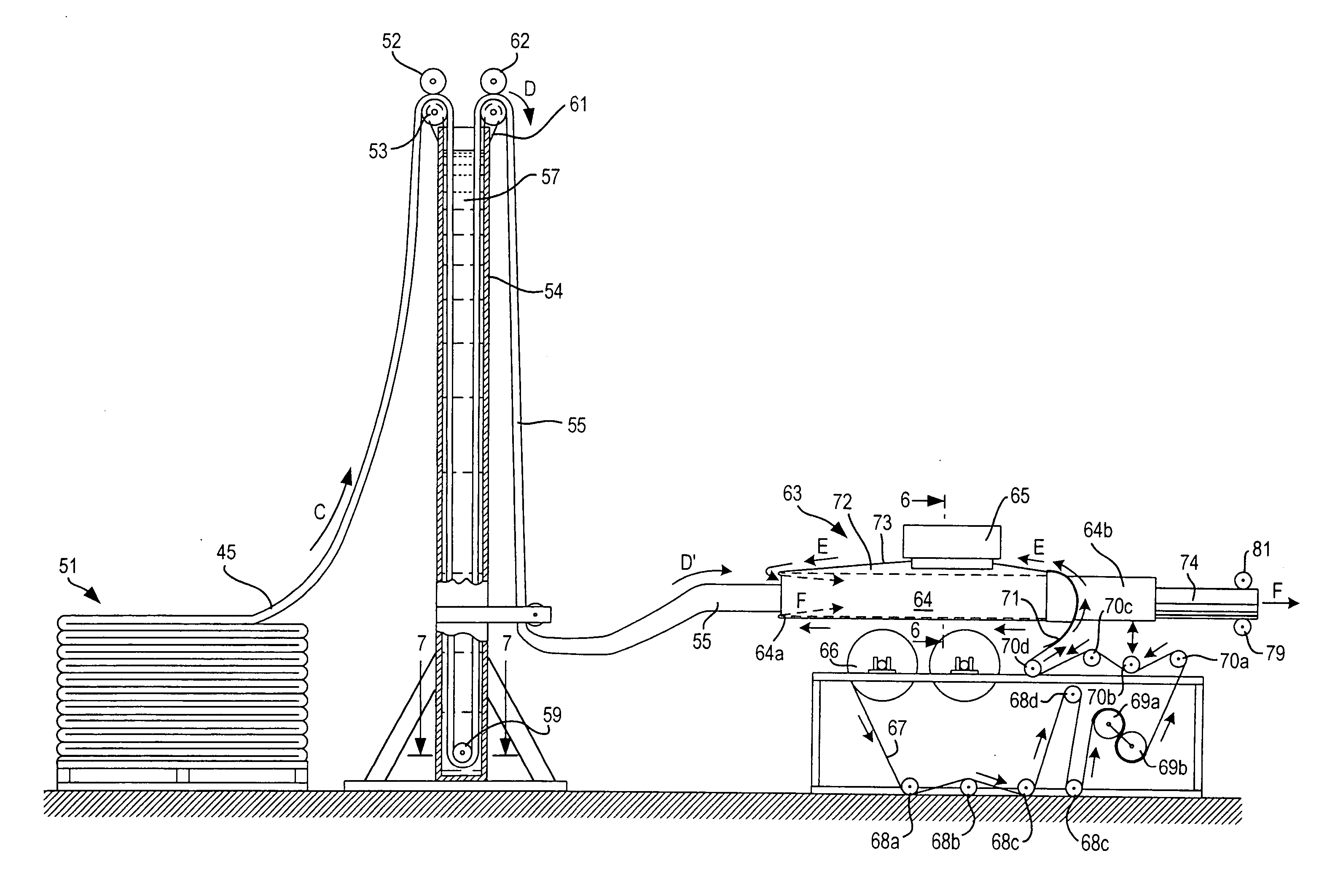

A resin impregnation tower for continuously impregnating the resin impregnable layer of a tubular cured in place liner is provided. The tower is of a height to provide sufficient resin pressure head to impregnate the resin impregnable layer fully. A cured in place liner having at least one layer of resin impregnable material is fed into the top of the tower, drawn down about a roller at the bottom, removed from the top of the tower and then wrapped with an outer impermeable coating. The impregnated liner is suitable for pull-in-and-inflate method of installation or may be inverted. For liners formed with an inner impermeable layer, the liner is suitable for curing with steam.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+
−

Patent Owner(s)

Patent OwnerAddress
INA ACQUISITION CORP2711 CENTERVILLE ROAD SUITE 400 WILMINGTON DE 19808

International Classification(s)

loading....
  • 2006 Application Filing Year
  • B05C Class
  • 462 Applications Filed
  • 185 Patents Issued To-Date
  • 40.05 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20062007200820092010201120122013201420152016201720180255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Driver, Franklin Thomas St. Charles, MO 23 300
Wang, Weiping Ballwin, MO 104 1680
