Variable watt density thermoelectrics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 15, 2006
app pub date -
Dec 9, 2004
filing date -
Dec 9, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

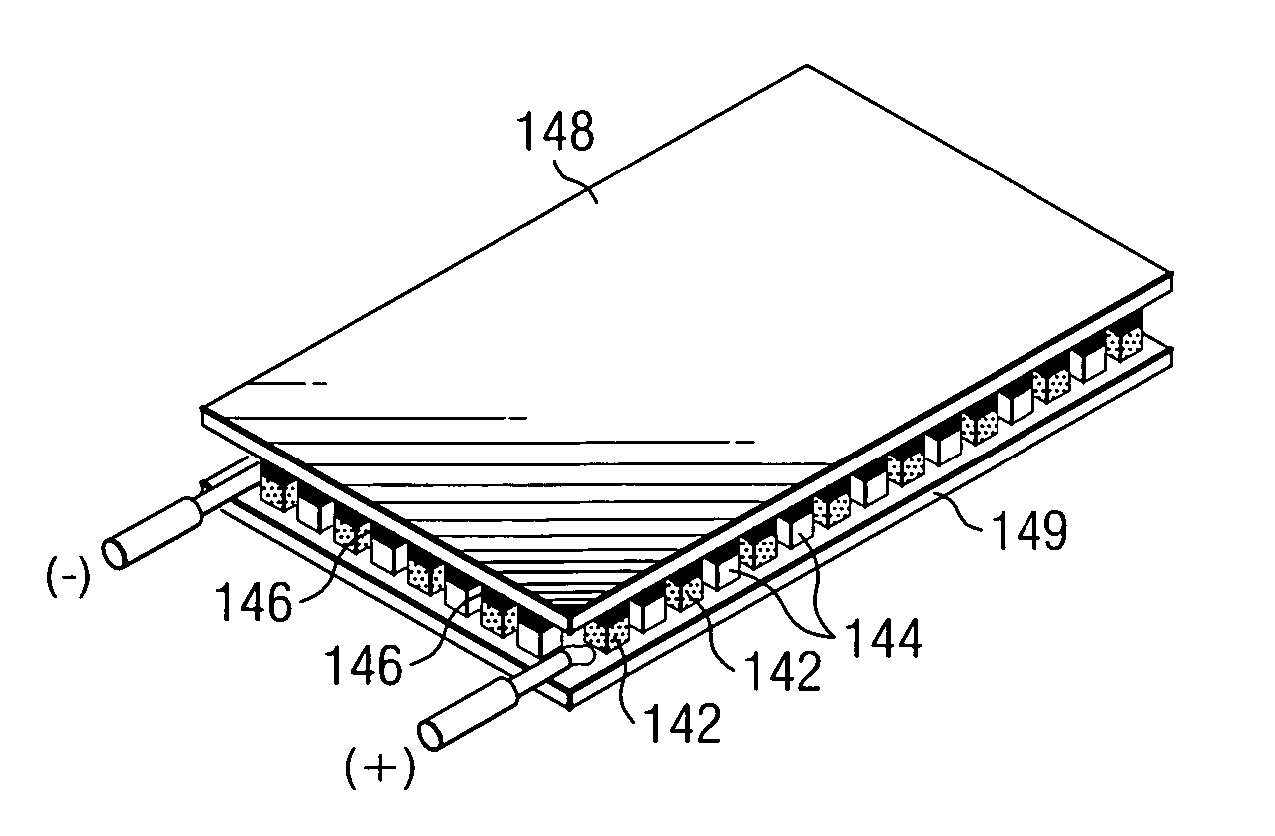

A thermoelectric device is provided that includes a top plate with surface including a first and second portion. A first plurality of thermoelectric elements are coupled to the first portion, and a second plurality of thermoelectric elements are coupled to the second portion. A base plate is coupled to the first and second plurality of thermoelectric elements. The first and second plurality of thermoelectric elements are operable to transfer thermal energy from the top plate to the base plate when an electrical current is passed through the first and second plurality of thermoelectric elements. The second plurality of thermoelectric elements receives a higher electrical current density than the first plurality of thermoelectric elements, and the second plurality of thermoelectric elements transfer more thermal energy per unit area of the top plate than the first plurality of thermoelectric elements.
