Composite cargo door/ramp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 8, 2007
Grant Date -
Feb 9, 2006
app pub date -
Aug 5, 2004
filing date -
Aug 5, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

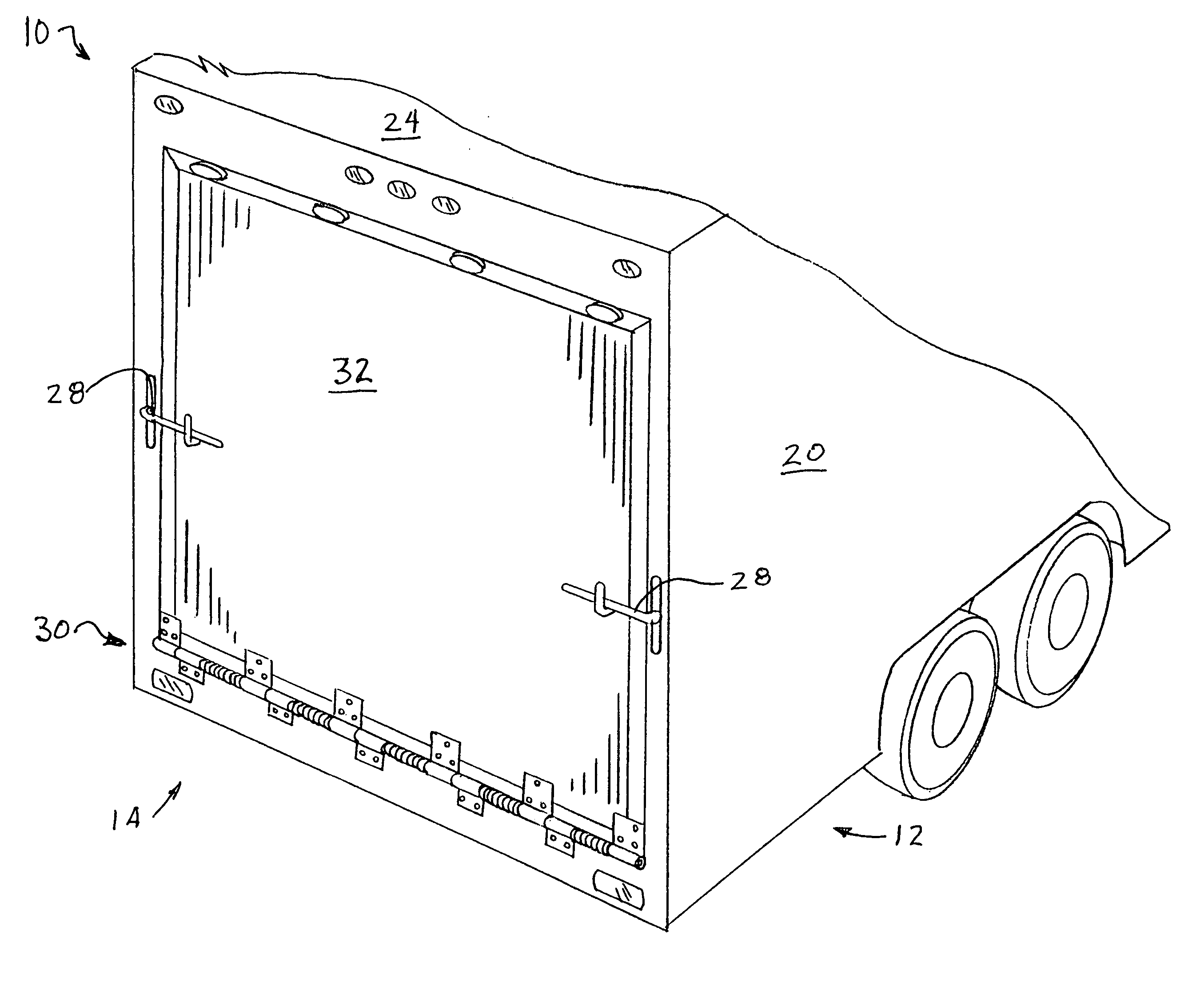

A cargo enclosure including a floor having a plurality of edges including a first edge, a second edge and a third edge. At least two sidewalls, including a first sidewall and a second sidewall, the first sidewall connected to the first edge of the floor, the second sidewall connected to the second edge of the floor. At least one hinge is connected along the third edge of the floor, the at least one hinge being rotatable about an axis. A composite door is connected to the at least one hinge, the door having a closed position and the hinge having a plurality of torsion springs rotatable about the axis, the plurality of torsion springs biasing the composite door toward the closed position.
First Claim
Other Claims data not available
