Residential dry sprinkler design method and system with wet main pipe and fire resistant plastic dry branch pipes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 2, 2006
app pub date -
Jul 27, 2004
filing date -
Jul 27, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

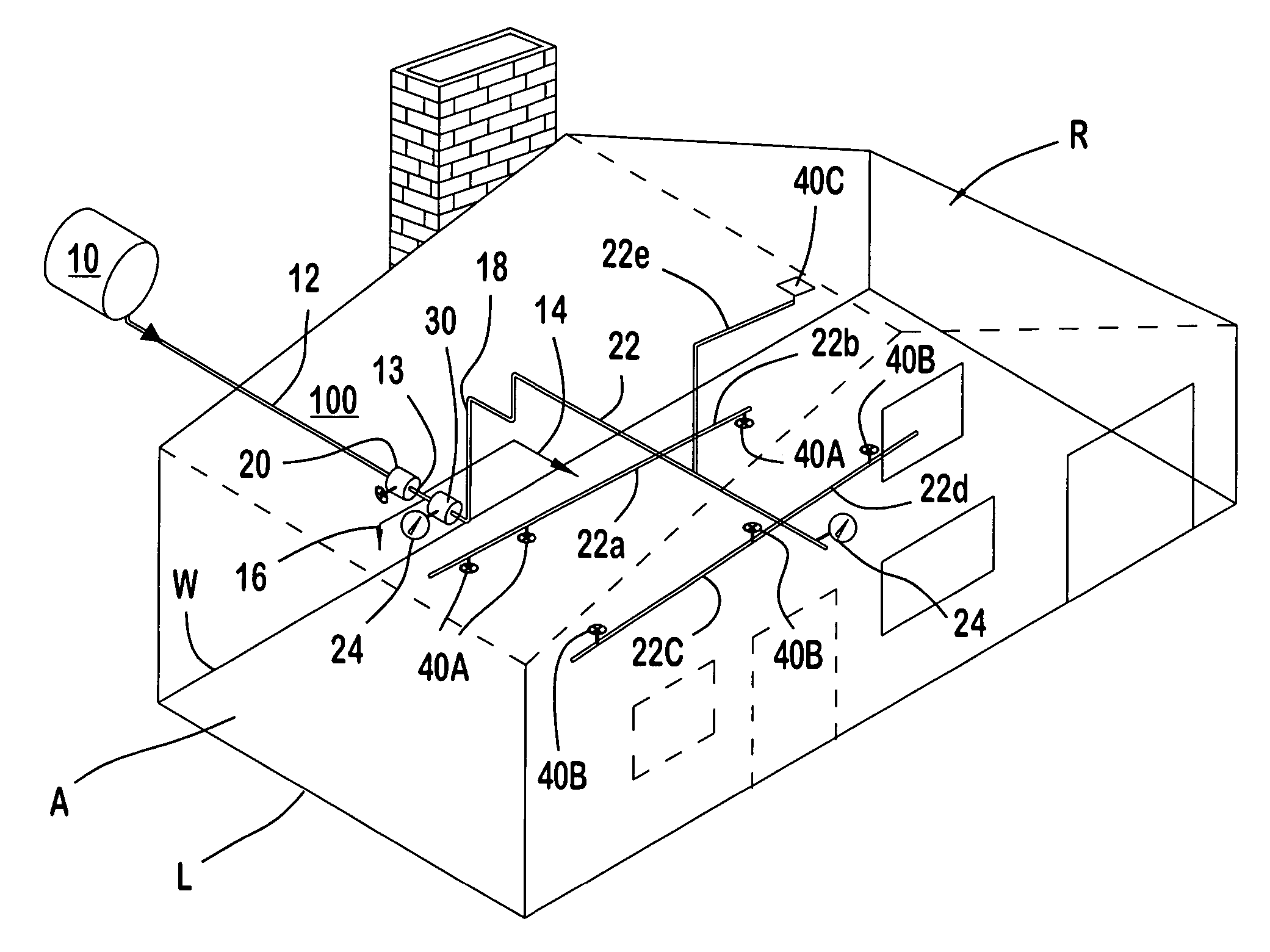

A method of designing a residential fire protection system in a residential dwelling unit with fire-resistant plastic components and non-fire-resistant plastic components are shown and described. The residential dwelling unit has a plurality of compartments as defined in the 2002 National Fire Protection Association Standards 13, 13D, and 13R. The method can be achieved by: specifying a quantity and location of residential fire sprinklers in a residential fire sprinkler piping network having a main pipe filled with liquid and a branch pipe connected to the residential fire sprinklers filled with a gas to protect the plurality of compartments; and specifying the branch pipe as a fire-resistant plastic branch pipe with an opening having a cross-sectional area different than the cross-sectional area of the main pipe. Various aspects of the invention are also shown and described.
First Claim
Other Claims data not available
