Color-filter array for an optical-image sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 29, 2005
app pub date -
Apr 14, 2005
filing date -
Nov 15, 2001
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

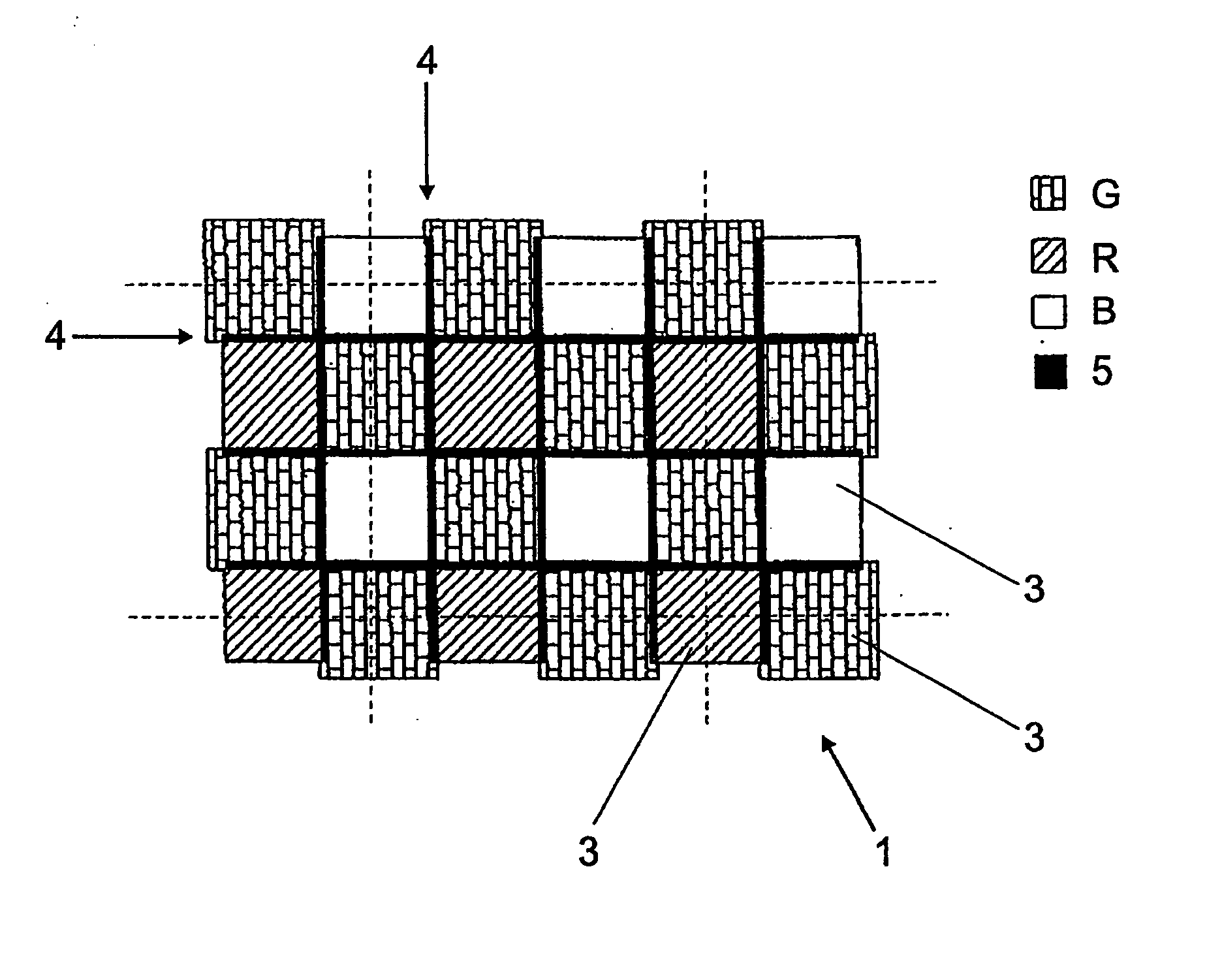

A color filter array for an optical image sensor comprising pixels that are arranged in a matrix or a line, each pixel being connected to an electronic circuit for converting the information concerning the luminosity of each pixel into electric signals. A rectangular color filter of a predetermined color is placed over each pixel and several pixels that are directly adjacent form pixel by pixel with color filters of different colors a base cell, a plurality of said base cells together constituting the matricial or linear image sensor. The aim of the invention is to create a color filter array for an optical image sensor, which reliably prevents the distortion of the color signals by unfiltered white light. The object is achieved by making the border regions between adjacent color filters of different color significantly less permeable to light as a result of an overlap or additional non-transparent strips.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A2 | WO2003047273 | Nov 14, 2002 |
| AU | A1 | AU2002350394 | Nov 14, 2002 |
| EP | B1 | EP1444736 | Nov 14, 2002 |
| TW | A | TW200300604 | Nov 15, 2002 |
International Classification(s)
- 2005 Application Filing Year
- H04N Class
- 6314 Applications Filed
- 3539 Patents Issued To-Date
- 56.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04N Class
- 2.62 % this patent is cited more than
- 20 Age
