Ignition device for internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2007
Grant Date -
Dec 29, 2005
app pub date -
May 18, 2005
filing date -
May 21, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

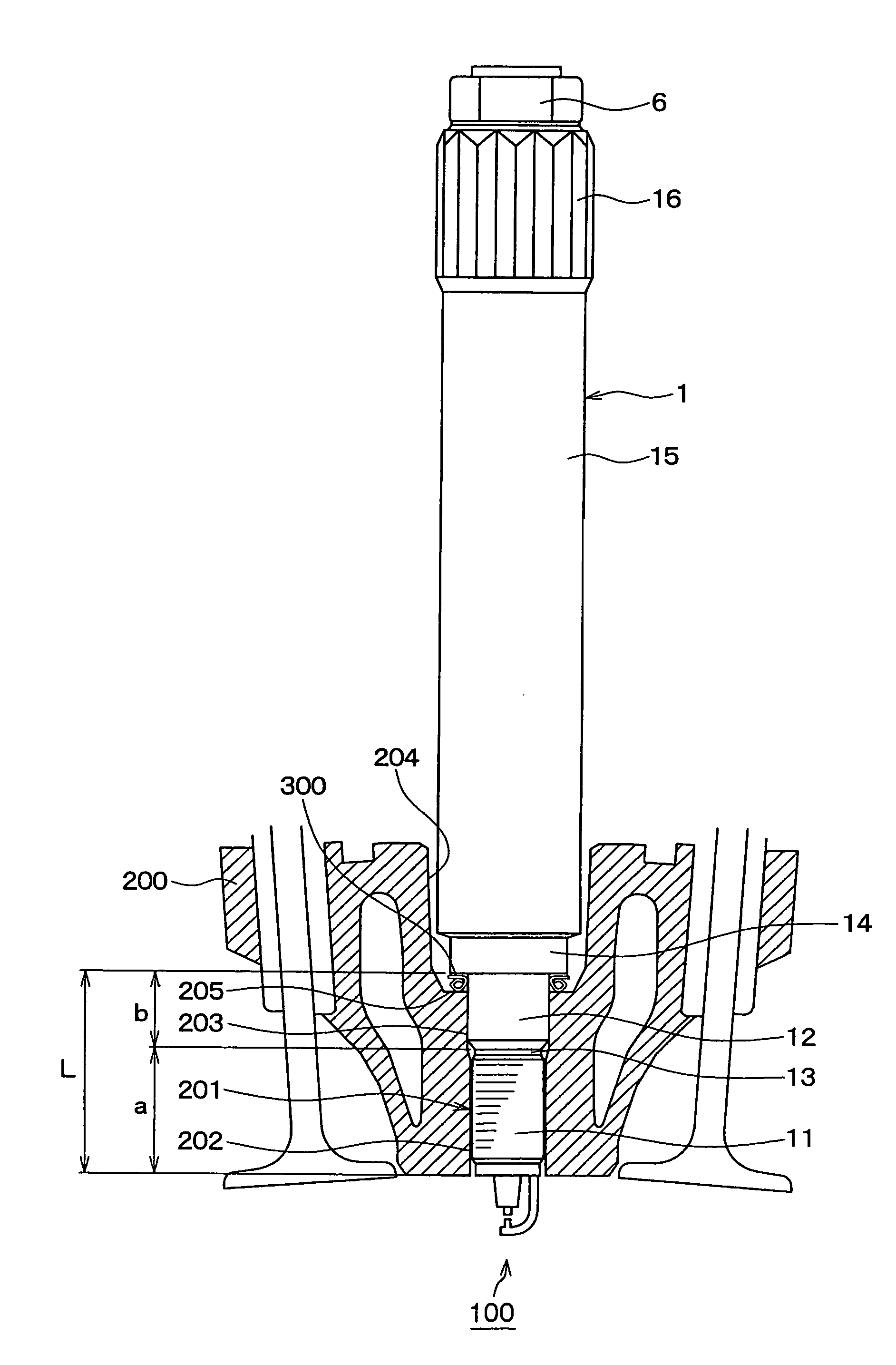

An ignition device for an internal combustion engine has a spark plug, an ignition coil, a housing and a mounting portion. The spark plug is for discharging a current to ignite an air-fuel mixture in a combustion chamber of the internal combustion engine. The ignition coil is for supplying the current to the spark plug. The housing encloses the spark plug and the ignition coil therein. The housing has a mounting portion to be disposed in a mounting hole provided in a cylinder head of the internal combustion engine. The mounting portion includes a screw portion a non-screw portion. The screw portion is to be screw-fastened to the mounting hole. The non-screw portion is not to be screw-fastened to the mounting hole.
First Claim
Other Claims data not available
