Printing plate cartridge for a press and press
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2008
Grant Date -
Dec 1, 2005
app pub date -
May 5, 2005
filing date -
May 5, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

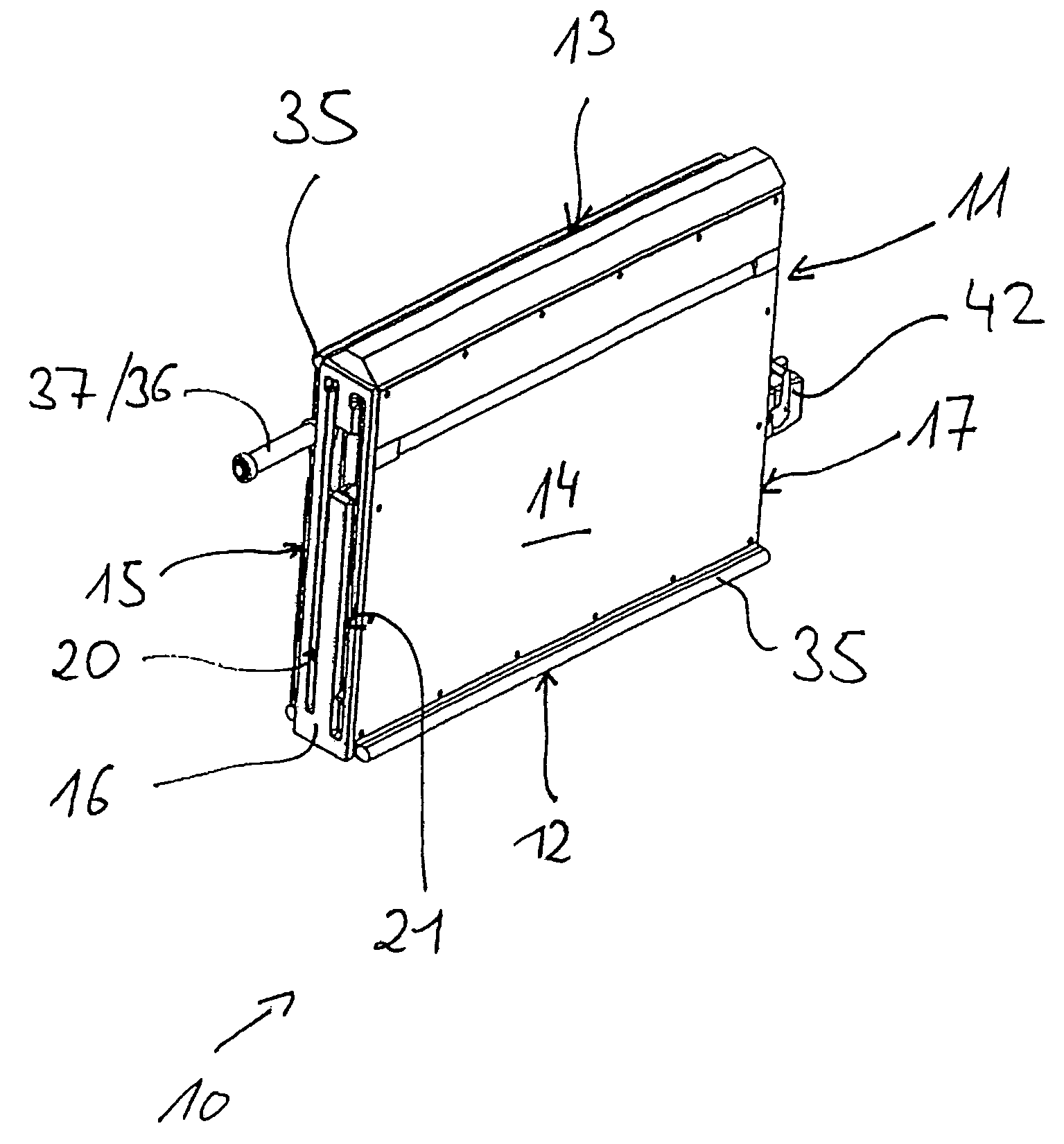

A printing plate cartridge for a press including a housing having an old printing compartment for holding a printing plate to be removed during a printing plate change and a new printing plate compartment for holding a printing plate to be mounted on a form cylinder of a press during a printing plate change. A printing plate to be mounted on the form cylinder is removable from the new printing plate compartment via a first opening for feeding to the form cylinder during a printing plate changing operation. A printing plate to be removed from the form cylinder is capable of being fed to the old printing plate compartment via the first opening during a printing plate changing operation.
First Claim
Other Claims data not available
