Miniature ultrasonic transducer with focusing lens for intracardiac and intracavity applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 12, 2005
filing date -
Oct 15, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

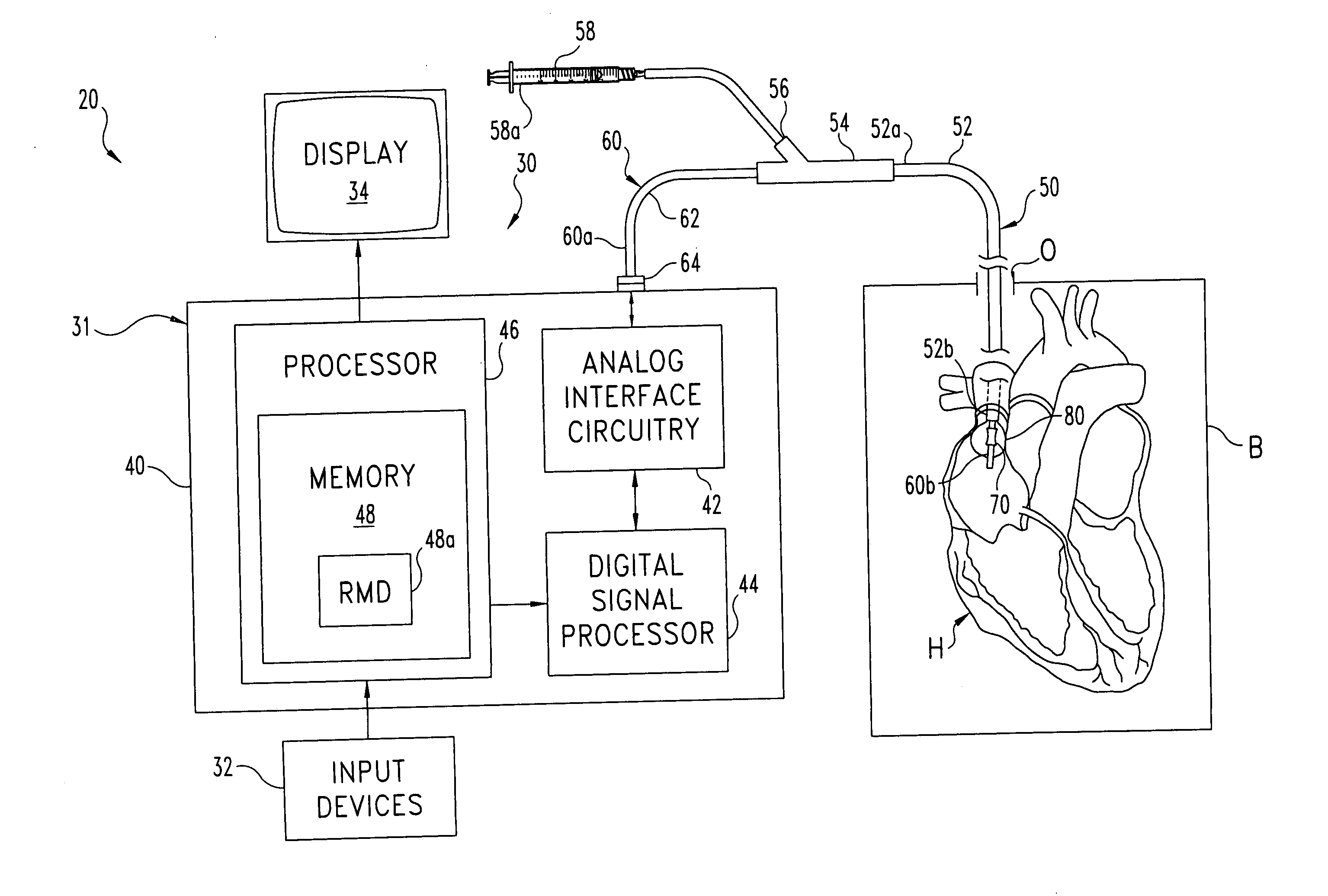

One embodiment of the present invention includes advancing a transducer device through a passageway of a patient's body to a target location inside the body. The transducer device includes a piezoelectric element and an ultrasonic lens. The ultrasonic lens includes an inner surface defining a passage extending along a reference axis. The piezoelectric element is received in this passage and is acoustically coupled to the inner surface of the lens. The ultrasonic lens includes an outer surface opposite the inner surface, the outer surface defines a shape with a concave profile. While positioned at the target location, the transducer device generates ultrasonic energy and ablates tissue along at least a portion of a circumference around the transducer device at the target location by focusing the ultrasonic energy with the lens.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US7112196 | Oct 15, 2003 |
| US | A1 | US20040254471 | Oct 15, 2003 |
| US | B2 | US7628785 | Jun 14, 2004 |
| WO | A2 | WO2006028530 | May 23, 2005 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 123 Citation Count
- A61B Class
- 87.62 % this patent is cited more than
- 20 Age
