Asymmetric retaining wall block
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 3, 2005
app pub date -
Apr 30, 2004
filing date -
Apr 30, 2004
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

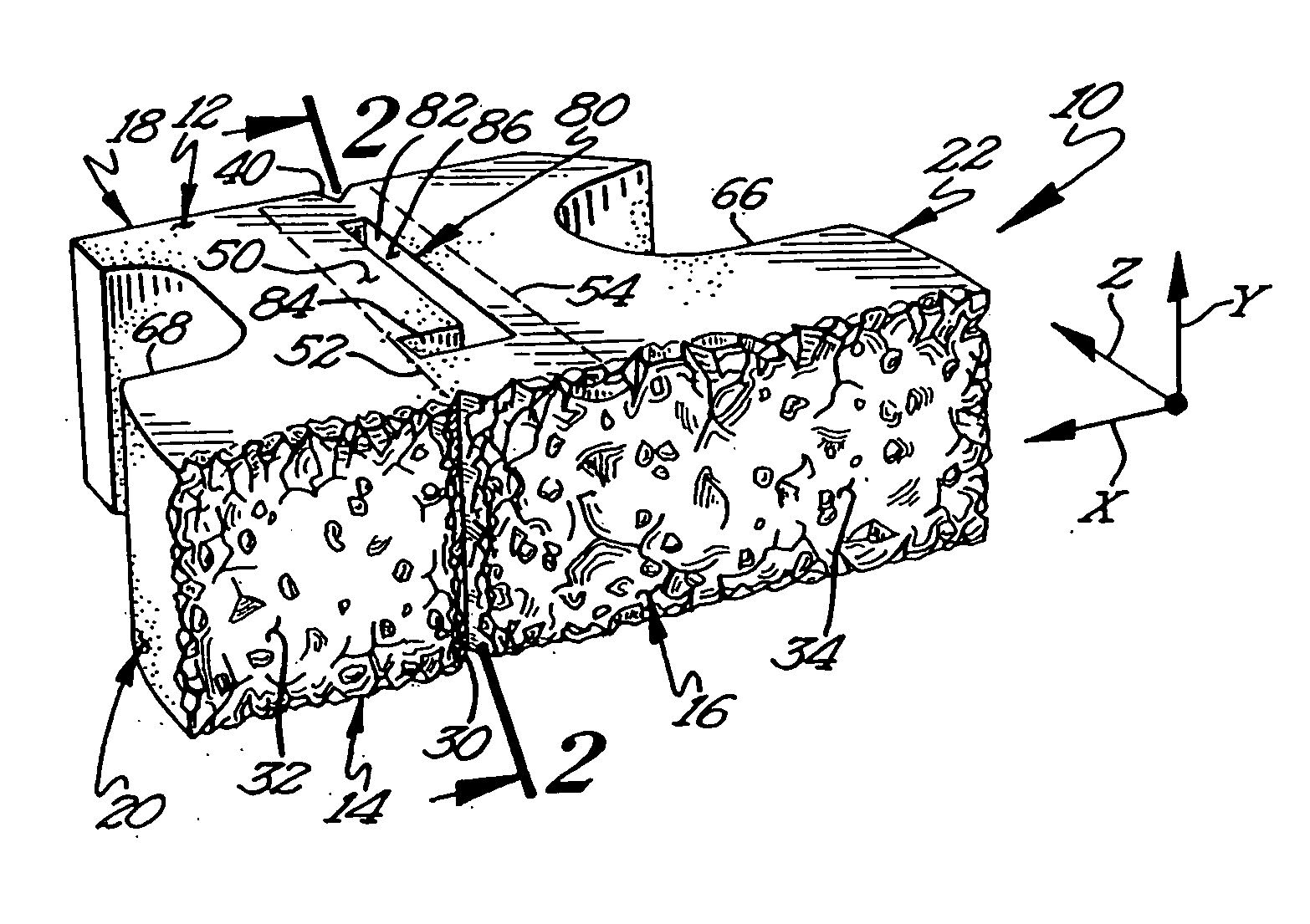

A block suitable for use in a retaining wall, the block has a top surface, a bottom surface, a front surface, a rear surface, and opposed sides. The block includes a weakened section that extends substantially from the front to the rear surface, and which is configured and arranged to facilitate splitting the block into two smaller blocks. The weakened section can take the form of one or more slots that are generally situated within the body of the block and one or more grooves located at the front and rear surfaces, respectively. The groove at the front surface of the block is configured and arranged to simulate a joint between two adjacent blocks. Preferably, the front groove is formed by a core that modifies the block as it is removed from the mold in which it was cast. The block may include one or more projections and/or positioning elements that extend from the block in a generally vertical direction, and which are configured and arranged to engage a block in an adjacent course of blocks.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
MORTARLESS TECHNOLOGIES LLC | 325 ALLIANCE PLACE N E ROCHESTER MN 55906 |
International Classification(s)

- 2004 Application Filing Year
- E04B Class
- 560 Applications Filed
- 220 Patents Issued To-Date
- 39.29 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Price, Raymond R | Rochester, MN | 43 | 756 |
# of filed Patents : 43 Total Citations : 756 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 11 Citation Count
- E04B Class
- 60.07 % this patent is cited more than
- 20 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
