Surface structures and methods thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 5, 2008
Grant Date -
Oct 27, 2005
app pub date -
Jun 8, 2005
filing date -
Jul 31, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

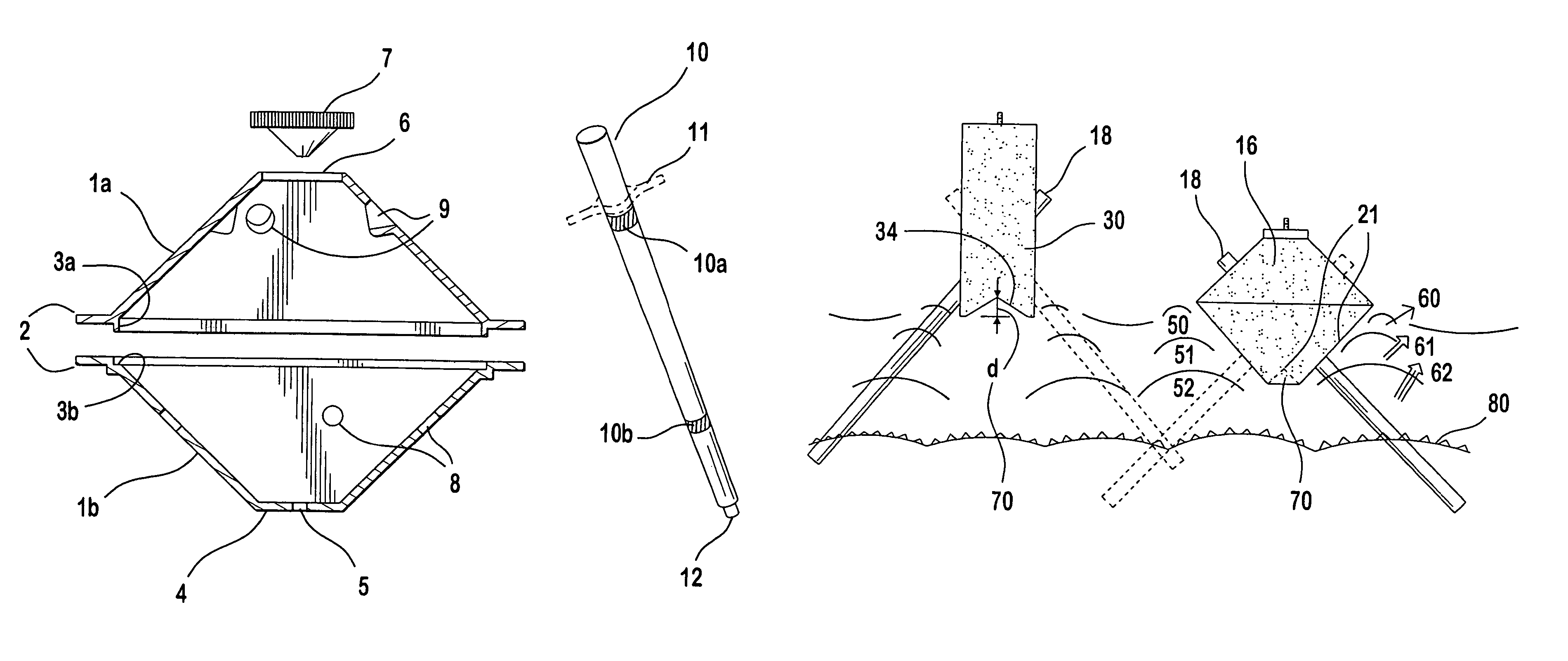

A novel foundation system, method of manufacture and method of implementation are disclosed, comprising a simplified cast structure/pile combination advantageously shaped for selective positioning in different soil conditions to become a supporting foundation. In at least one aspect, the shape comprises a cavity or shaped recess that is initially empty, and operable to accept soil displaced by soil heave. The cavity preferably is configured to have a depth estimated to be equal to or greater that an estimated vertical heave displacement of a given site soil, in order to minimize soil heave displacement of the cast structure/pile combination. In at least one other aspect, the shape comprises a portion configured to cleave soil if the soil heaves.
First Claim
Other Claims data not available
